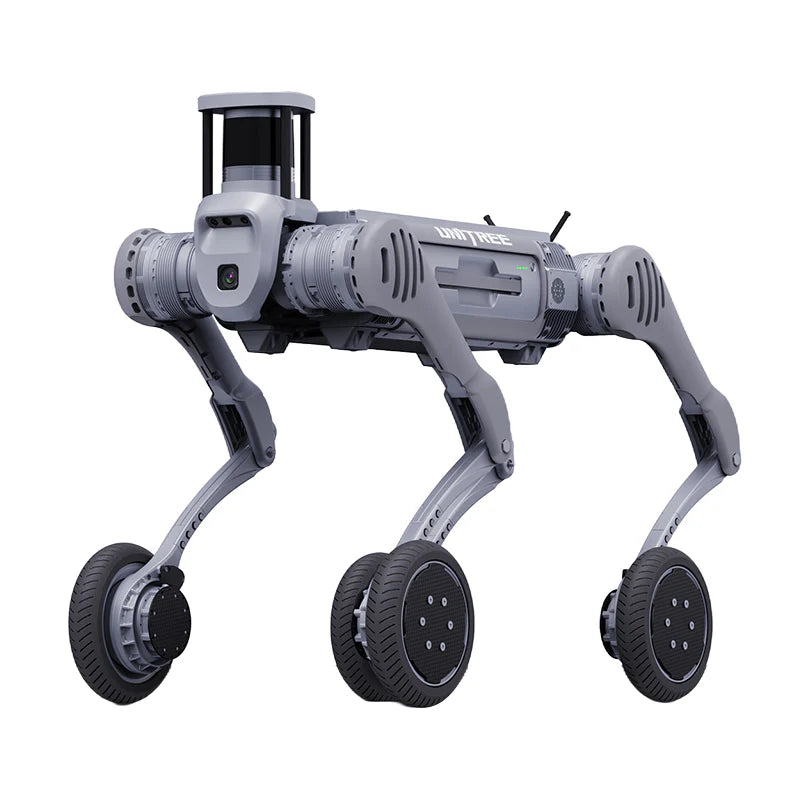

Unitree B2-W
Industrial Wheeled-Leg Quadruped Robot
Unitree B2-W Industrial Wheeled-Leg Robot in Canada
The Unitree B2-W combines powered wheels with articulated legs to support efficient long-distance movement and mobility across varied terrain. It is a configurable industrial robot platform whose performance, computing and application functions vary by selected configuration.
Wheeled-Leg Mobility
Replaceable Wheeled Feet for Extended Operational Range
The B2-W uses replaceable wheeled feet to combine efficient rolling on suitable surfaces with the terrain adaptability of articulated legs. This design supports longer-distance mobility while retaining the ability to negotiate varied ground conditions.
Flexible Terrain Mobility
Engineered to Move Across Varied Terrain
Coordinated perception and motion control help the B2-W maintain balance across stairs, slopes and uneven surfaces. Its articulated leg structure supports movement over grass, stone and gravel paths, while its powered wheels improve efficiency on suitable routes.
Endurance and Efficiency
Long-Distance Mobility with Industrial Payload Capacity
Published B2-W figures include a maximum range of 25 km with a 40 kg load and an approximate maximum unloaded range of 30 km. Actual performance varies by configuration and application scenario.
*The 15 km/h maximum speed and 25 km maximum range with a 40 kg load are associated with special configurations. Practical operating speed is limited for safety, and actual results vary by configuration and application scenario.
Technical Overview
Unitree B2-W Specifications
Manufacturer-listed parameters for configuration planning and application assessment.
| Standing Dimensions | ≈1098 × 550 × 758 mm |
|---|---|
| Lying-Prone Dimensions | ≈950 × 550 × 450 mm |
| Weight | ≈85 kg total weight, battery included |
| Battery Capacity | >2 kWh; voltage 58 V |
| Maximum Speed | 15 km/h [1] |
| Endurance with 40 kg Load | Maximum range 25 km [2] |
| Endurance without Load | Maximum range ≈30 km |
| Maximum Standing Load | 120 kg |
| Continuous Walking Load | >40 kg |
| Wheel Diameter | 225 mm |
| Maximum Wheel Speed | 50 rad/s |
| Maximum Wheel Torque | 40 N·m |
| Continuous Stair Climbing | 20–25 cm steps |
| Climbing Ability | Forward ascent and descent on 40 cm steps |
| Operating Temperature | −20°C to 55°C |
| Climbing Angle | >45° |
| Ingress Protection | IP67 |
| Standard Control and Perception Computing | Intel Core i5 for platform functions and Intel Core i7 for user development |
| Optional Computing | Intel Core i7 or NVIDIA Jetson Orin NX, with up to three optional devices depending on configuration |
[1] and [2] are achieved in special configurations; practical operating speed is limited for safety. Published parameters vary by configuration and application scenario. Some functions require human operation or secondary development, and available capabilities vary by configuration. Confirm the ingress protection and environmental limits of the complete configured system, including optional equipment and payloads, before deployment. This product is a civilian robot and must not be dangerously modified or operated in a hazardous manner.
Unitree B2-W Canada
A Configurable Wheeled-Leg Robot Platform for Industrial Mobility
The Unitree B2-W is designed for projects requiring efficient ground movement across a combination of hard surfaces, slopes, stairs and rough paths. Its wheeled-leg architecture, payload capacity and configurable computing options make it suitable for evaluation in industrial mobility, mixed-terrain operations and secondary-development projects.
Configuration Support for Canadian Organizations
SpeedyDrone Canada can help organizations assess the B2-W according to intended terrain, payload, operating environment, computing requirements and integration needs. Functions and available hardware vary by configuration, and some application capabilities require human operation or secondary development.
- Industrial mobility
- Long-distance ground operations
- Mixed-terrain operations
- Secondary development
- System integration
Frequently Asked Questions
Unitree B2-W FAQ
What is the Unitree B2-W?
How fast can the Unitree B2-W travel?
What is the maximum range of the Unitree B2-W?
How much weight can the Unitree B2-W carry?
Can the Unitree B2-W climb stairs?
What ingress-protection rating does the Unitree B2-W have?
What computing hardware is available for the Unitree B2-W?
Does every Unitree B2-W function operate autonomously?
Where can Canadian organizations discuss a Unitree B2-W configuration?
Plan Your Unitree B2-W Configuration
Tell SpeedyDrone Canada about your intended terrain, payload, operating environment and integration requirements so the appropriate B2-W configuration can be assessed.
