Enterprise payload planning · Canada
Two payloads are useful only when the second stream changes the mission.
Single protects simplicity and measurement focus. Dual supports simultaneous payloads—but tightens mass, clearance, power and acceptance-test requirements.
Quick answer
Use the single downward connector when one primary sensor defines the deliverable, especially for measurement-sensitive mapping or LiDAR. Use the dual downward connector when two simultaneous payload streams eliminate a second flight or enable a coordinated observe-and-act workflow and each payload fits DJI's published 950 g-per-mount limit.
Do not assume dual is a no-cost upgrade. DJI says P1 or L2 mapping accuracy is reduced when another payload shares the dual connector. Connector availability, exact payload combination, firmware, mass, power and output must be confirmed before deployment.
Request a Matrice 400 Payload Architecture ReviewProduct references
Explore the aircraft and dual-gimbal configuration.
Review the Matrice 400 platform and the dedicated Dual Gimbal Connector before building a two-payload configuration.

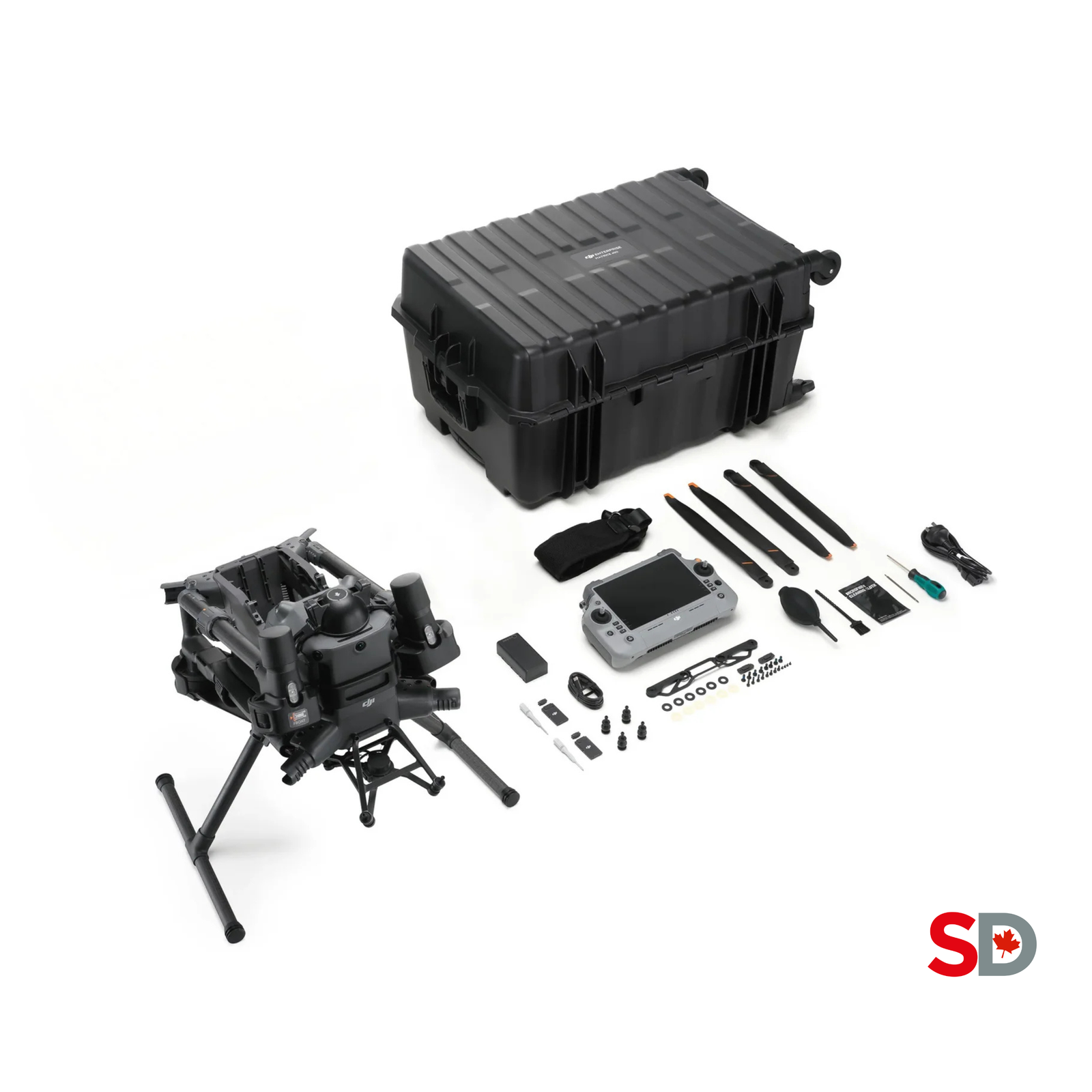

DJI Matrice 400 SP Plus Combo
The Matrice 400 SP Plus Combo includes the aircraft, DJI RC Plus 2 Enterprise and core package accessories. TB100 Intelligent Flight Batteries, the BS100 Battery Station and mission payloads are selected separately.
Open Matrice 400 Product Listing →

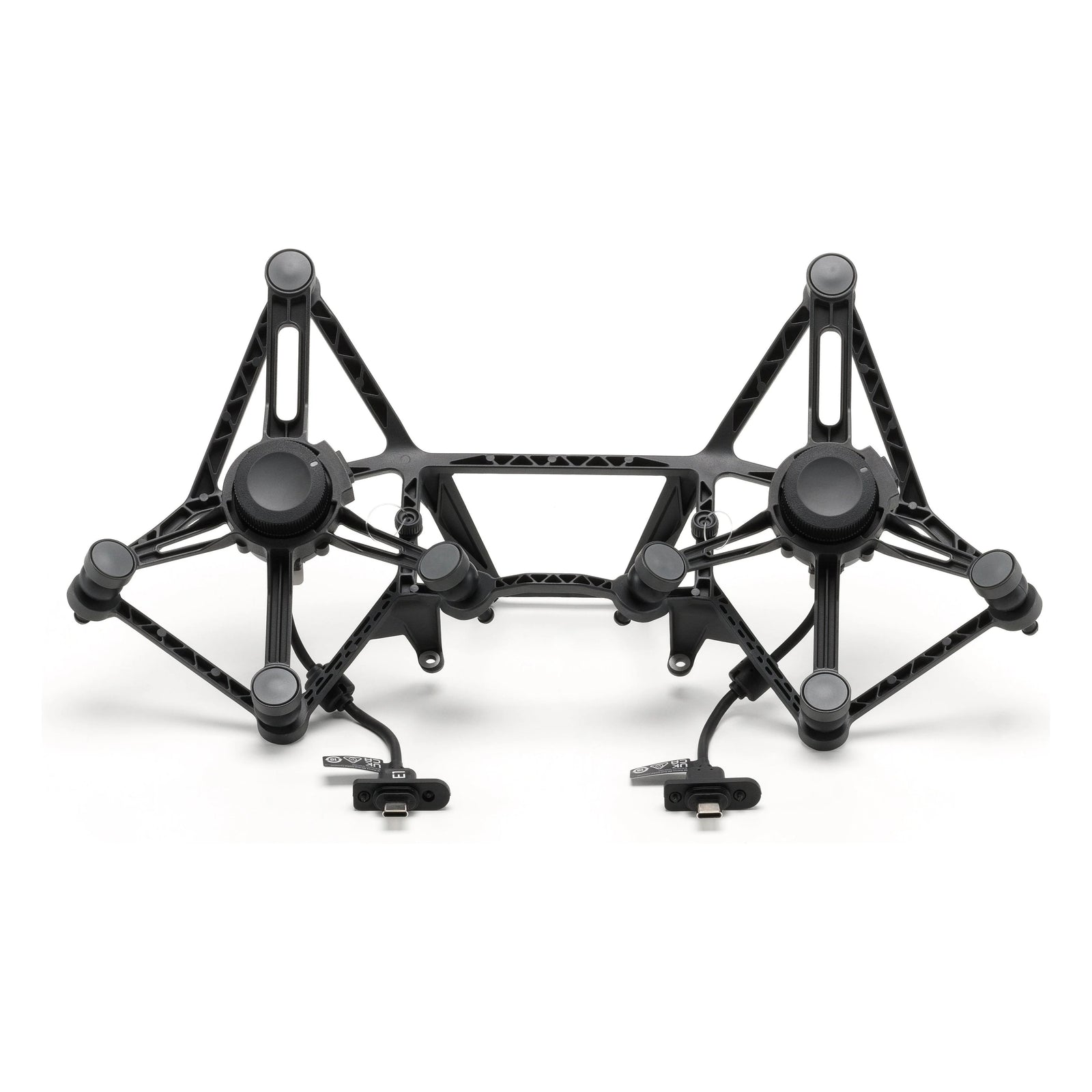

DJI Matrice 400 Dual Gimbal Connector
The Matrice 400 Dual Gimbal Connector provides two downward-facing mounting positions for compatible payloads. Each mount supports up to 950 g, allowing two payload streams to operate within a single mission configuration when the selected payload combination is supported.
Open Dual Gimbal Connector Listing →Published connector limits
The per-mount number changes the shortlist.
Single downward connector
DJI's maximum published connector payload. DJI also notes that damper life decreases when the mounted load exceeds 950 g, so “within maximum” is not the same as neutral maintenance impact.
Each dual-connector mount
Both selected payloads must fit the individual limit. The aircraft's larger overall payload capability does not override connector, centre-of-gravity, power, clearance or combination restrictions.
Decision matrix
Choose the architecture from the deliverable backward.
| Decision point | Single downward gimbal | Dual downward gimbal |
|---|---|---|
| Primary reason | One payload is the mission | Two simultaneous streams materially improve the mission |
| Published mount limit | 1,400 g maximum; damper-life note above 950 g | 950 g per mount |
| Mapping-focused P1 or L2 | Preferred starting architecture for measurement focus | DJI says accuracy is reduced when another payload is mounted simultaneously |
| Setup and checks | Fewer interfaces and clearance checks | Two payloads, two clearances, combined mass, power and data checks |
| Mission resilience | Simpler configuration and troubleshooting | Can avoid a second flight, but adds integration dependencies |
| Procurement | Standard aircraft connector route | Requires the separate Dual Gimbal Connector |
Mapping caveat: dual mounting can change the deliverable.
DJI's official P1 and L2 FAQs state that either payload can mount on the Matrice 400 single or dual downward connector, but that mapping accuracy is reduced when another payload is installed simultaneously on the dual connector. That is an explicit manufacturer caveat, not a theoretical concern.
If survey or LiDAR accuracy is contractual, start with single mounting or build a controlled dual-configuration acceptance test. Record firmware, payload positions, flight plan, RTK status, calibration, control and checkpoints, then compare the output against the stated tolerance before field release.
Mission patterns
Dual is strongest when the two payloads have different jobs.
DJI lists H30/H30T, L2, P1 and L3 as compatible gimbal cameras and S1 and V1 among compatible functional accessories. Compatibility with Matrice 400 does not prove every pair, position or firmware combination. Treat the examples as mission-design prompts that still require written configuration validation.
- Observation plus communication A compatible imaging payload and V1 speaker may support a coordinated visual and voice workflow where policy and operating procedures permit it.
- Observation plus illumination An imaging payload and S1 spotlight may reduce the need to change hardware between search phases, but night-operation authority, glare, exposure and battery impact remain separate checks.
- Two measurement payloads Combining mapping or LiDAR payloads can appear efficient, but output quality and DJI's mapping-accuracy caveats may outweigh the saved flight.
- One sensor plus a future third-party payload Confirm E-Port or gimbal interface, SDK access, power, data, mount, environmental and support responsibilities before ordering around a concept.
Configuration workflow
Seven gates before a two-payload field release.
- Define both outputs. If the second payload does not change a decision, remove it.
- Name exact payload models. Do not scope “thermal plus speaker” without model, revision and firmware.
- Check each mount limit. Include payload, adapters, filters, cables and mounting hardware in the mass and clearance review.
- Validate position and movement. Confirm each gimbal can move through the required range without collision, obstruction or landing-clearance conflict.
- Calculate combined power and endurance. Manufacturer flight-time examples are condition-specific; test the mission profile with both payloads active.
- Verify software control and data. Confirm Pilot 2 control, recording, timestamps, naming, data transfer and any FlightHub 2 or third-party workflow.
- Run an acceptance mission. Freeze the configuration and compare both outputs against written quality, latency and safety criteria before release.
Use the live Matrice 400 collection , Matrice 400 accessories collection and surveying and mapping solutions page to build the current shortlist.
Matrice 400 Gimbal Setup FAQ
What is the maximum payload for the Matrice 400 single gimbal connector?
DJI publishes 1,400 g for the single connector and notes that damper life decreases when the load exceeds 950 g. Other aircraft, balance and configuration limits still apply.
What is the maximum payload for the dual gimbal connector?
DJI publishes 950 g per mount for the Matrice 400 Dual Gimbal Connector. Each selected payload and mounting hardware must fit the applicable limit.
Is dual gimbal always better than single gimbal?
No. Dual is useful when two simultaneous payloads materially improve the mission. Single is simpler and is often the stronger starting architecture when one measurement-critical payload defines the deliverable.
Can P1 be mounted on the dual connector?
Yes. DJI says P1 can use either dual-connector port on Matrice 400, but mapping accuracy is reduced when another payload is mounted simultaneously.
Can L2 be mounted with another payload?
DJI says L2 can use the single or either dual port, but its mapping accuracy is reduced when another payload is installed simultaneously on the dual connector.
Does the Matrice 400 SP Plus Combo include batteries and a charger?
No. The current combo listing states that TB100 batteries and the BS100 charging station are not included. Confirm the complete power package before ordering.
Can SpeedyDrone confirm a two-payload configuration?
SpeedyDrone can review the intended mission and current components, but exact compatibility, stock, software, payload position and acceptance criteria should be confirmed in writing and validated before deployment.
Official and live sources
- DJI Matrice 400 specifications — connector limits and current compatible DJI product list.
- DJI Matrice 400 release — single, dual and additional connector architecture.
- DJI Zenmuse P1 FAQ — Matrice 400 mount positions and dual-payload mapping-accuracy caveat.
- DJI Zenmuse L2 FAQ — Matrice 400 mount positions and dual-payload mapping-accuracy caveat.
- SpeedyDrone Matrice 400 SP Plus Combo — package contents and product image.
- SpeedyDrone Dual Gimbal Connector — accessory information and product image.
Scope the payload pair before ordering the connector.
Send the site, primary deliverable, exact payloads, operating environment, required software, accuracy tolerance and target date. SpeedyDrone can help compare the current Matrice 400 platform and payload route, then document what still requires manufacturer or field validation.
Request a Matrice 400 Payload Architecture ReviewChecked August 10, 2026. Compatibility, firmware, package contents, price, stock and regulatory requirements can change.
