Airborne relay is a geometry tool.
Use a second Matrice 400 when terrain or structures break the direct radio path—not as a shortcut for turning a published transmission figure into a longer mission.
Two planned radio legs around an obstruction. Not a promise of extra legal or battery range.
Quick answer: when should you use M400 Airborne Relay?
Use DJI Matrice 400 Airborne Relay when a mountain, ridge, high wall, industrial structure or deep work area blocks the direct link between the operator and the mission aircraft, and when putting a second M400 in a safe airborne position creates two better line-of-sight radio legs.
The deciding question is not “How far do we want to fly?” It is “Where is the obstruction, and can a relay aircraft safely see both ends of the link for the time the mission needs?”
Valleys, quarry benches, ridge lines, high industrial structures and some corridor missions can create a real link-geometry problem.
Controller relocation or a suitably placed DJI O4 Ground Station may solve the obstruction with less airborne fleet burden.
If the direct link is already unobstructed, a second M400 adds crew, battery and risk without fixing a defined problem.
DJI documents the feature for one relay Matrice 400 supporting one additional Matrice 400 at a time. It also requires 5 GHz support in the operating region; DJI states that the feature is unavailable where that frequency is not supported. Treat those as configuration gates before any deployment plan, not details to discover on site.
What is DJI Matrice 400 Airborne Relay?
M400 Airborne Relay turns one Matrice 400 into an elevated communications node. The operator's controller links to the relay aircraft, and the relay aircraft links onward to the mission M400 carrying the payload. That topology can route the video-and-control path around a physical obstruction that prevents a dependable direct connection.
The middle aircraft is not doing the customer-facing payload work while it serves as the relay. Its job is to hold the planned communications position, preserve its own reserve and remain available for an orderly recovery. That is why Airborne Relay is better understood as a two-aircraft operating architecture than as a feature toggle.
Capacity boundary: one relay M400 supports one additional M400. Do not design a multi-aircraft fan-out architecture around a single relay aircraft unless newer DJI documentation for the exact firmware and region explicitly changes that limit.
Four situations where an airborne relay can make sense
The examples below are planning patterns, not guarantees. Each still needs a site survey, radio test, safe relay position, battery plan, crew roles and an authorized Canadian operating concept.
Put the relay above the blocking ridge
A mission aircraft working below a ridge can lose a direct radio path to a controller on the opposite side. A relay positioned with a clear view of both the controller and work area can reshape that path. The relay's altitude, wind exposure and recovery route become part of the risk plan.
Bridge a deep or stepped work area
Benches, pit walls, stockpiles and processing structures can block a controller at ground level. Airborne relay may support inspection or situational awareness lower in the site, but dust, traffic, blast procedures, GNSS conditions and emergency landing areas still need separate controls.
Maintain geometry along changing terrain
Transmission lines, pipelines and rights-of-way often cross ridges and forested terrain. A relay can help with a defined obstructed segment. For long corridors, compare it with controller repositioning, staged crews or fixed ground infrastructure rather than assuming one hover point covers the full route.
Support a mission aircraft below the command point
In a canyon, ravine or mountain response, the mission M400 may need thermal or zoom payload access below surrounding terrain. A second aircraft can preserve the radio path, but it also consumes a trained crew and battery resources during a time-critical job. Build the relay into the incident plan rather than improvising it after signal loss.
For the payload and aircraft-selection side of public-safety planning, see SpeedyDrone's Canadian search-and-rescue drone guide.
Airborne Relay solves obstruction—not simple distance
Published transmission distance and useful operating geometry are different concepts. DJI lists up to 40 km for M400 under FCC conditions, but that figure comes from an unobstructed, interference-free, one-way and non-return test. It is not a promised work radius, and it does not include the battery, wind, payload, route, return, terrain, crew or regulatory constraints of a real mission.
Never calculate 40 km + 40 km = 80 km. A relay creates two separate radio legs. The weaker leg, the obstruction geometry, interference, antenna orientation, regional frequency support, aircraft energy and operating authorization still control the usable mission.
A good relay design begins with a terrain or structure profile. Mark the controller position, intended relay volume, mission aircraft work area, return paths and contingency landing areas. Then test whether both radio legs remain credible through the planned altitude and route changes. If the obstruction can be removed by moving the controller a short distance or using an accessible high point, that simpler change may be the better answer.
When Airborne Relay is usually unnecessary
- The operating area is flat and open, with a stable direct link and no defined blocking feature.
- The controller can move to a safe, accessible point that restores line of sight without adding another aircraft.
- The relay aircraft would need to hover in severe wind, icing exposure or another environment that erodes its reserve.
- The team does not have a qualified crew, battery inventory and procedures for two simultaneous aircraft roles.
- The proposed flight is unauthorized; adding a relay does not create BVLOS permission.
Airborne Relay vs O4 Ground Station vs 4G Enhanced Transmission
These options can address parts of the same communications problem, but they do not have the same topology or dependencies. Airborne Relay is mobile and elevated but consumes a second aircraft. O4 Ground Station is placed on the ground at a useful high point. Enhanced 4G Transmission adds a cellular path in a compatible configuration, so its value depends on carrier coverage and network performance.
| Decision factor | M400 Airborne Relay | DJI O4 Ground Station Relay Mode | Enhanced 4G Transmission |
|---|---|---|---|
| What it changes | Creates an airborne middle node between the controller and one mission M400. | Creates an elevated or strategically placed ground relay between the control end and one connected aircraft. | Adds a compatible mobile-network path that can supplement transmission when cellular service is usable. |
| Best fit | Temporary missions where terrain or structures block the direct path and no suitable ground position is available. | Known sites where a powered ground unit can be installed at a repeatable, high-visibility location. | Areas with dependable supported carrier coverage where network diversity is part of the design. |
| Main dependency | A second M400, batteries, crew, safe airborne position and regional 5 GHz support. | Site access, mounting, power, cable and antenna placement, firmware and regional band support. | Compatible modules, SIM/data service, carrier availability, latency and network continuity. |
| Internet required? | The radio relay concept is not a cellular backhaul service. | DJI states Relay Mode can work without an internet connection. | Yes—the cellular path depends on an available carrier network and service. |
| Battery burden | High: the relay aircraft's flight time becomes a mission clock. | Not an aircraft-hover clock, but the ground station still needs suitable power and environmental planning. | Lower than dedicating a second aircraft, but it does not remove aircraft battery constraints. |
| sub2G with M400 | Unavailable while the aircraft works as an airborne relay. | DJI documents sub2G support with M400 where the band is regionally supported. | Different path; verify the exact module, band, firmware and carrier configuration. |
Comparison reflects DJI documentation checked September 15, 2026. Regional availability, firmware compatibility and supported frequencies can change. SpeedyDrone does not currently present O4 Ground Station or Cellular Dongle 2 as a standalone public product listing, so confirm quotation and availability rather than treating either as an included M400 accessory.
Choose the architecture before the hardware
If the mission moves across changing terrain and the useful relay point needs to move with it, an airborne relay may be the most flexible option. If the obstruction repeats at one known site, a ground station at a surveyed high point may reduce recurring aircraft and battery overhead. If the site has strong cellular coverage, 4G can add path diversity—but it should not be confused with a guaranteed substitute for the direct radio link.

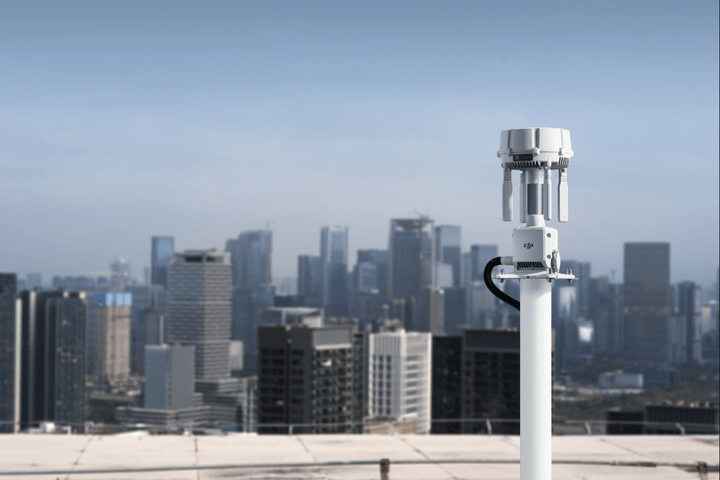

DJI O4 Ground Station Relay Mode supports the M400 and can be placed at an elevated ground location to overcome obstruction. DJI also says the mode can operate without internet. That makes it a serious alternative for repeatable sites, but it brings its own mounting, power, cable, band and commissioning requirements.
For connected-site context beyond relay mode, review SpeedyDrone's FlightHub 2 and O4 Ground Station update.
The hidden cost: one M400 stops being the mission aircraft
Airborne Relay is built into the M400, but a relay deployment is not free. The second aircraft is no longer available to carry another customer payload or fly a parallel mission. It needs transport, batteries, inspection, firmware control, maintenance records, a launch and recovery area, an assigned operator role and a contingency plan.

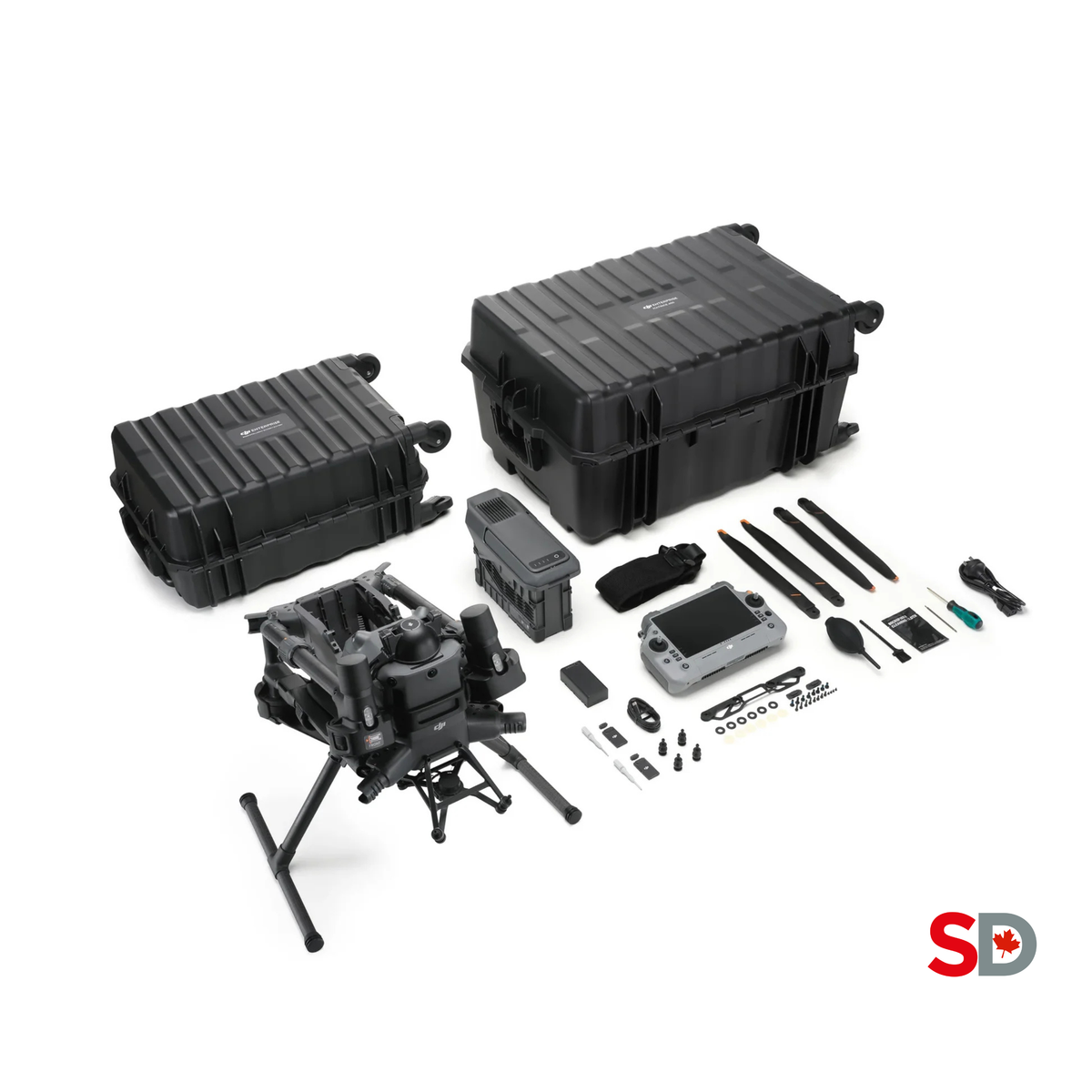

The current SpeedyDrone Matrice 400 SP Plus Full Package includes one M400, one DJI RC Plus 2 Enterprise Enhanced, DJI Care Enterprise Plus, one BS100 battery station and one TB100 battery. A two-aircraft relay operation therefore needs a separately designed fleet and power plan; the listed package is not a complete relay deployment by itself.
Battery planning: the relay clock controls the mission
The relay M400 often spends much of its time holding an exposed position while the mission aircraft moves, climbs, descends and operates a payload. Those are different flight profiles. Do not assume the two aircraft will consume energy at the same rate or reach their return thresholds together.
A relay plan needs a named trigger for return or replacement, a safe way to preserve communications while that happens, and enough reserve for the relay aircraft to leave its station and recover in the actual wind. If continuous coverage is required, decide whether the mission pauses during the battery change or whether a tested handover procedure and additional aircraft are justified.
Important limitation: sub2G is unavailable in airborne relay mode
The current Matrice 400 User Manual states that when the aircraft is used as an onboard relay, the sub2G frequency is unavailable. This matters because the standard M400 platform supports sub2G in applicable regions, while the relay role changes the available communications set.
Do not promise a relay design that depends on sub2G. Confirm the operating region, supported 5 GHz frequency, firmware, aircraft roles and controller configuration before committing the architecture to a customer or mission plan.
This is also one reason O4 Ground Station deserves a separate comparison. DJI documents sub2G support for M400 with O4 Ground Station where the band is regionally supported. That does not make the ground station automatically better; it means the radio options and site dependencies are different. The correct choice comes from the site survey and required topology.
Does Airborne Relay authorize BVLOS in Canada?
No. A stronger or more resilient command-and-control architecture does not itself authorize beyond-visual-line-of-sight flight. In Canada, the technical design and the regulatory operating category remain separate workstreams.
Transport Canada's current Level 1 Complex pathway can cover eligible lower-risk BVLOS operations, but only when the pilot, operator, aircraft and operation meet the framework. That includes a Level 1 Complex pilot certificate, operation under an RPAS Operator Certificate, aircraft registration, the applicable safety-assurance declaration and operating conditions such as uncontrolled airspace, 400 ft AGL or below, required aerodrome distance and population limits.
Operations outside the applicable Basic, Advanced or Level 1 Complex rules may require an SFOC-RPAS. A relay M400, O4 Ground Station, 4G link or FlightHub 2 workflow does not waive those requirements. Use Transport Canada's current rules and organization-specific advice when establishing the legal pathway.
For the broader platform decision, including payload, endurance and Canadian operating context, read Matrice 400 vs Matrice 350 RTK.
A practical relay-deployment checklist
Prove the obstruction
Map the terrain or structure that breaks the direct path. Record controller, mission area and candidate relay positions instead of beginning with an advertised distance.
Compare simpler options
Test controller relocation, an accessible high point, staged crews, O4 Ground Station and cellular redundancy. Document why a second airborne M400 is the best fit.
Verify the exact configuration
Confirm regional 5 GHz support, compatible firmware, aircraft pairing, controller setup and the loss of sub2G in airborne relay mode.
Design both flight plans
Plan the relay hover volume, wind exposure, recovery route and reserve separately from the mission aircraft route, payload and return logic.
Assign crew and lost-link actions
Name who monitors each aircraft, who calls the relay return, what happens if either link degrades and how the mission aircraft recovers without improvisation.
Validate the Canadian operating path
Confirm the pilot certificates, RPOC, aircraft declaration, airspace and site conditions or SFOC-RPAS needs before treating the technical solution as deployable.
Test before operational use
Use a bounded acceptance test with real terrain, payload, winds, batteries and contingency triggers. Record the usable geometry and stop criteria, not only the best signal observed.
DJI Matrice 400 Airborne Relay FAQ
Can one Matrice 400 act as a relay for another M400?
Yes. DJI documents one Matrice 400 working as an onboard relay for one additional Matrice 400. The feature requires supported 5 GHz operation in the region and the exact aircraft, controller and firmware configuration must be confirmed.
Can one relay M400 support several mission drones?
No under DJI's currently published limit. The relay aircraft supports one additional Matrice 400 at a time. Do not plan a one-to-many airborne relay architecture unless current DJI documentation for the exact region and firmware explicitly supports it.
Does M400 Airborne Relay require 5 GHz?
Yes. DJI says the feature depends on local 5 GHz frequency support and is unavailable where that frequency is not supported. Verify regional band availability and the complete configuration before deployment.
Can the relay M400 still use sub2G?
No. The current Matrice 400 User Manual states that sub2G is unavailable when the aircraft is used as an onboard relay. This limitation should be captured in the communications plan and customer scope.
Does Airborne Relay double the M400's range?
No. It creates two radio legs around an obstruction; it does not turn DJI's laboratory transmission-distance figure into an additive work radius. Terrain, interference, antenna geometry, frequency support, batteries, return planning and operating authorization still constrain the mission.
Is M400 Airborne Relay the same as DJI O4 Ground Station?
No. Airborne Relay dedicates a second M400 as a mobile elevated node. O4 Ground Station is installed at a strategic ground location and needs site, mounting and power planning. DJI documents Relay Mode operation without internet and sub2G with M400 where regionally supported.
Is Airborne Relay the same as Enhanced 4G Transmission?
No. Airborne Relay uses another M400 to reshape the radio path around an obstruction. Enhanced 4G Transmission adds a compatible cellular path and depends on carrier coverage, service and supported hardware. They solve different parts of link resilience.
When is an airborne relay most useful?
It is most useful when terrain or a large structure physically blocks a direct controller-to-aircraft path and a safe airborne relay position can see both ends. Mountain valleys, quarry pits, obstructed utility corridors and some search-and-rescue missions are typical candidates.
What happens when the relay aircraft needs to return?
The relay link and mission plan can no longer be treated as unchanged. Operators need a predefined pause, recovery or tested handover procedure, plus enough relay-aircraft reserve to leave station and land safely in the actual conditions.
Does Airborne Relay make BVLOS legal in Canada?
No. It is a communications capability, not regulatory authorization. Eligible lower-risk BVLOS operations must meet Transport Canada's Level 1 Complex framework; operations outside applicable categories may require an SFOC-RPAS.
