Bridge Inspection with Zoom, Thermal and LiDAR Drones in Canada
Combine detailed optical evidence, radiometric thermal screening and LiDAR geometry to inspect difficult bridge components, build digital twins and improve long-term condition records.

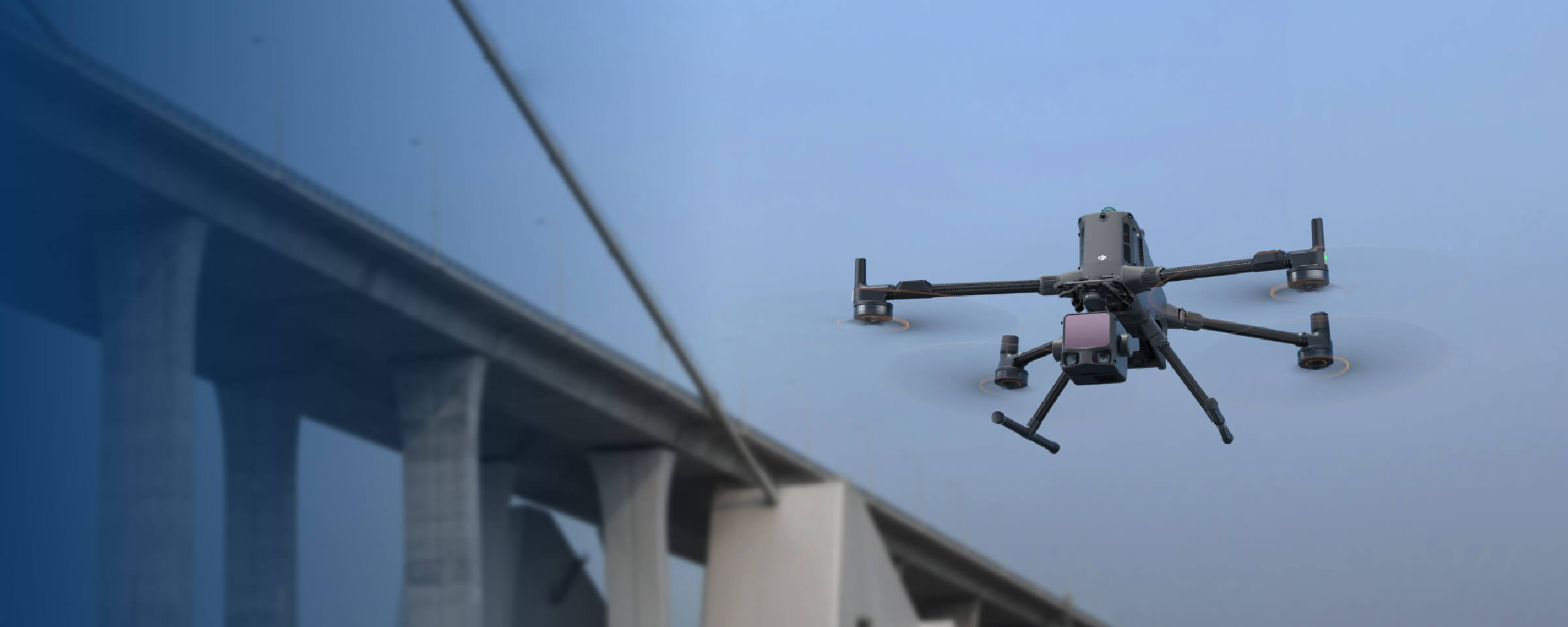

DJI Matrice 400Shared inspection aircraft
Zenmuse H30TZoom + thermal + laser
Zoom documents surface defects, thermal screens for abnormal temperature patterns, and LiDAR creates the geometry and spatial baseline. The most complete bridge workflow uses all three—but none replaces engineer-led inspection or specialized testing.
Zoom, thermal and LiDAR answer different questions
Find surface-level visual defects
High-resolution optical zoom is used for cracks, corrosion, loose hardware, drainage, joints, bearings, coatings and cable details where safe stand-off matters.
Identify temperature and moisture patterns
Thermal imaging can reveal abnormal heating, moisture-related patterns, delamination indicators and temperature differences—but results require controlled conditions and engineering interpretation.
Measure geometry and create a spatial baseline
LiDAR produces a dense point cloud for geometry, clearance, deformation context, terrain, approaches, piers and digital-twin coordination.
On tablets and phones, swipe the table left.
| Method | Strongest outputs | Typical bridge uses | Main limitation |
|---|---|---|---|
| Optical zoom | High-detail RGB images and video | Cracks, corrosion, bolts, bearings, joints, drains, cables and coatings | Only visible surfaces; evidence depends on pixels, focus, light and angle |
| Thermal | Radiometric temperature patterns | Moisture or delamination screening, electrical and mechanical systems, comparative heat patterns | Environmental conditions can create false or ambiguous patterns |
| LiDAR | Point cloud, geometry and clearances | Digital twins, deformation context, approaches, terrain, piers and repeat surveys | Does not show small surface texture as clearly as close optical imagery |
| Photogrammetry | Textured 3D model and orthographic views | Visual model, defect location and documentation | Textureless surfaces, occlusion, lighting and geometry can reduce model quality |
Best practice: define the engineering question before choosing the sensor. A LiDAR point cloud cannot replace a close crack image, and a thermal image cannot provide a complete geometric baseline.
Plan coverage by component—not by flight path alone
Cracking, patching, drainage and joints
Use nadir, oblique and close visible views to document cracking, spalls, patches, barriers, drains, wearing surface and expansion joints.
Hard-to-access underside condition
Document corrosion, coating loss, concrete distress, diaphragms, bracing, connections and staining. Under-deck flight requires conservative link and lost-signal planning.
Movement, alignment and deterioration
Capture multiple angles of bearings, seats and surrounding concrete. Zoom imagery helps document displacement, corrosion and debris.
Concrete, masonry and scour context
Inspect cracking, spalling, staining, impact evidence, erosion and accessible foundation context. LiDAR can connect visible condition with geometry.
Surface condition and alignment
Use optical zoom for cable clamps, anchorages, hangers, sockets and visible coating condition. Specialized close-up or NDT may still be required.
Water-management defects
Record leakage, blockage, seal deterioration, staining and water paths that may accelerate deterioration below the deck.
Settlement, erosion and access
LiDAR and mapping can document approach settlement, slope change, retaining elements, access constraints and post-event changes.
Channel and pier environment
Aerial LiDAR and imagery can document exposed geometry and terrain context, but underwater scour requires sonar, sounding or other specialized methods.
Operational constraints
Plan road, rail, marine and pedestrian controls with the owner. Drone capability does not remove the need for traffic management or permissions.
Matrice 400, H30T and L3 for a complete bridge program

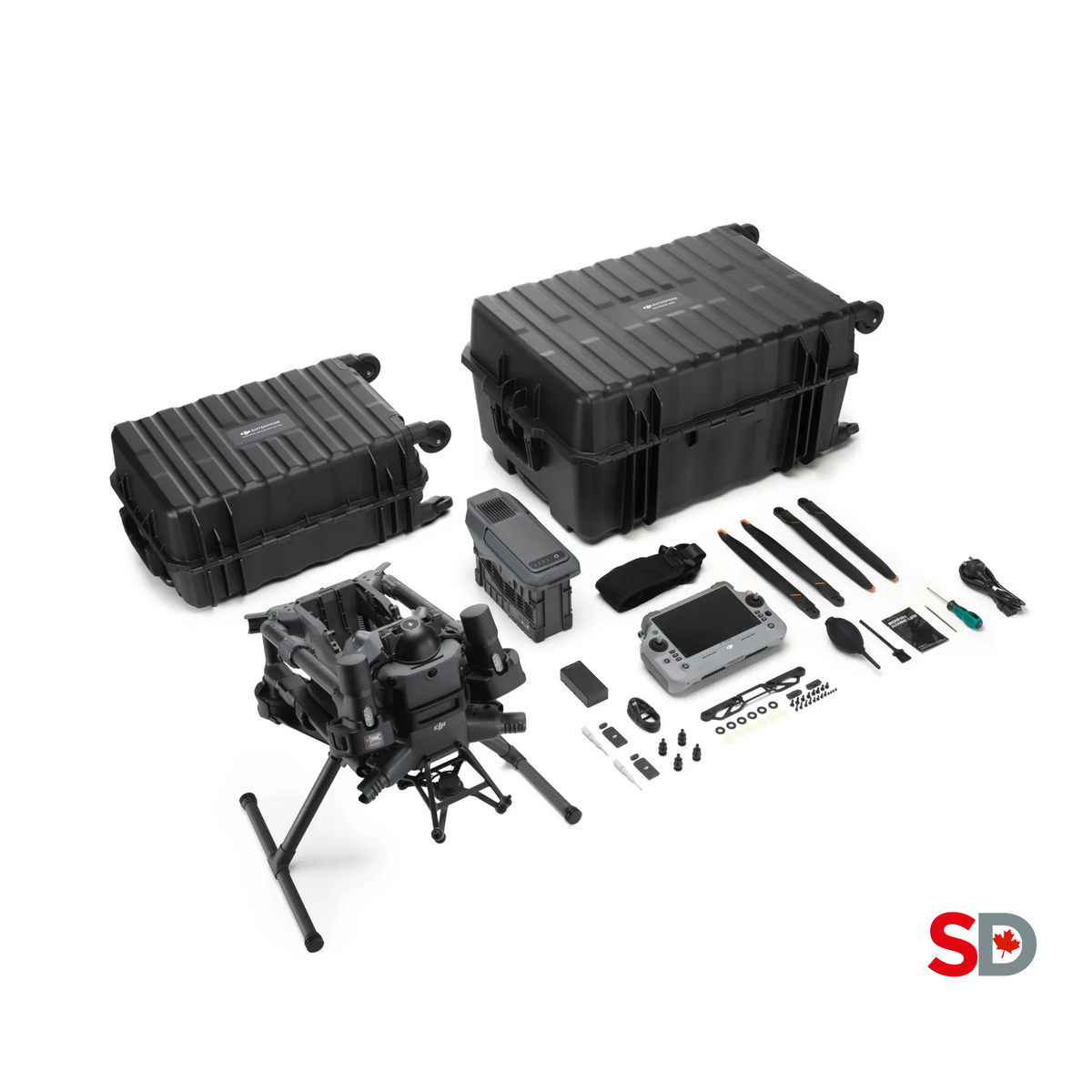

DJI Matrice 400
Matrice 400 carries H30T and L3, supports multiple payloads, offers IP55 protection and DJI lists up to 59 minutes in an H30T forward-flight test.

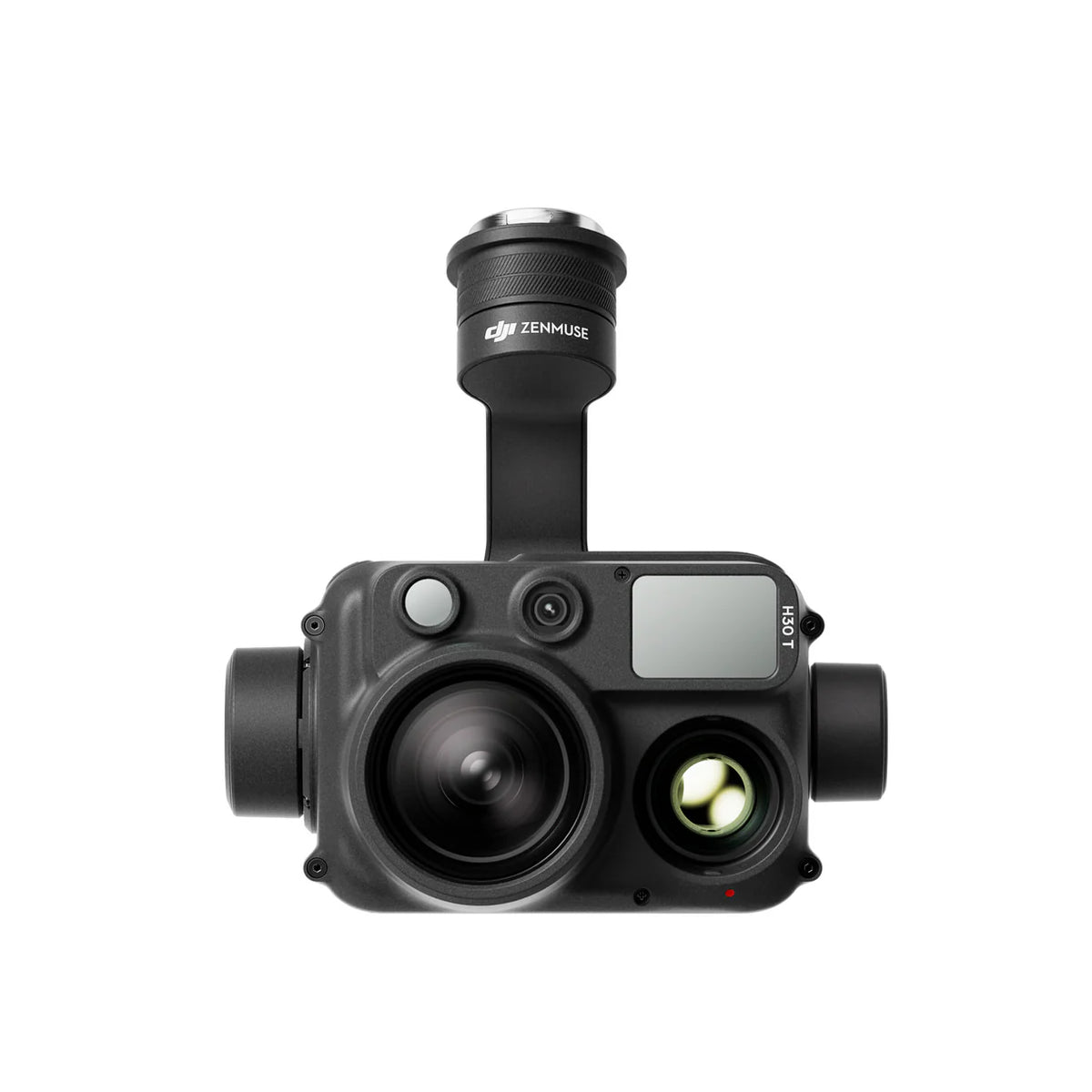

Zenmuse H30T
H30T combines 34× optical zoom, 1280×1024 radiometric thermal, wide camera, NIR illumination and a 3–3000m laser rangefinder.

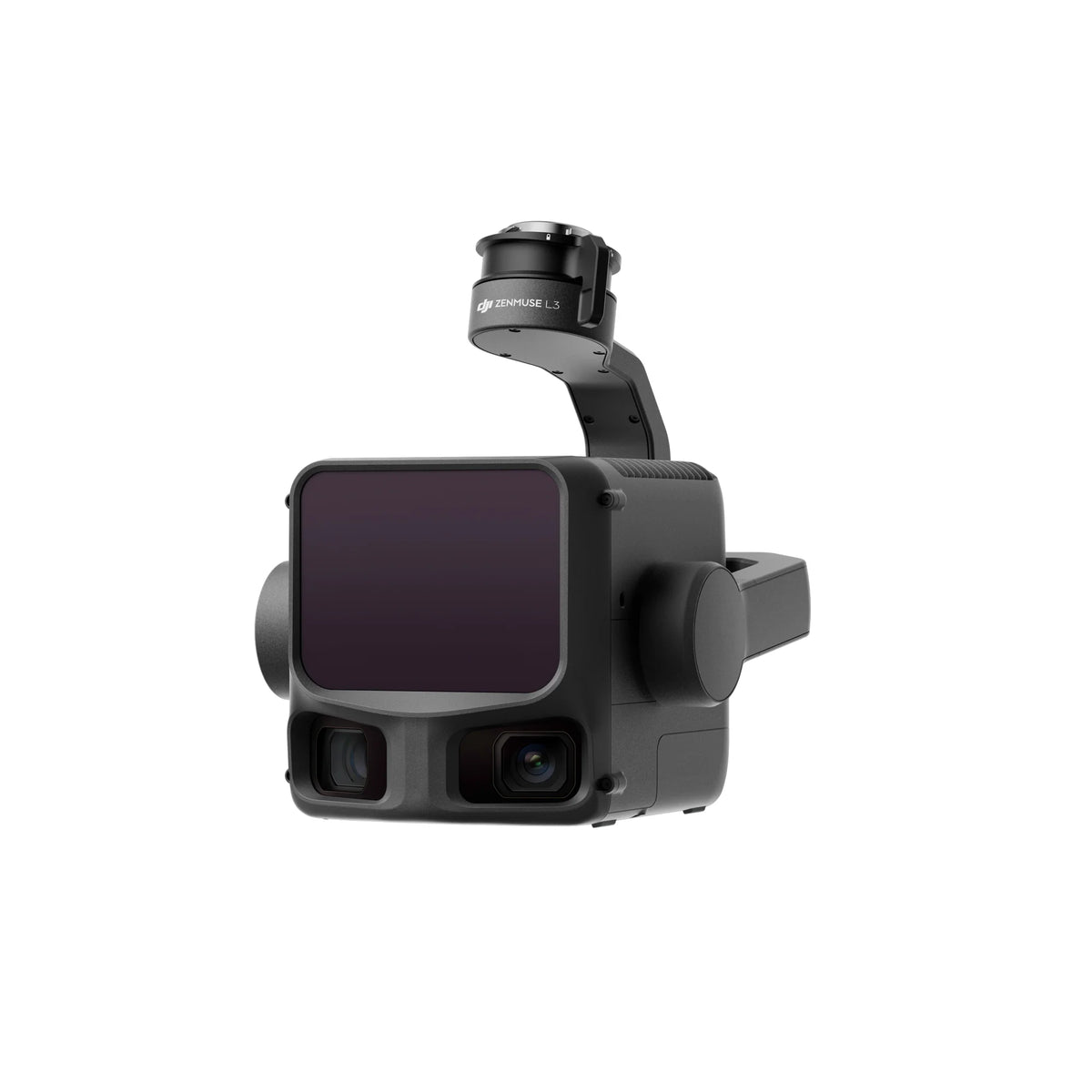

Zenmuse L3
L3 combines long-range 1535nm LiDAR, dual 100MP RGB mapping cameras and a high-precision positioning system for bridge point clouds and digital twins.
Zenmuse P1
DJI’s official bridge workflow also recommends P1 for high-resolution visual models and vertical 2D inspection outputs.

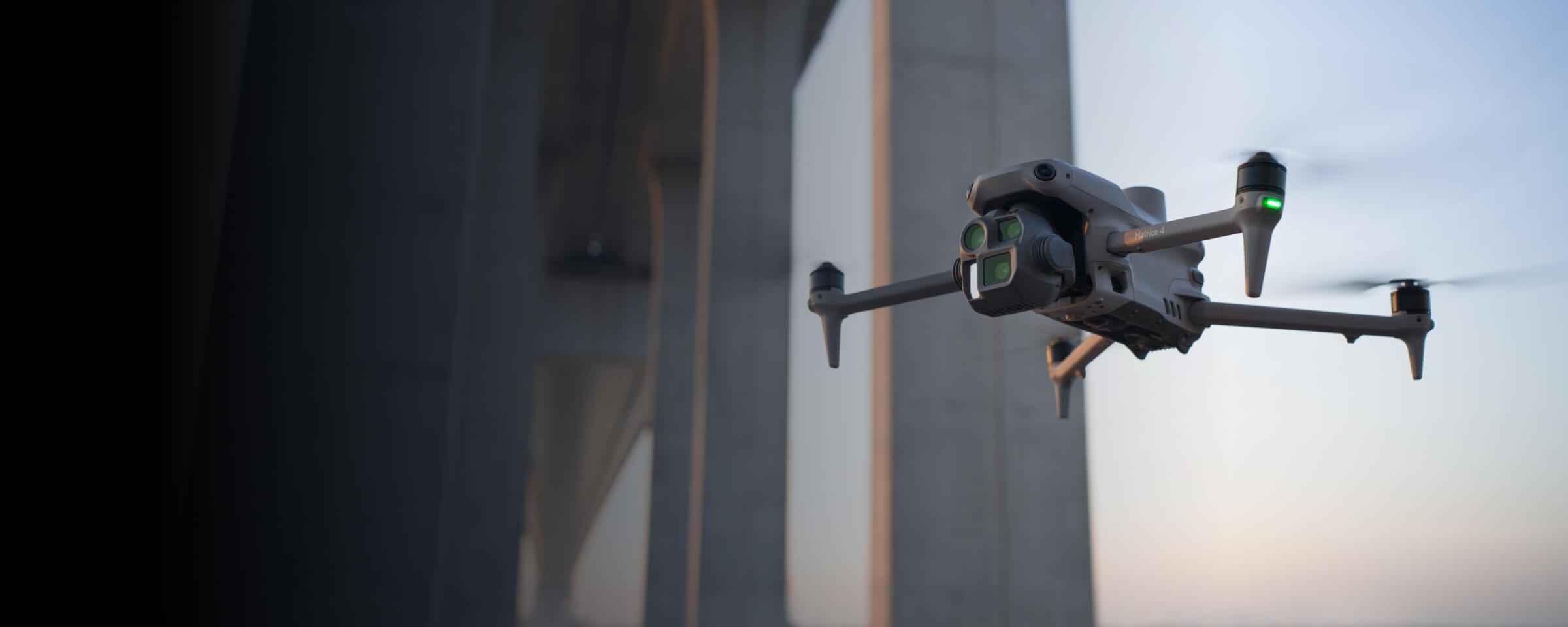

DJI Matrice 4E
Matrice 4E is useful for portable inspections and narrower spaces where a smaller aircraft and integrated zoom cameras are preferable.
DJI Terra, Modify and FlightHub 2
Terra reconstructs point clouds and models, Modify repairs model defects, and FlightHub 2 supports projects, routes, media and collaboration.
Specification discipline: the 59-minute, 950m and published accuracy figures are controlled-condition test results. Bridge missions usually involve oblique flight, hovering, wind, occlusion and conservative reserves.
From bridge inventory to verified engineering follow-up
Scope
Owner standard, bridge elements, safety, deliverables and access limits.Baseline
Existing plans, GIS, LiDAR or photogrammetric model.Plan
Routes, viewpoints, target pixels, thermal window and control.Capture
Zoom, radiometric thermal, LiDAR and context imagery.Process
Terra, Modify, Thermal Analysis Tool and QA checks.Review
Engineer-led findings, limitations and required close-up work.DJI’s official bridge workflow: plan from a 3D model or live mission record, collect with RTK where appropriate, process in DJI Terra, refine model texture with DJI Modify, then locate and document defects in images or models.
Use optical detail to reduce unnecessary close approach
Use true optical detail before digital magnification
H30T provides up to 34× optical zoom and 400× digital zoom. Extreme digital zoom does not maintain the same evidence quality.
Set target pixels and image angle
Define minimum target resolution, acceptable angle, motion blur, focus and lighting before the route is approved.
Use AI Spot-Check or route references
Repeatable framing supports change comparison, but every automated viewpoint must be validated against actual geometry and obstructions.
Capture context and detail
Pair each close detail image with a wider context image and an asset identifier so reviewers can locate the finding.
Plan sun, shadow and surface reflectivity
Concrete cracks and steel corrosion may disappear under poor lighting or high glare. Use time-of-day planning and multiple angles.
Know when zoom is insufficient
Use hands-on inspection, rope access, NDT or engineering investigation when the defect cannot be resolved from aerial imagery.
Plan the thermal window before the aircraft launches
Look for patterns—not proof
Thermal differences may support moisture, delamination or material-change screening, but they are influenced by heating history, weather, depth and surface condition.
Check bridge systems carefully
Thermal may assist with lighting, movable-bridge equipment or electrical cabinets when inspection authority and safe procedures allow.
Control environmental conditions
- Record ambient temperature and weather
- Avoid rain and rapidly changing conditions
- Document solar exposure and shade
- Use consistent distance and angle
- Capture visible and radiometric pairs
Keep the original R-JPEG
H30T supports radiometric R-JPEG and DJI Thermal Analysis Tool 3. Preserve originals, settings and reviewer identity.
Use qualified thermography and engineering review
Do not convert a colour palette into a structural conclusion without corroboration and a documented interpretation method.
Know what thermal cannot see
Thermal does not see through concrete or prove internal condition. Depth, reinforcement, moisture and boundary conditions can alter patterns.
Do not issue a structural conclusion from a palette screenshot. Preserve the radiometric source, document the environmental conditions and use engineering corroboration.
Build a spatial record that can be compared over time
Create a repeatable point cloud
Use LiDAR for bridge geometry, clearances, alignment, piers, approaches, terrain and asset context.
Combine LiDAR and photogrammetry
DJI recommends L3 point clouds and P1 photogrammetry for bridge digital-twin asset management, processed in Terra and refined in Modify.
Treat published accuracy as test data
DJI lists 3cm vertical and 4cm horizontal RMSE at 120m under laboratory conditions. Bridge geometry, GNSS, route and control determine real results.
Plan multiple scan angles
Girders, decks, piers and vegetation create shadowed areas. Use cross-lines, oblique passes and ground control where required.
Register epochs carefully
Comparing years requires consistent coordinate systems, control, filtering, classification and alignment.
Use aerial LiDAR above water
LiDAR helps with exposed banks, terrain and visible foundations. It does not replace underwater bathymetry or sonar where water blocks the laser.
| Deliverable level | Purpose | Typical source | Important caveat |
|---|---|---|---|
| Point cloud | Geometry, clearance, alignment and terrain | L3 LiDAR | Requires registration, QA, classification and control documentation |
| Textured mesh | Visual review and stakeholder communication | P1 or RGB cameras with photogrammetry | Occlusion and texture gaps can produce holes or false surfaces |
| Hybrid model | Geometry plus visual texture | L3 + P1 or other RGB imagery | Coordinate alignment and version control are essential |
| Inspection model | Asset-linked findings and annotations | Model plus zoom/thermal evidence | Model appearance does not equal engineering accuracy |
GNSS shadow and blocked radio links change the mission
Expect degraded satellite geometry
Bridge decks, steel and terrain can reduce GNSS quality. Define when to use vision positioning, manual control, sheltered operations or a smaller aircraft.
Structures can block transmission
Transport Canada specifically notes that structures affect command-and-control links during sheltered operations. Set conservative lost-link and RTH behaviour.
Thin members and cables remain difficult
Vision, LiDAR and radar assist the pilot, but small wires, water reflections, repetitive steel and dark soffits can reduce performance.
Account for turbulence and recovery
Wind accelerates around openings and piers. Select a recovery area that remains usable if the aircraft cannot return beneath the bridge.
Use the smallest suitable aircraft
Matrice 4E may be easier to manoeuvre in narrower spaces. A collision-tolerant third-party platform may be more appropriate for true confined interiors.
Separate the operating area
Maintain required distances from uninvolved people, coordinate lane or walkway controls and avoid dropping hazards over traffic.
Canadian sheltered operations: Advanced pilots may operate a small drone near a structure without direct VLOS when the operation meets the sheltered-operation conditions, including distance from the structure, altitude, pilot distance and separation from uninvolved people. The aircraft must meet the applicable safety-assurance requirements.
Define what the owner receives before collection begins
Context, component and defect images
Organize by bridge, span, component, side, date and route. Preserve originals and selected annotated evidence.
Radiometric files and interpretation
Include capture conditions, settings, visible pairs, reviewer qualifications, limitations and recommended follow-up.
Registered and quality-checked geometry
Deliver source, processed, classified and control documentation according to the owner’s required format.
Bridge digital twin or BIM reference
State whether the model is suitable for visualization, measurement, design reference or change analysis. Do not overstate accuracy.
Asset-linked findings
Record component ID, observation, severity, confidence, image reference, location, recommended action and review status.
Priorities and limitations
Summarize coverage, inaccessible areas, urgent observations, data-quality limits and required hands-on inspection.
Coverage statement: every report should list inspected components, inaccessible areas, data-quality limitations, weather, traffic controls, operating mode and required follow-up.
Drones support the inspection program; the owner’s standard controls the inspection
Professional-engineer direction and OSIM
Ontario Regulation 104/97 requires at least one bridge inspection every second calendar year under the direction of a professional engineer and in accordance with the Ontario Structure Inspection Manual.
Certified inspection system
Alberta’s Bridge Inspection and Maintenance System uses trained and certified inspectors, with Level 2 inspections requiring specialized equipment or expertise.
Owner-specific bridge standards
B.C. maintains bridge standards, inspection forms and specialized procedures. Confirm whether the asset is provincial, municipal, railway, resource-road or privately owned.
VLOS, sheltered and EVLOS options
Advanced operations can include controlled airspace with permission, sheltered operations and qualifying EVLOS with the correct aircraft declaration and crew.
Lower-risk BVLOS
Qualifying lower-risk BVLOS requires the appropriate pilot certificate, an RPOC, registered aircraft, the required safety declaration and qualifying airspace and population conditions.
Operations outside prescribed categories
Higher-complexity BVLOS, aerodrome operations, higher altitude or other missions outside Basic, Advanced or Level 1 Complex can require an SFOC-RPAS.
Traffic and owner permission are separate: pilot certification does not authorize lane closures, rail access, marine control, property entry or work within a bridge owner’s restricted zone.
Budget the complete bridge-inspection system
Canadian reference prices below were checked on July 21, 2026. Confirm current inventory, included batteries, care plans, software and package contents before procurement.
Aircraft, payloads and endurance
- Matrice 400 aircraft
- H30T and/or L3 payload
- Batteries and charging station
- RTK or control equipment
- Cases, cards and spares
- Care plan and maintenance
Processing and archive
- DJI Terra
- DJI Modify where required
- Thermal Analysis Tool 3
- FlightHub 2 or project platform
- Workstations and storage
- GIS/BIM integration
Inspection and engineering
- Pilot and visual observer
- Bridge engineer and certified inspector
- Thermography specialist
- Traffic or marine control
- Data processing and QA
- NDT or hands-on follow-up
Do not estimate savings only from avoided access equipment. Include engineering review, repeat collection, data processing, traffic control, training, insurance and required close-up inspection.
Which bridge-inspection configuration fits the program?
Bridge owners and engineering consultants
- Need safer access to difficult components
- Require repeatable visual records
- Want LiDAR or digital-twin baselines
- Have engineer-led inspection procedures
- Can integrate drone outputs into asset management
Choose H30T when surface detail dominates
- Corrosion and coating condition
- Bearings, joints and connections
- Cable and hanger details
- Stand-off visual inspection
- Thermal screening also required
Choose L3 when geometry dominates
- Digital twin and BIM context
- Clearance and deformation baseline
- Approaches, slopes and terrain
- Complex geometry documentation
- Repeat survey comparison
Choose H30T + L3 when both evidence types matter
- Large or complex bridge portfolio
- Detailed defects plus digital baseline
- Post-event assessment and long-term monitoring
- Multiple engineering teams need shared data
- Lifecycle value supports two payloads
Request a bridge inspection system assessment
SpeedyDrone Canada can help scope DJI Matrice 400, Zenmuse H30T, Zenmuse L3, Matrice 4E, DJI Terra, FlightHub 2, training and deployment partners. Send the bridge type, inspection standard, components, access constraints, required deliverables, operating environment and procurement timeline.
Bridge inspection drone FAQ
Can drones replace a required bridge inspection?
No. Drones support access, documentation and measurement, but the bridge owner and professional engineer determine the required inspection method, close-up access, testing and reporting.
What drone is best for bridge inspection?
DJI Matrice 400 is a strong shared platform for Zenmuse H30T zoom and thermal inspection and Zenmuse L3 LiDAR mapping. Matrice 4E can be useful for compact access and portable visual work.
What does zoom inspection find on a bridge?
Zoom imagery can document cracks, spalls, corrosion, coating loss, loose or missing hardware, joints, bearings, drainage, cables and other visible surface conditions.
What is the H30T optical zoom?
DJI lists up to 34× optical zoom and up to 400× digital zoom. Optical zoom should be prioritized for evidence quality.
What is the H30T thermal resolution?
Zenmuse H30T records radiometric thermal photos and video at 1280×1024.
Can thermal drones detect bridge delamination?
Thermal imaging can support screening for temperature patterns associated with delamination or moisture under suitable conditions, but it does not prove the defect and requires engineering corroboration.
What does LiDAR add to bridge inspection?
LiDAR adds dense three-dimensional geometry for clearances, alignment, piers, approaches, terrain, digital twins and repeat surveys.
What is Zenmuse L3 accuracy?
DJI lists 3cm vertical and 4cm horizontal RMSE at 120m under specified laboratory conditions. Actual bridge-project accuracy depends on route, GNSS, control, geometry and processing.
Can LiDAR measure underwater scour?
Aerial LiDAR generally cannot see through most water sufficiently for underwater scour mapping. Use sonar, sounding, bathymetric LiDAR or other approved methods where underwater geometry is required.
Can Matrice 400 fly beneath a bridge?
It can support close structural inspection, but under-bridge operations require assessment of GNSS shadow, C2 blockage, obstacles, wind, recovery and the applicable Canadian operating category.
What are sheltered operations in Canada?
Sheltered operations allow a small drone to operate near a structure without direct VLOS under Advanced rules when the operation remains within 61m horizontally, no more than 30m above the structure, within 3.7km of the pilot and at least 30m from uninvolved people, subject to the applicable safety assurance.
When can EVLOS be used for bridge work?
Advanced EVLOS can be used in uncontrolled airspace with a qualified visual observer, a small drone, required separation from people and a maximum 3.7km distance from the pilot, control station and observer.
When is an SFOC-RPAS required?
An SFOC-RPAS is required when the operation falls outside Basic, Advanced or Level 1 Complex rules, including many higher-complexity BVLOS or aerodrome operations.
Are Ontario bridge inspections required every two years?
Ontario Regulation 104/97 requires at least one inspection in every second calendar year under the direction of a professional engineer and in accordance with the Ontario Structure Inspection Manual.
What software is used for bridge drone data?
DJI Terra processes photogrammetry and LiDAR, DJI Modify refines models, DJI Thermal Analysis Tool 3 processes H30T radiometric images and FlightHub 2 can organize projects and media.
How much do the main bridge-inspection payloads cost in Canada?
SpeedyDrone listings checked July 21, 2026 showed Matrice 400 SP Plus Full Package at CAD $14,099, Zenmuse H30T at CAD $12,810 and Zenmuse L3 at CAD $20,225. Confirm current pricing and package contents.
- DJI Enterprise: Bridge Inspection solution
- DJI Enterprise: Matrice 400
- DJI Enterprise: Matrice 400 specifications
- DJI Enterprise: Zenmuse H30 Series
- DJI Enterprise: Zenmuse H30 specifications
- DJI Enterprise: Zenmuse H30 downloads and Thermal Analysis Tool 3
- DJI Enterprise: Zenmuse L3
- DJI Enterprise: Zenmuse L3 specifications
- Transport Canada: Advanced and sheltered operations
- Transport Canada: Level 1 Complex operations
- Transport Canada: Special drone operations
- Ontario Regulation 104/97: Standards for Bridges
- Alberta: Bridge management and inspection system
- British Columbia: Bridge Standards Manual
- SpeedyDrone Canada: Matrice 400 package
- SpeedyDrone Canada: Zenmuse H30T
- SpeedyDrone Canada: Zenmuse L3
- SpeedyDrone Canada: Enterprise solutions
This article is general planning information, not engineering, thermography, aviation, legal or bridge-inspection advice. Specifications, prices, standards and regulations can change. Follow the bridge owner’s current standards and qualified professional direction.
