Elevated deployment
Install the Relay at a high location such as a roof or hill. DJI recommends positioning it at least 2 m above the crop canopy and keeping both antennas unobstructed.

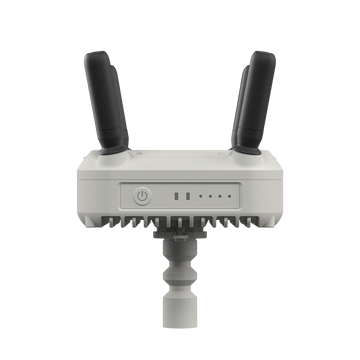

DJI Agras T50 Relay
Regular price
$1,420.00 CAD
Sale price
$1,420.00 CAD
Regular price
Unit price
Save $0.00 CAD
DJI Authorized Dealer
Genuine DJI products · Toronto pickup · Canada-wide shipping
Delivery & Pickup
- Free shipping on eligible orders over $149 CAD
- Same-day dispatch before 4:00 PM EST on business days
- Toronto showroom pickup available on select items
Overview
Shipping & Returns
This is a special order item, additional processing time, contact us for availability.
DJI AGRAS T50 · RELAY RL01-65 · CANADA
DJI Relay for AGRAS T50
Position the radio link above orchard canopies or tall crops that can obstruct a direct connection. DJI Relay helps maintain stable signal transmission between a supported DJI RC Plus remote controller and AGRAS aircraft in complex agricultural environments.
- Model RL01-65
- Up to 4 Hours
- IP55
- 2.4 GHz + 5.8 GHz
Elevated Relay Point · Clear Antennas · Linked Through DJI Agras
Official RL01-65 highlights
Built for obstructed agricultural environments
DJI recommends positioning the Relay at an elevated location to help address signal blockage in orchards or fields with tall crops. Its internal battery supports up to four hours of operation, with external USB-C power available for extended use.
≤575 g
Published product weight
4 hr
Published operating time
6500 mAh
Internal Li-ion battery capacity
IP55
Published ingress-protection rating
Maximum transmission distance is region-dependent and appears in the full specifications below. Actual performance depends on the regional configuration, local regulations, interference, terrain, installation, and operating conditions.
Why use a relay?
A clearer path between pilot and aircraft
The Relay is designed to relay the radio signal where the direct path between the remote controller and aircraft can be blocked.
Dual-band operation
The RL01-65 operates on 2.4000–2.4835 GHz and 5.725–5.850 GHz, subject to the product's regional configuration and applicable radio regulations.
USB-C charging and power
Use the USB-C port for charging, connecting a compatible mobile power supply, or firmware updates. DJI recommends a USB Power Delivery charger that meets the published input requirements.
Deployment overview
Link, activate, elevate
Initial setup is completed through the DJI Agras app. The remote controller and aircraft must already be linked before the Relay is linked and activated.
Thunderstorm restriction
DJI instructs users not to set up the Relay outdoors during thunderstorms. Keep the antennas clear and follow all instructions in the current DJI user guide.
- 1 Prepare the system Power on the supported remote controller and aircraft and confirm they are already linked.
- 2 Link in DJI Agras Keep the remote controller and aircraft within 0.5 m of the Relay. Open Device Management, choose Relay, and follow the linking prompts.
- 3 Activate before first use DJI requires first-use activation in the DJI Agras app after the Relay is linked.
- 4 Mount at an elevated point Select a clear, stable location and an appropriate extension rod. The extension rod is not included.
Compatibility
Confirm the complete system before ordering
This listing is written specifically for AGRAS T50 use. DJI's RL01-65 guide also names additional supported products, but the regional hardware, remote controller, DJI Agras version, and firmware must match.
Primary listing application
DJI Relay RL01-65 used with a compatible DJI AGRAS T50 system and DJI RC Plus remote controller.
- DJI AGRAS T50
- DJI RC Plus
- DJI Agras App
Other products listed by DJI
The April 2024 RL01-65 user guide lists the following additional aircraft under Supported Product. Confirm current firmware and regional compatibility before purchase.
- DJI AGRAS T25
- DJI AGRAS T40
- DJI AGRAS T20P
Official product parameters
DJI Relay RL01-65 specifications
Values below are transcribed from DJI's AGRAS T50 specifications and the DJI Relay User Guide v1.0.
| Model | RL01-65 |
|---|---|
| Dimensions | 120 × 110 × 100 mm |
| Weight | ≤575 g |
| IP Rating | IP55 Protection may be reduced by improper use or damage caused by external forces or environmental factors. |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Charging Temperature | 5°C to 40°C (41°F to 104°F) |
| Operating Frequency |
2.4000–2.4835 GHz 5.725–5.850 GHz 5.8 GHz is unavailable in some countries/regions. Check local regulations. |
| Maximum Transmission Distance |
7 km (FCC) 5 km (SRRC) 4 km (MIC/KCC/CE) DJI test condition: unobstructed, free of interference, and at a flight altitude of 2.5 m. |
| Power Consumption | 9 W (SRRC); 12 W (FCC) |
| Input Voltage | 9 V 3 A / 12 V 2.5 A / 15 V 2 A Use only a charger or external power supply that meets DJI's specifications. |
| Battery Type | Li-ion |
| Battery Capacity | 6500 mAh |
| Operating Time | 4 hours |
| Charging Time | Approximately 2 hours 20 minutes with a standard DJI charger |
| Supported Products Listed in Guide | AGRAS T50, AGRAS T25, AGRAS T40, AGRAS T20P, and DJI RC Plus Remote Controller Visit DJI's official website for updated support information. |
Power and installation notes
Plan the field setup, not only the device
Relay performance depends on placement, a clear antenna environment, compatible system firmware, and appropriate power accessories.
Charging cable
DJI's user guide identifies the charging cable as included.
USB charger
Not included according to the user guide. DJI recommends a USB Power Delivery charger.
Extension rod
Not included. Select a suitable height and stable installation method for the operation site.
Frequently asked questions
DJI Relay T50 FAQ
What is the exact model in this listing?
This description covers DJI Relay model RL01-65, the Relay specified by DJI for AGRAS T50. It does not use the different Relay specifications published for newer AGRAS generations.
Is this the Relay for AGRAS T100 or T55?
No. This listing covers model RL01-65. DJI lists AGRAS T50, T25, T40, T20P, and DJI RC Plus for this Relay; the Relay specifications published for the T100/T55 generation are different. Confirm the model before ordering.
What does DJI Relay do?
It relays radio signals between a supported DJI remote controller and AGRAS aircraft. DJI describes elevated deployment as a way to address signal blockage in orchards, tall crops, and other complex environments.
Does the 7 km specification mean a guaranteed 7 km field range?
No. Seven kilometres is DJI's FCC test result in an unobstructed, interference-free environment at a flight altitude of 2.5 m. Actual range varies, and the figure does not replace aircraft limits, visual-line-of-sight requirements, local laws, or site-specific risk assessment.
Is the Relay compatible with AGRAS T50?
Yes. DJI lists AGRAS T50 and the DJI RC Plus Remote Controller as supported products for RL01-65. Confirm the regional versions and current firmware before ordering.
Can one Relay transmit signals for multiple aircraft at the same time?
No. DJI states that one Relay does not support simultaneous signal transmission for multiple aircraft.
How high should the Relay be installed?
DJI recommends setting it up at least 2 m higher than the crops, with the antennas unobstructed. The location and mounting method must also be stable and appropriate for the site.
Can a power bank extend the operating time?
Yes. DJI states that total working time can be extended using a mobile power supply connected through USB-C. The external power source must meet the listed input specifications.
What should I know about the IP55 rating?
DJI publishes an IP55 rating, but also states that protection can be reduced by misuse or damage. DJI specifically instructs users not to set up the Relay outdoors during thunderstorms.
Are the charger and extension rod included?
DJI's guide states that the charging cable is included, while the USB charger and extension rod are not included. Confirm the exact regional carton contents with SpeedyDrone before purchase.
SpeedyDrone · Canada
Confirm your T50 Relay configuration
Contact SpeedyDrone with your AGRAS aircraft model, remote-controller model, region, and firmware information. We can help confirm RL01-65 compatibility and current special-order availability before the order is processed.
Specifications and compatibility are based on DJI's AGRAS T50 specifications and DJI Relay User Guide v1.0. Product support, firmware requirements, appearance, packaging, and regional configurations may change. Confirm the applicable regional SKU and current DJI documentation before use.
Transmission-distance values are DJI-published, condition-dependent figures, not guaranteed operating ranges. Always comply with applicable Canadian aviation, radio, pesticide-application, workplace, land-access, and local requirements. Operate only within the aircraft's approved limits and the operator's authorization.
DJI and AGRAS are trademarks of DJI. SpeedyDrone is an independent Canadian retailer. Product images, names, and specifications remain subject to the manufacturer's final product and documentation.
