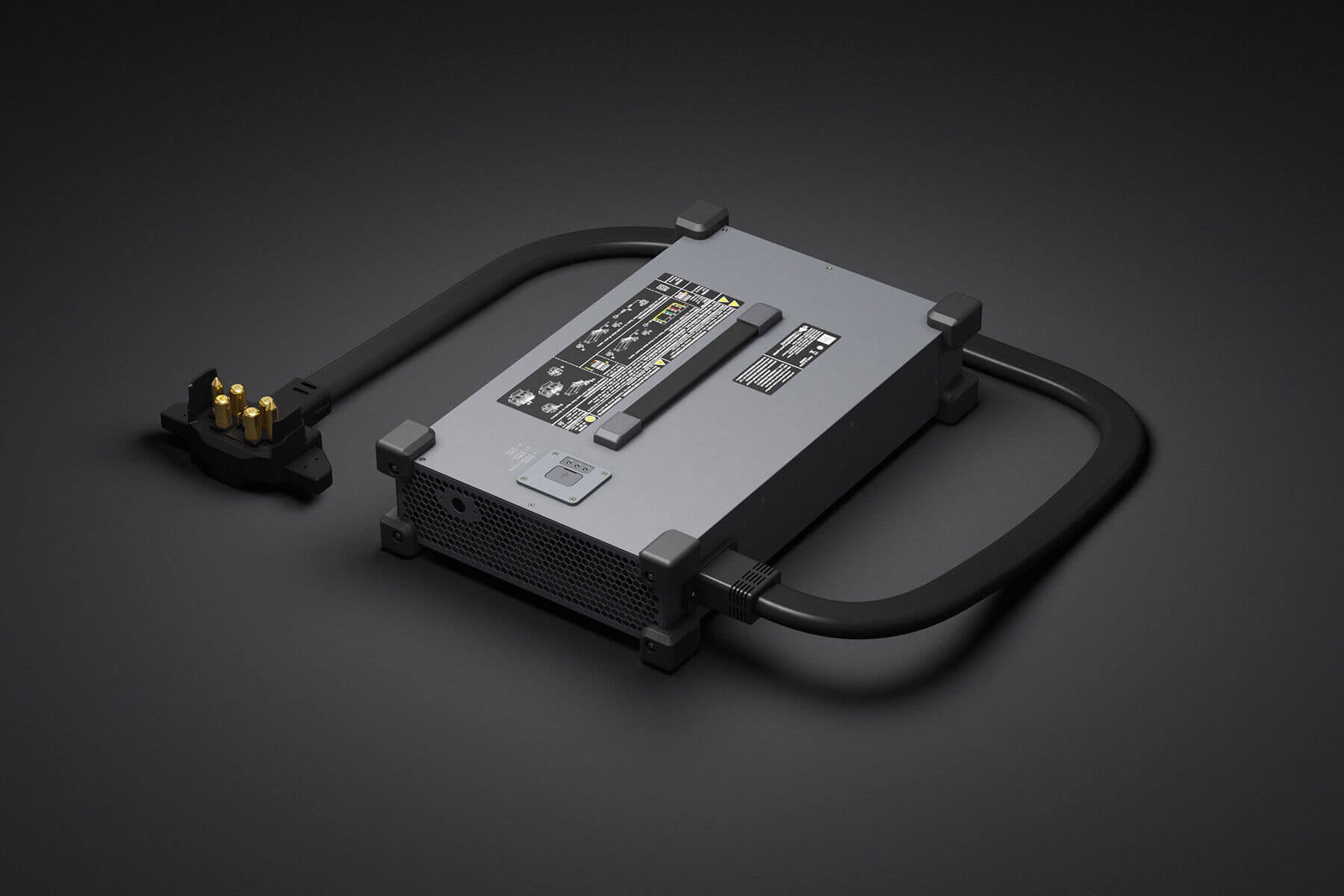

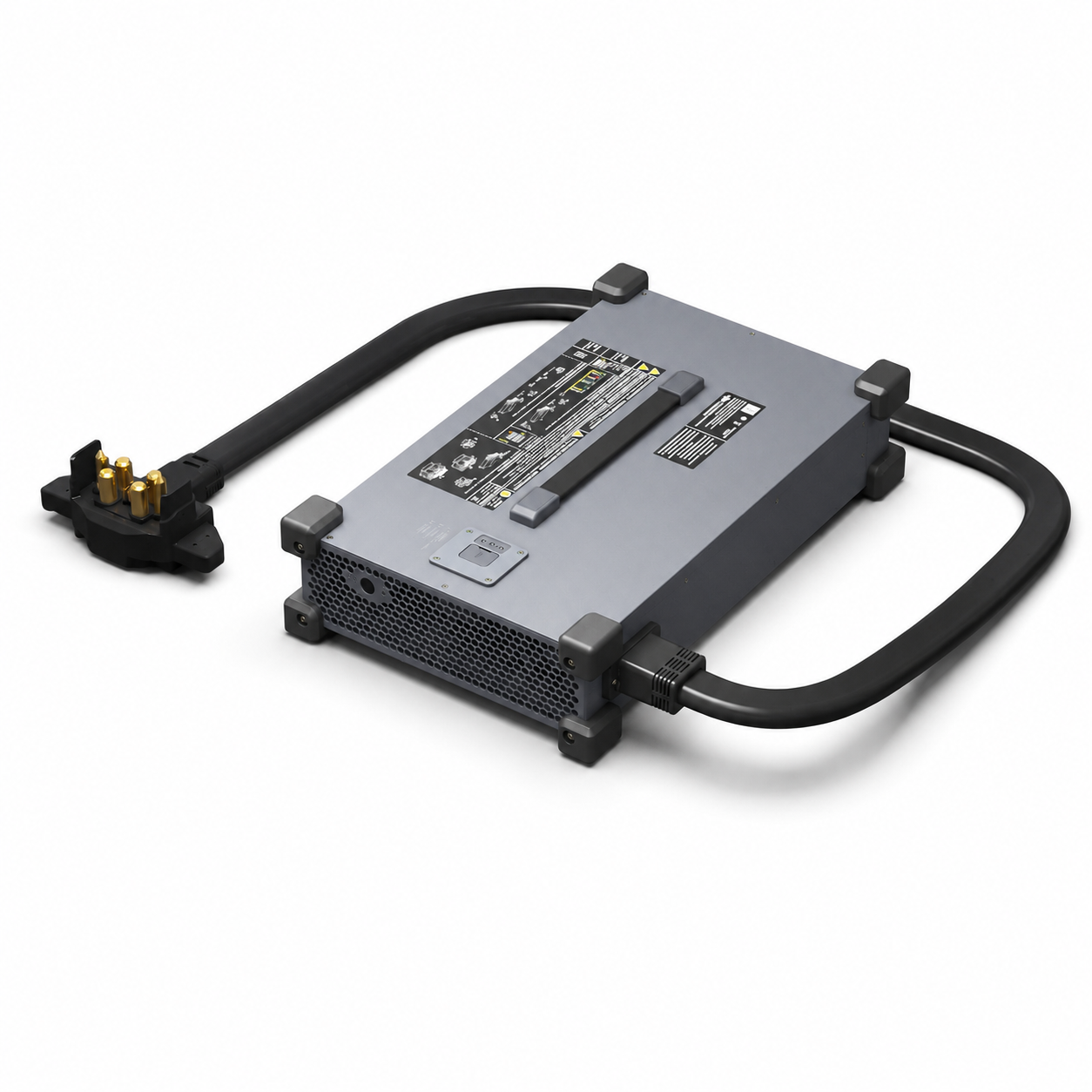

DJI Professional Power System
This single-channel intelligent charging system supports compatible DJI professional flight batteries with both three-phase and single-phase AC input.
Official DJI Specifications
Output depends on the connected AC supply. The 12,000 W rating does not apply when the charger is operated from single-phase power.
Power Requirements
The CSX901-12000 supports 175–520 VAC three-phase input at 50/60 Hz, with a maximum input current of 22 A.
The CSX901-12000 supports 200–264 VAC single-phase input at 50/60 Hz, with a maximum input current of 16 A.
DJI Reference Recharge Times
These are published fast-charging references—not complete 0%–100% charge times.
DJI test conditions: sea-level altitude, ambient temperature from 15°C to 40°C, and battery-cell temperature from 15°C to 75°C for fast charging.
Charging time varies with input power, altitude above sea level, initial charge level, and other factors. Separately, DJI states that actual output power may vary with local power-grid conditions, including distance, cable material, and wire gauge.
Technical Details
| Product name | DJI C12000 Intelligent Power Supply |
|---|---|
| Charger model | CSX901-12000 |
| Dimensions | 456 × 291 × 107 mm |
| Weight | 13.13 kg |
| Three-phase input | 175–520 VAC, 50/60 Hz, 22 A maximum |
| Three-phase output | 62 VDC, 194 A maximum, 12,000 W maximum |
| Single-phase input | 200–264 VAC, 50/60 Hz, 16 A maximum |
| Single-phase output | 62 VDC, 48 A maximum, 3,000 W maximum |
| Output channels | 1 |
| Compatible batteries | Current DJI T100/T70P specification pages: DB1580 and DB2160 Intelligent Flight Batteries. DJI's C12000 User Guide v1.0 also lists DB2100; confirm current regional compatibility before purchase. |
| Officially listed platforms | DJI Agras T100, DJI Agras T70P, and DJI FlyCart 100 power systems |
| Protection functions | Over-temperature, over-voltage, under-voltage, short-circuit, fan-stall, and other protection functions |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
The specifications above are for model CSX901-12000. DJI's C12000 User Guide also documents model CSX901-12000H, which has different output voltage and current specifications. Do not apply this table to a CSX901-12000H unit; confirm the model number on the nameplate before electrical installation or replacement.
Setup and Operation
DJI requires first-time activation through a connected remote controller in the DJI Agras app under Device Management > Charging Device.
Dedicated LEDs report the charging-channel, DC-output, and AC-input status. Warning or error details can be checked through the connected remote controller.
DJI's procedure connects the charging cable to the compatible air-cooled heat sink before the battery is placed into the heat sink.
The C12000 is not specified for a standard 120 V household outlet. Its published input range starts at 200 VAC for single-phase operation. Fast-charge wiring must be completed by a qualified electrician, and DJI specifies a 380 V three-phase supply rated at least 15 kW for its fast-charge procedure. Have the exact Canadian site supply and charger model verified before ordering or installation.
Safety Requirements
Read the current C12000 and battery documentation in full before installation or use.
Package Reference
DJI's C12000 User Guide depicts one intelligent power supply, one conversion cable, and one fast-charging cable. The slow-charging cable is identified as a separate purchase.
Regional package contents can differ. Confirm the exact contents listed near the SpeedyDrone.ca product purchase controls before ordering.
Frequently Asked Questions
No. DJI specifies 200–264 VAC for single-phase input and 175–520 VAC for three-phase input on model CSX901-12000. Standard 120 V service falls outside those published ranges.
No. DJI rates the charger at 12,000 W with three-phase 380 V input and 3,000 W with single-phase 220 V input.
Current DJI Agras T100 and T70P specification pages list the DB1580 and DB2160 Intelligent Flight Batteries as compatible with the C12000. DJI's C12000 User Guide v1.0 also lists DB2100, so DB2100 compatibility should be confirmed for the exact regional charger and battery before purchase.
No. DJI's published 8–9 minute reference is specifically from 30% to 95% under stated fast-charging test conditions. It is not a complete 0%–100% charge time.
DJI specifies one output channel for model CSX901-12000.
Yes for the fast-charging connection. DJI states that only qualified electricians wearing insulated gloves may complete that connection, and local electrical requirements must be followed.
DJI's user guide says to contact a local dealer to purchase the slow-charging cable separately. Confirm the exact Canadian package contents before ordering.
