PPP
Intended for locations without a Network RTK service. On first setup, use PPP positioning and save the station coordinates for future use at the same location.
DJI D-RTK 3 AG Module
Regular price
$2,205.00 CAD
Sale price
$2,205.00 CAD
Regular price
Unit price
Save $0.00 CAD
DJI Authorized Dealer
Genuine DJI products · Toronto pickup · Canada-wide shipping
Delivery & Pickup
- Free shipping on eligible orders over $149 CAD
- Same-day dispatch before 4:00 PM EST on business days
- Toronto showroom pickup available on select items
Overview
Shipping & Returns
This is a special order item, additional processing time, contact us for availability.
DJI Agriculture GNSS Station · Canada

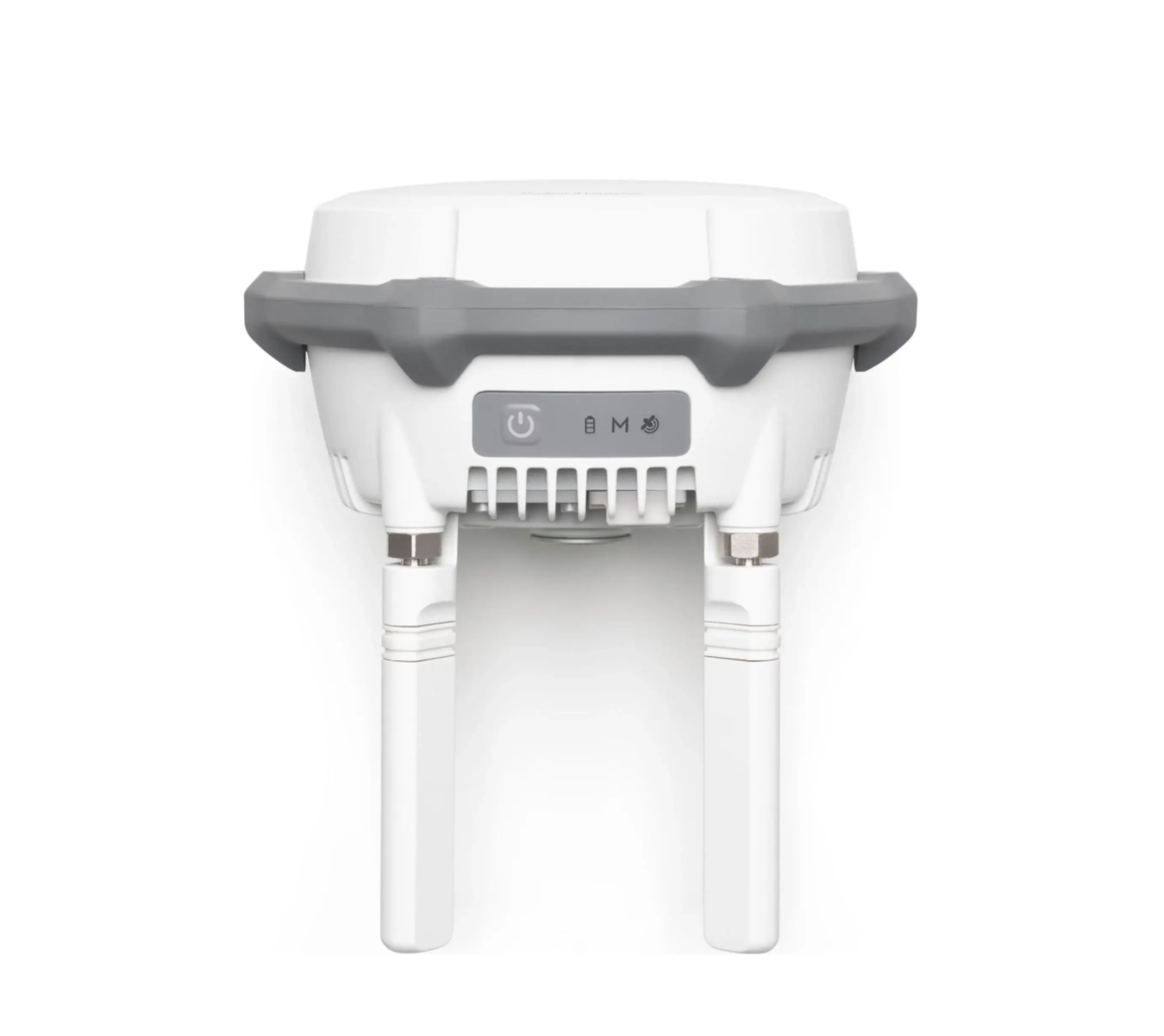

DJI D-RTK 3 AG Module
A dedicated agricultural-edition GNSS station that broadcasts RTK correction data to compatible DJI Agras aircraft through O4. It supports PPP, Network RTK, Custom Network RTK, and saved custom-coordinate positioning workflows.
- Broadcast Mode Only
- Up to 15 km DJI FCC Range*
- 7-Hour Published Runtime*
- IP67*
D-RTK 3 AG is not the Multifunctional Station
DJI's official product designation is D-RTK 3 AG. It is a complete agricultural GNSS station and supports Broadcast Mode only. Relay Station Mode and Rover Station Mode belong to the D-RTK 3 Multifunctional Station and are not available on D-RTK 3 AG.
6500 mAh
Published internal battery capacity
7 hr
DJI-published operating time*
7 W
Published power consumption
2.5 hr
Published charging time at 30 W*
Agricultural RTK Workflows
Choose the positioning source for the operating environment
D-RTK 3 AG provides multiple ways to establish the station's position before broadcasting correction data to a supported DJI Agras aircraft.
Network RTK
Network RTK or Custom Network RTK can be used where a compatible service is available. Service access, credentials, coverage, and fees are separate from this hardware.
Custom Coordinates
When returning to a location with saved coordinates, place the station at the known point and select the corresponding saved coordinate for positioning.
Published Positioning Values
Keep PPP and Network RTK calibration figures separate
PPP satellite-based service accuracy
20 min convergence 30 cm horizontal · 40 cm elevationDJI publishes these as RMS values for PPP satellite-based positioning. PPP is useful where Network RTK service is unavailable.
Network RTK calibration accuracy
0.8 cm + 1 ppm horizontal 1.5 cm + 1 ppm verticalDJI publishes these as RMS values. One ppm means an additional 1 mm of error for each 1 km between the aircraft and base station.
These are DJI-published positioning or calibration values—not guaranteed aircraft, spraying, spreading, mapping, or survey accuracy. Equipment tilt, blocked signals, multipath, satellite count and geometry, atmospheric conditions, RTK-source accuracy, and setup quality affect the result.
Compatibility
Aircraft, app, and firmware must all support D-RTK 3
Compatibility is model-, region-, and firmware-dependent. Update the aircraft, remote controller, DJI Agras app, and station as directed by DJI before use.
DJI Agras T55
D-RTK 3 AG and its specifications are published on DJI's official
T55 specification page.
DJI Agras T100
D-RTK 3 AG and its specifications are published on DJI's official
T100 specification and support pages.
DJI Agras T70P
D-RTK 3 AG and its specifications are published on DJI's official
T70P specification and support pages.
DJI Agras T25P
DJI's official T25P product page identifies D-RTK 3 AG as an
optional RTK high-precision positioning module.
DJI Agras T50 / T25
DJI's August 27, 2025 T50/T25 release notes added D-RTK 3 support.
That note does not identify the D-RTK 3 version, so confirm that
D-RTK 3 AG is the applicable station for the regional aircraft,
remote controller, app, and firmware before ordering.
Other DJI aircraft
Do not assume compatibility from the D-RTK name alone. Confirm the
exact aircraft, regional model, remote controller, and firmware with
SpeedyDrone before ordering.
Verified Specifications
DJI D-RTK 3 AG specifications
Values below are transcribed from current DJI AGRAS specification pages and the official D-RTK 3 AG documentation.
| Official designation | D-RTK 3 AG |
|---|---|
| Model | R600_AG |
| Product type | Agricultural GNSS station for RTK correction broadcasting |
| Supported operating mode | Broadcast Mode only |
| Relay Station Mode | Not supported |
| Rover Station Mode | Not supported |
| Satellite systems | GPS L1/L2/L5; BeiDou B1I/B2I/B3I/B1C/B2A/B2B; Galileo E1/E5a/E5b/E6; GLONASS G1/G2; QZSS L1CA/L2C/L5; L-Band |
| DJI-published dimensions | 345 × 244 × 300 mm |
| DJI-published weight | 3.77 kg, including packaging |
| Power consumption | 7 W |
| Battery capacity | 6500 mAh |
| Operating time | 7 hours, DJI-published value |
| Broadcast frequency | O4: 2.4 GHz / 5.8 GHz, subject to local regulations |
| Effective signal range | FCC: 15 km; SRRC: 12 km; CE/JP: 8 km. Actual permitted configuration and range vary by region and operating environment. |
| Charging time | 2.5 hours with 30 W charging, DJI-published value |
| Recommended charging input | USB PD 3.0 charger, 9–15 V; DJI lists its 65W Portable Charger as an example |
| Operating temperature | −30°C to 55°C; a compatible PD charger must be connected to power the station when operating below −20°C |
| Ingress protection | IP67 under DJI-specified conditions; protection is not permanent and may decrease through wear, damage, or improperly secured ports |
| Mounting interface | 5/8"-11 UNC threaded hole |
Deployment Requirements
Correct site selection is part of RTK performance
- Use an open sky view Avoid trees and buildings within the area extending more than 15° above the antenna's horizontal plane.
- Reduce radio interference DJI specifies at least 200 m from high-power radio transmitters and at least 50 m from high-voltage transmission lines.
- Avoid multipath locations Keep away from large bodies of water and objects that strongly reflect or interfere with satellite reception.
- Level and secure the station Use the separately sold survey-pole and tripod kit. If the station or tripod is moved or its angle changes, set it up again.
- Activate before first use Charge the internal battery, connect through DJI Agras, and keep the remote controller online during activation.
- Protect ports and antennas Keep port covers secured, prevent foreign material from entering, and do not obstruct the antennas while operating.
Do not deploy by range alone
The published link distance does not replace a clear RF path, proper GNSS sky view, legal frequency use, or accurate station calibration. Stop and reassess the installation if conditions do not meet DJI's current manual.
Package & Required Accessories
Confirm the Canadian sealed-carton contents before ordering
This listing covers
The complete DJI D-RTK 3 AG agricultural station. It does not cover an internal repair board or a component removed from another D-RTK product. Exact sealed-carton contents and the current regional part number should be confirmed with SpeedyDrone.
Sold separately / not represented as included
- D-RTK 3 Survey Pole and Tripod Kit
- USB PD 3.0 charger, including DJI 65W Portable Charger
- Network RTK or Custom Network RTK service and credentials
- Compatible DJI Agras aircraft and remote controller
Frequently Asked Questions
Before you order
Is D-RTK 3 AG the same as the D-RTK 3 Multifunctional Station?
No. D-RTK 3 AG is the agricultural edition and supports Broadcast Mode only. The Multifunctional Station additionally supports Relay Station Mode and Rover Station Mode.
Does D-RTK 3 AG extend video-transmission range as a relay?
No. DJI explicitly lists Relay Mode as unsupported for D-RTK 3 AG. Do not confuse the station's RTK broadcast range with a video relay.
Which DJI Agras aircraft are compatible?
DJI directly publishes D-RTK 3 AG for T55, T100, T70P, and T25P. DJI's August 27, 2025 T50/T25 release notes added D-RTK 3 support, but that statement does not identify the D-RTK 3 version. Confirm the applicable station version, exact regional aircraft, remote controller, app, and firmware before purchase.
Does the 15 km FCC figure apply automatically in Canada?
No unconditional Canadian range is stated here. DJI publishes 15 km for FCC, 12 km for SRRC, and 8 km for CE/JP. The permitted band, regional configuration, obstruction, interference, antenna placement, and deployment conditions determine actual range.
Does it provide guaranteed centimetre-level aircraft accuracy?
No. DJI publishes Network RTK calibration values of 0.8 cm + 1 ppm horizontal and 1.5 cm + 1 ppm vertical, but real results depend on the RTK source, setup, environment, satellites, multipath, atmospheric conditions, aircraft, and mission.
Can it be positioned without Network RTK service?
Yes. DJI provides a PPP positioning workflow for locations without Network RTK. DJI publishes a 20-minute convergence time and PPP RMS values of 30 cm horizontal and 40 cm elevation. Saved custom coordinates can be used when returning to the same known location.
Are the survey pole and tripod included?
DJI's D-RTK 3 AG User Manual identifies the Survey Pole and Tripod Kit as sold separately. Contact SpeedyDrone to confirm the exact Canadian package and add the deployment kit if required.
Can the station be moved after it has been levelled?
Do not move the tripod or change the station's angle after levelling. If either changes, the station must be set up again according to DJI's instructions.
What charger should be used?
DJI specifies a USB PD 3.0 charger with 9–15 V output and lists the DJI 65W Portable Charger as an example. A charger is not represented as included in this listing.
SpeedyDrone · Canada
Verify your complete AGRAS RTK configuration
Contact SpeedyDrone with the aircraft model, remote-controller model, firmware version, intended deployment location, and RTK source. We can confirm current availability and identify the separately required mounting and charging equipment.
Special-order positioning equipment
Additional processing time applies. Compatibility, regional part
number, and sealed-carton contents must be confirmed before purchase.
