Overview
Shipping & Returns
DJI AGRAS T100 · Optional Four-Sprinkler Configuration · Canada
DJI T100 Mist Nozzle Package
The official T100 accessory package for adding two mist sprinkler assemblies to the AGRAS T100 LS100 spraying system, supporting DJI's optional four-sprinkler configuration and up to 40 L/min maximum system flow.
- 2 Mist Sprinkler Kits Included
- Optional 4-Sprinkler Configuration
- Up to 40 L/min System Flow*
- Dealer Installation Required
40 L/min is a complete-system value.
DJI specifies 40 L/min maximum flow for the complete T100 LS100 spraying system in its optional four-sprinkler configuration. It is not the flow rate of one mist sprinkler. Actual spray performance varies with the liquid, settings, operating conditions, and correct calibration.
Four-Sprinkler T100 Configuration
Higher maximum flow for the LS100 system
DJI lists the T100's standard two-sprinkler configuration at a maximum of 30 L/min and the optional four-sprinkler configuration at a maximum of 40 L/min.
The complete T100 spraying system has a published droplet-size range of 50–500 μm and an effective spray-width range of 5–13 m. Effective width depends on the actual operating scenario.
Configuration Reference
Standard versus optional T100 setup
These values describe the complete DJI AGRAS T100 spraying configurations published by DJI.
Two Sprinklers
- Published nozzle model LX07550SX
- Sprinkler quantity 2
- Maximum system flow 30 L/min
- T100 spraying weight 75 kg
- Maximum takeoff weight 175 kg
Four Sprinklers
- Published mist-nozzle model LX09550SX
- Sprinkler quantity 4
- Maximum system flow 40 L/min
- T100 spraying weight 77 kg
- Maximum takeoff weight 177 kg
The 75/77 kg and 175/177 kg figures are aircraft-configuration values, not the weight of the accessory package. DJI also lists 1834 mm nozzle spacing for the two-sprinkler configuration or between the outermost sprinklers in the four-sprinkler configuration.
Official Specifications
T100 mist-nozzle configuration
Accessory-box facts and resulting T100 LS100 system values are separated below to prevent misleading comparisons.
| Official Document Name | T100/T70 Series Mist Nozzle Package |
|---|---|
| Listing Configuration | T100 package list only |
| Compatible Platform | DJI AGRAS T100 with LS100 Spraying System |
| Mist Sprinkler Assemblies Supplied | 2 Mist Sprinkler Kits, each including one solenoid valve |
| Resulting Sprinkler Configuration | Optional four-sprinkler T100 configuration |
| Optional Mist-Nozzle Model | LX09550SX |
| Maximum Flow Rate | 40 L/min for the complete four-sprinkler LS100 system |
| Droplet-Size Range | 50–500 μm for the T100 spraying system |
| Effective Spray Width | 5–13 m for the T100 spraying system; depends on the actual operating scenario |
| Nozzle Distance | 1834 mm between the outermost sprinklers in the four-sprinkler configuration |
| Installation | Must be completed by an officially authorized dealer |
| Post-Installation Requirement | Flow calibration in the DJI Agras app |

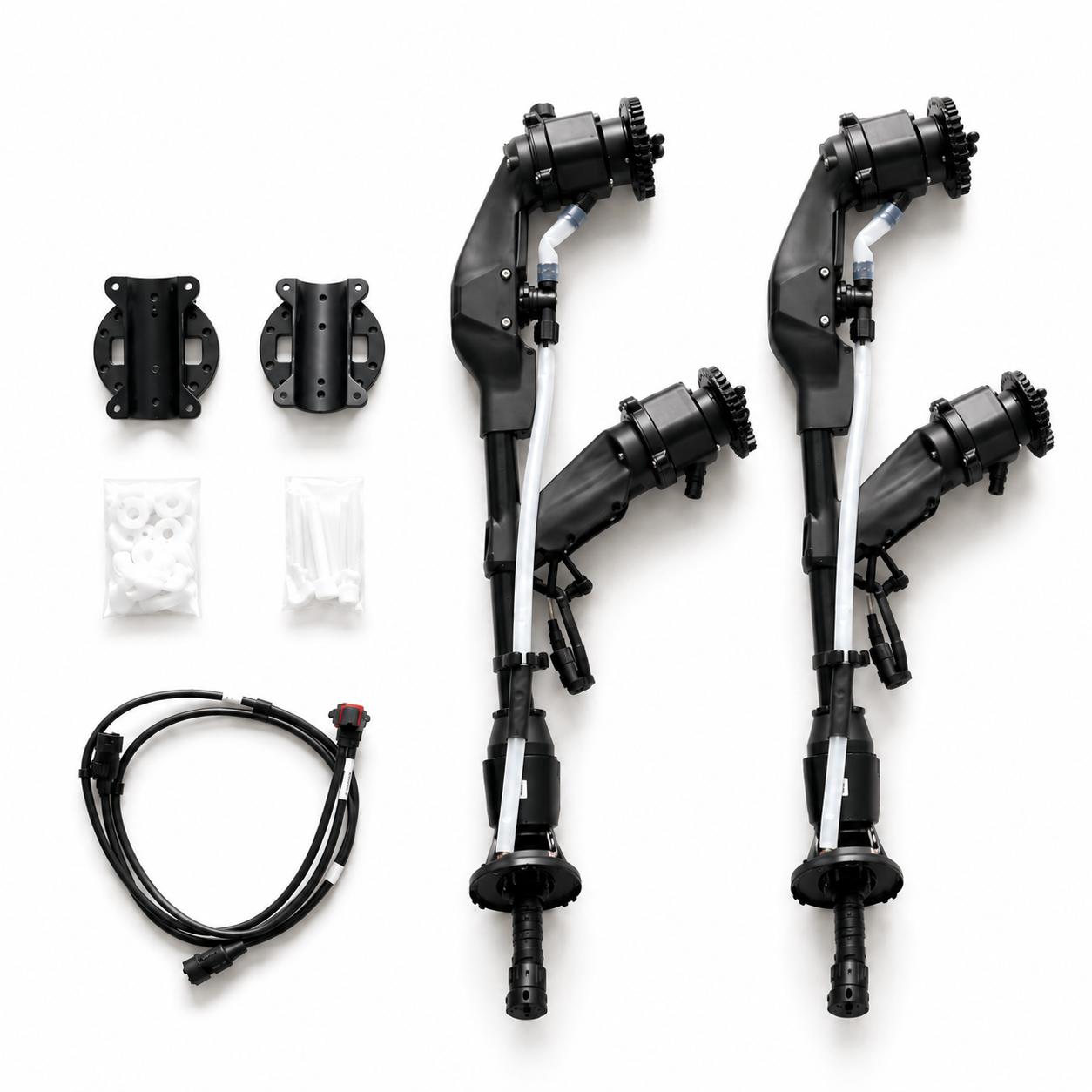

T100 Package Contents
DJI's published T100 list
The quantities below are taken directly from the T100 section of DJI's official package document.
Mist Sprinkler Kit × 2
Each assembly includes one solenoid valve.
Spray Lance Bracket × 2
Two mounting brackets are shown in the T100 package list.
Inner Sprinkler Hose × 2
Two inner sprinkler hoses.
Short Sprinkler Hose × 2
Two short sprinkler hoses.
Inner Sprinkler Adapter Cable × 1
One inner sprinkler adapter cable.
Accessories Pack
DJI shows an accessories pack without printing a separate quantity or detailed sub-item list.
This is the T100 package list. Do not substitute the separate T70 Series list shown in the same DJI document. Final supplied items should also be checked against the sealed carton and SpeedyDrone invoice.
Installation & Operation
DJI-required steps and precautions
Authorized installation only
DJI states that the product may only be installed by an officially authorized dealer. Users should not perform the installation themselves.
Calibrate flow after installation
Complete delivery-pump flow calibration in the DJI Agras app after the sprinklers are mounted or replaced.
Protect aircraft ingress performance
Confirm that every component is installed correctly and securely. Improper mounting can affect the aircraft's ingress-protection performance.
Clean cameras and landing gear
Spray droplets can affect the vision system. Clean its cameras before and after spraying, and remove liquid residue from the landing gear after operation.
Frequently Asked Questions
Before you order
Does this package contain four new mist sprinkler assemblies?
No. DJI's T100 package list contains two Mist Sprinkler Kits. The package supports the T100's resulting optional four-sprinkler configuration.
Does each sprinkler deliver 40 L/min?
No. The 40 L/min figure is DJI's maximum flow rate for the complete T100 LS100 system with the optional four-sprinkler configuration.
What is the mist-nozzle model?
DJI lists LX09550SX as the optional mist-nozzle model for the T100 spraying system.
Can the customer install this package?
No. DJI's product information states that installation may only be completed by an officially authorized dealer.
Is calibration required?
Yes. Flow calibration in the DJI Agras app is required after installation.
Is this the same package list as the T70 Series version?
No. DJI publishes separate T100 and T70 Series contents in the same product-information document. This listing uses only the T100 package list.
Is 5–13 m a guaranteed spray width?
No. DJI lists 5–13 m as the effective width of the T100 spraying system and states that effective spray width depends on the actual operating scenario.
SpeedyDrone Canada
Confirm compatibility and installation
Contact SpeedyDrone for Canadian availability, T100 compatibility confirmation, package inspection, authorized installation, and post-installation DJI Agras app calibration.
Product information is based on DJI's official documentation available at the accuracy-review date shown in the source comment. Specifications, package contents, and compatibility may change without notice. Follow the latest DJI documentation, the label and directions for every spray liquid, and all applicable local laws and regulations. The DJI AGRAS T100 aircraft, LS100 Spraying System, battery, charger, and other equipment are sold separately unless expressly included in the SpeedyDrone product title or invoice.
