Two standard nozzles
The published standard configuration uses two LX07550SX nozzles with a maximum combined flow rate of 30 L/min.
- Quantity: 2
- Nozzle model: LX07550SX
- Two magnetic-drive impeller pumps
DJI Agras T100 Spraying System with Air-Cooled Heat Sink
Regular price
$8,000.00 CAD
Sale price
$8,000.00 CAD
Regular price
Unit price
Save $0.00 CAD
DJI Authorized Dealer
Genuine DJI products · Toronto pickup · Canada-wide shipping
Delivery & Pickup
- Free shipping on eligible orders over $149 CAD
- Same-day dispatch before 4:00 PM EST on business days
- Toronto showroom pickup available on select items
Overview
Shipping & Returns
SpeedyDrone Bundle · DJI Agras T100 · Canada

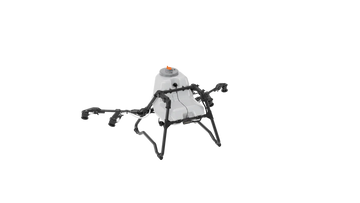

DJI Agras T100 Spraying System (LS100) + Air-Cooled Heat Sink
This bundle pairs the 100 L LS100 liquid-application system with a separate battery-cooling accessory used in the DB2160 charging workflow.
- 100 L HDPE Tank
- 30 L/min Standard Flow
- Air-Cooled Battery Heat Sink
Two separate components, two distinct jobs
The LS100 Spraying System mounts to the DJI Agras T100 for liquid application. The Air-Cooled Heat Sink is a ground-based accessory that dissipates heat from a DB2160 Intelligent Flight Battery during charging. It is not built into the spraying assembly and does not cool the spray pumps.
100 L
HDPE spray-tank volume
30 L/min
Maximum flow with the standard two-nozzle system
5–13 m
Effective spray-width range; actual width is scenario-dependent
50–500 μm
Published droplet-size range
Standard vs. Optional
Know which flow rate is included
DJI publishes two T100 nozzle configurations. The standard LS100 is the two-nozzle, 30 L/min system; 40 L/min requires the optional four-nozzle configuration.
Four-nozzle configuration
DJI lists LX09550SX as the optional mist-nozzle model and publishes a 40 L/min maximum flow rate for the optional four-nozzle setup.
- Quantity: 4
- Optional mist nozzle: LX09550SX
- Optional package is not the standard included setup

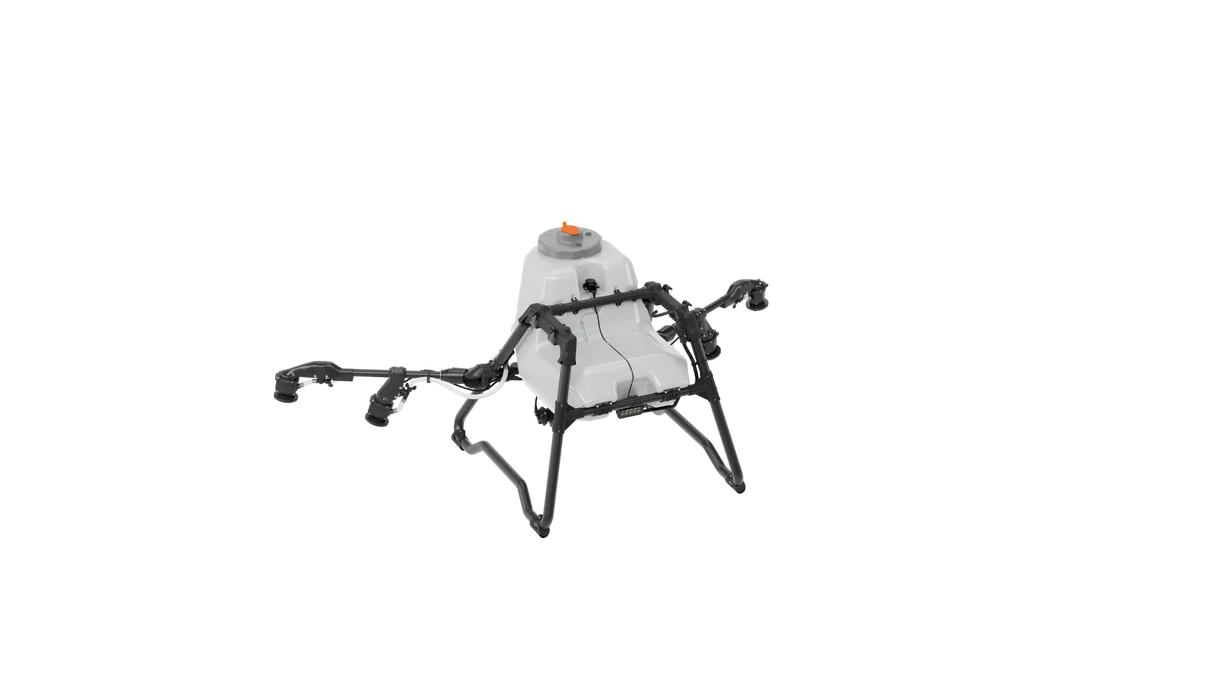

LS100 Spraying System
High-volume liquid application for the T100
100 L HDPE tank
The LS100 uses an HDPE tank with a published 100 L volume and a 100 kg operating payload measured at sea level.
Dual magnetic-drive pumps
Two magnetic-drive impeller pumps support the standard 30 L/min maximum flow and the optional 40 L/min configuration.
Adjustable droplets
DJI publishes a droplet-size range of 50–500 μm for the T100 spraying system.
Wide application range
Effective spray width is listed at 5–13 m. Actual width depends on the working scene, setup and operating conditions.
Single-side spraying
The T100 can activate the nozzle closest to a field boundary or an obstacle when turning or bypassing, helping manage edge application.
T100-specific compatibility
DJI states that the T100 and DJI Agras T50 spraying systems are incompatible and should not be treated as interchangeable.

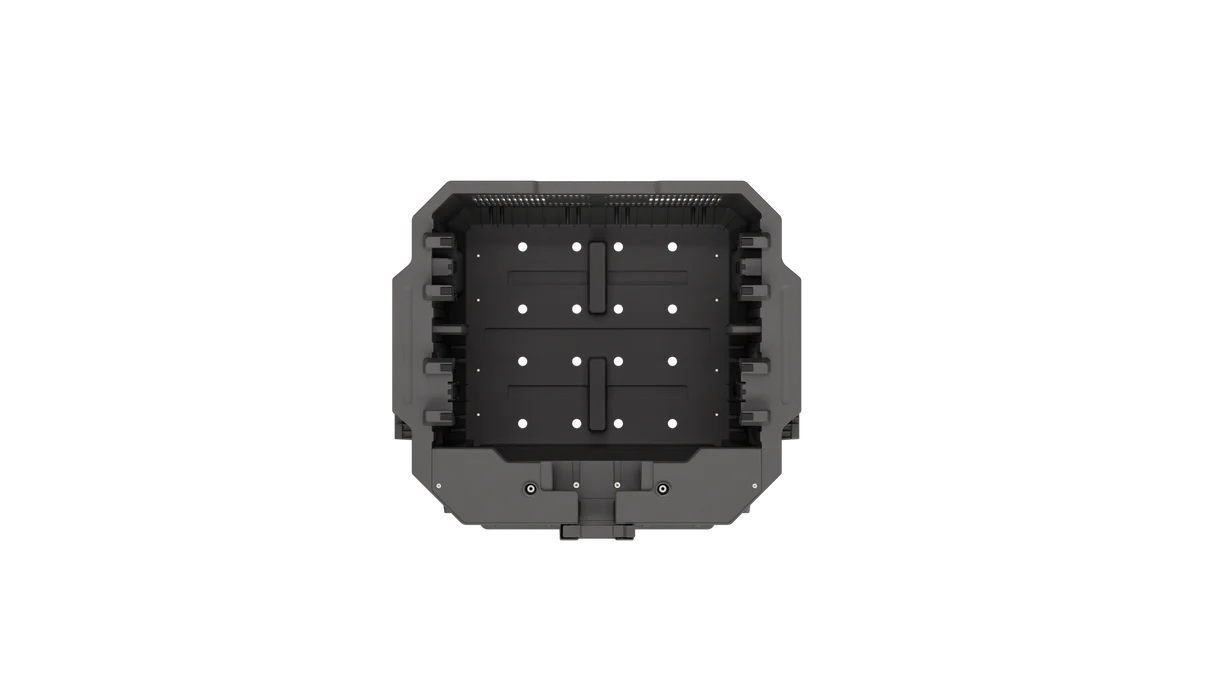

Air-Cooled Battery Heat Sink
Manage post-flight battery heat during charging
Battery temperature is high after flight. DJI instructs users to place the battery in the official Air-Cooled Heat Sink or a third-party heat-dissipation device for charging; otherwise, charging may not be allowed.
Temperature-responsive operation: the heat sink
activates automatically according to battery temperature.
Charging temperature: DJI lists 0°C to 60°C,
with 22°C to 28°C identified as the ideal range.
One battery at a time: otherwise, heat
dissipation will be affected.
Cooling, not charging: the heat sink dissipates
battery heat; a compatible DJI charger or charging generator
supplies the charging power.
Official DJI Specifications
DJI T100 LS100 technical details
| Spraying-system model | LS100 |
|---|---|
| Aircraft compatibility | DJI Agras T100 |
| Dimensions — spray rod folded | 880 × 870 × 810 mm |
| Dimensions — spray rod unfolded | 1020 × 1930 × 810 mm |
| Tank material | HDPE |
| Tank volume | 100 L |
| Operating payload | 100 kg, measured at sea level; follow the DJI Agras app's recommended load for the current aircraft, environment and task |
| Standard nozzle | LX07550SX |
| Optional mist nozzle | LX09550SX |
| Nozzle quantity | 2 standard / 4 optional |
| Nozzle distance | 1834 mm for two nozzles or between the outermost nozzles in the four-nozzle setup |
| Droplet-size range | 50–500 μm |
| Effective spray width | 5–13 m; actual width depends on the working scene |
| Pump type | Magnetic-drive impeller pump |
| Pump quantity | 2 |
| Maximum flow rate | 30 L/min with 2 standard nozzles / 40 L/min with 4 optional nozzles |
These specifications describe the standard LS100 Spraying System. They are not the specifications of the separate LS100-DB Dual-Battery Spraying System. DJI may update product specifications and package revisions; the supplied product label and current DJI documentation remain controlling.
Listing Scope
Two separately named DJI components
This SpeedyDrone bundle is intended to pair the LS100 Spraying System with a separate Air-Cooled Heat Sink. Confirm both items against the distributor invoice and carton labels before publication.
T100 LS100 Spraying System
Standard spraying configuration with a 100 L tank and two standard nozzles. The optional four-nozzle mist configuration is separate.
Air-Cooled Heat Sink
Separate battery heat-dissipation accessory used in the DB2160 charging workflow.
Aircraft compatibility
The LS100 is the DJI T100 Spraying System. DJI states that the T100 and T50 spraying systems are incompatible.
Charging-power requirement
The heat sink does not provide charging power. Charging requires a compatible DJI charging power supply or inverter generator configured for the battery and region.
DJI's public documentation does not provide a Canada-specific textual BOM for this standalone accessory bundle. Confirm supplied contents from the distributor invoice and carton label.
Operation and Care
Follow the current DJI manuals and chemical labels
Before spraying, inspect hoses and connections for blockage or
leakage and confirm that each nozzle operates normally.
Clean the nozzles promptly after use. Filter the mixed solution and
follow DJI's instructions to reduce the risk of system blockage.
Do not use strong acids, strong bases, high-temperature liquids or
pesticides that are explicitly prohibited.
Wear appropriate personal protective equipment, remain upwind where
practical and prevent contamination of waterways and drinking-water
sources.
Do not wash the Air-Cooled Heat Sink with water. Keep the protective
mesh and fan clean and follow the current T100 manual.
Do not step on the heat sink when removing a battery. Disconnect its
charging cable before transporting it with a battery installed.
Build the right T100 configuration for Canada
Confirm your aircraft revision, standard or optional nozzle setup, DB2160 battery plan and compatible charging equipment before ordering. Contact SpeedyDrone to confirm the exact supplied items and the correct T100 configuration.
Frequently Asked Questions
DJI T100 spraying-system FAQ
Does the Air-Cooled Heat Sink cool the spraying system?
No. It is a separate DB2160 battery-cooling accessory used during charging. It is not integrated into the LS100 and does not cool its pumps or spraying components.
Is the standard LS100 flow rate 30 L/min or 40 L/min?
The standard two-nozzle system is rated for a maximum of 30 L/min. The 40 L/min figure applies only to the optional four-nozzle configuration.
Is the optional four-nozzle mist package included?
It is not part of the standard two-nozzle specification. Treat the mist-nozzle package as optional unless it is expressly listed in the selected SpeedyDrone product option.
Can the T100 and T50 spraying systems be interchanged?
No. DJI states that the two spraying systems are incompatible; do not treat the LS100 as a T50-compatible replacement.
Is the 5–13 m spray width guaranteed in every operation?
No. DJI lists 5–13 m as the effective range and states that the actual spray width depends on the working scene.
Does the 100 kg payload apply in every environment?
No. DJI measured the figure at sea level. The DJI Agras app recommends an allowable load based on aircraft status, environmental conditions and the task. Do not exceed the app's recommended maximum.
Is this the LS100-DB Dual-Battery Spraying System?
No. The specifications on this page are for the standard LS100. The LS100-DB is a separate dual-battery spraying-system configuration with different dimensions and payload data.
Specifications reviewed against official DJI Agras T100 documentation on
July 23, 2026. Product appearance, regional packaging and specifications
are subject to DJI's current documentation and the actual product supplied.
