DJI Terra LiDAR Quality Report Guide: Checkpoint RMSE, IMU Trajectory Error, Point Cloud Quality & Accuracy Control

Read a DJI Terra LiDAR Quality Report against three things: the actual deliverable, independent checkpoint measurements and the project’s acceptance requirements. Start with the job and reference system, then examine acquisition, trajectory, processing and geometry before interpreting RMSE. A completed reconstruction records successful processing; it does not establish that a survey result meets the required accuracy.

The essential distinctions are straightforward: RMSE is not maximum error; point-cloud thickness is not absolute positional accuracy; control points influence a solution while independent checkpoints test it; and DJI’s published accuracy figures are not measurements of your project. A small number is useful only when its units, axis, reference and sample population are understood.

This guide is for teams using Terra to review LiDAR work before delivery. If you are selecting software, the DJI Terra Standard listing at SpeedyDrone provides the dealer purchase path; confirm the licence and functions required for your payload and workflow. This is not a claim that every LiDAR processing function requires that licence.

DJI software, technical documentation and dealer offers rechecked October 7, 2026. DJI’s download page lists Terra V5.3.5, released August 20, 2026. The linked report-reading PDF is dated October 10, 2023. Fields and layouts depend on version, payload, task and enabled functions; historical examples below are labelled accordingly.

In this guide

01. A practical report-reading order

Start with the deliverable and its acceptance specification. Then trace evidence from the raw acquisition to the exported revision. Coordinate definitions belong near the beginning of this review—not only after an unexplained residual appears.

  1. Identify the deliverable. State whether the review covers a point cloud, classified ground, DEM or another export. Record the area, intended use, acceptance method and required error components.
  2. Match the exact revision. Record mission, acquisition dates, payload, Terra version, raw-data folders and export revision. Confirm that the report belongs to the files being handed over.
  3. Resolve coordinates first. Confirm axis order, units, projection, horizontal datum, height datum, geoid model and any local transformation. Retain the actual definitions rather than a screenshot of similar dropdowns.
  4. Check reference roles. Separate adjustment control from independent checkpoints. Keep survey method, uncertainty, point IDs and distribution; reconcile imported and evaluated counts before trusting a summary.
  5. Check acquisition completeness. Review coverage and valid sensor recording periods. Locate gaps or missing raw files, particularly in critical areas, while reacquisition remains possible.
  6. Trace positioning through time. Review positioning status, trajectory components and warnings against the flight path. Identify which output areas use corrected trajectories or lose points.
  7. Record the processing choices. Retain calibration, accuracy optimization, smoothing, filtering, classification and export settings relevant to this output. Keep a baseline when investigating changes.
  8. Inspect the actual geometry. Examine strip joins, representative profiles and critical features. Locate holes, noise, vegetation leakage and problematic reflective or water surfaces rather than relying on an overview.
  9. Read individual residuals. Check signs, locations, reference surfaces and unexplained outliers. Decide whether an anomaly is local, systematic or tied to a particular flight strip.
  10. Interpret each statistic. Identify axis, units and sample population. Read checkpoint count, RMSE, signed pattern and largest discrepancies together; separate point-cloud checks from downstream surface checks.
  11. Investigate before changing data. Use the symptom matrix below to organize review. Document the reason for any correction or exclusion and retain the original evidence; do not tune only for a smaller number.
  12. Decide and retain the evidence. Compare relevant checks and coverage with agreed requirements. Record acceptance, review or corrective work with the reviewer, exact revision, scope and unresolved limitations.

A point-cloud check does not automatically validate a subsequently edited terrain surface or volume. For the downstream handoff, see the L3 and Terra deliverables guide. For quantity work, the stockpile workflow guide addresses surface and volume decisions separately.

02. Flight Task Quality Report vs Terra reconstruction report

These reports belong to different stages. The flight-side report helps decide whether acquisition produced usable data while a return to the site may still be practical. Terra’s reconstruction report records what happened during processing and the available accuracy checks. Neither should be mistaken for a substitute for the other.

For example, DJI describes the L2 Task Quality Report in terms of valid recording durations for the LiDAR, camera and IMU. That is valuable acquisition evidence, but it is not an independent measurement of the finished surface against surveyed coordinates.

Terra’s LiDAR report can include flight parameters, IMU trajectory error, processing settings and checkpoint results. A missing checkpoint section does not mean zero error: first establish whether checkpoints were imported, retained as checks and actually evaluated. Similarly, do not expect every report to contain a fixed field named “Point Cloud Thickness”; that concept also appears in product specifications and processing discussions.

On small screens, scroll inside the table to read each complete column.

Read the evidence in four layers
Layer Question to answer Evidence to retain
Acquisition Did the required area and sensors record usable data? Task report, raw files, flight coverage and gaps
Trajectory / positioning Is the position-and-orientation solution credible throughout the mission? Positioning status, trajectory plots, warnings and base information
Reconstruction Did the chosen processing preserve usable geometry? Settings, strip joins, profiles, classification and exclusions
Independent checks How does the deliverable compare with suitable reference measurements? Checkpoint roles, residuals, statistics and acceptance decision

03. Control points and checkpoints: keep their jobs separate

Control improves the solution; checkpoints test it independently. Once a reference point has been used to adjust the result, its small residual cannot also serve as an untouched test of that same adjustment. Keep the assigned roles in the project record, including any changes made during troubleshooting.

There is an important LiDAR-specific detail. In DJI’s current LiDAR parameter documentation, control points support elevation control using their planar positions, and checkpoints test elevation in a surrounding point-cloud neighbourhood. They do not require the manual image marking used for visible-light reconstruction. Do not describe this automatic elevation check as if it independently measured horizontal accuracy as well.

Reference selection also matters. Plan the number and distribution of checkpoints to suit the area, terrain, deliverable and governing project specification. A convenient cluster beside the launch point cannot demonstrate uniform quality across distant flight strips, slopes and land-cover changes. A single excellent checkpoint is evidence at that sampled location, not proof of the entire site.

Use stable, well-defined reference locations with a documented survey method and uncertainty. DJI’s LiDAR control/check guidance calls for flat, clear surroundings without overhead obstructions. A neighbourhood containing a kerb, vegetation or loose material may compare a different surface from the one the surveyor intended.

DJI Terra version 3.9.0 official sample report with the control-point error summary and individual control-point list highlighted
DJI’s official Terra V3.9.0 example highlights control-point results. These are not an independent checkpoint certificate. Historical interface shown for orientation; do not use its sample values as project tolerances. Scroll the image on a small screen.Open the full DJI report image →

04. What does checkpoint RMSE actually mean?

RMSE—root mean square error—summarizes the magnitude of a set of residuals by squaring them, averaging the squares and taking the square root. The squaring makes larger discrepancies influential; positive and negative errors do not cancel as they can in a signed average. The USGS LiDAR glossary provides the statistical definition and distinguishes independent checkpoints from control.

For vertical residuals, define e as reconstructed elevation minus reference elevation. If a surveyed location is 100.000 m and the corresponding reconstructed surface is 100.045 m, the residual is +0.045 m, or +4.5 cm. This is an illustrative calculation, not measured DJI data.

RMSE = √[(e₁² + e₂² + … + eₙ²) / n]

Use one consistent unit and one clearly identified error component. Here, n is the number of evaluated checkpoints.

One RMSE does not describe every checkpoint

Designed for this guide. Illustrative signed vertical residuals, not measured DJI data.

CP1+1 cm
CP2+2 cm
CP3+2 cm
CP4+3 cm
CP5+10 cm
RMSE = √(118 / 5) ≈ 4.86 cm. Maximum absolute residual = 10 cm. Mean signed residual = +3.6 cm. All five points remain in the calculation.

The 4.86 cm result does not erase the 10 cm discrepancy. Inspect that point’s identity, reference measurement, surface neighbourhood and location relative to flight strips. Check whether it is an isolated problem or part of a spatial pattern. Do not remove a point simply because the headline statistic improves without it.

Signed residuals add another clue. If most have the same sign, investigate a systematic offset rather than treating the problem as random surface noise. Record any justified exclusion, the reason, the original result and the recalculated result. If checkpoints are repeatedly used to tune the solution, obtain appropriate held-out validation rather than continuing to call the tuning set independent.

Check the axis—and the population—before comparing two numbers

Vertical RMSE describes elevation differences. Horizontal RMSE concerns planimetric position, and 3D statistics combine different components. A vertical result cannot establish either of the others. Nor does “3 cm RMSE” mean every point is within 3 cm, or that a particular confidence interval has been demonstrated.

In DJI’s published report-reading PDF, the LiDAR checkpoint summary uses altitude differences across checkpoints. Individual checkpoint rows also contain statistics for nearby reconstructed points. A row’s local “Altitude Difference RMSE” and the overall checkpoint RMSE therefore need not describe the same sample population. Read the section heading and definition, not just the column abbreviation.

Finally, a software residual statistic is not necessarily the complete accuracy calculation required by a contract. The acceptance method may also account for uncertainty in the reference survey, distinct surface classes or a different comparison method. Keep point-cloud checks separate from checks on an interpolated DEM or other downstream deliverable.

05. How should you read IMU trajectory error and RTK status?

LiDAR measurements need the sensor’s position and orientation to place each return in space. Trajectory information helps diagnose that positioning chain; it is not the same measurement as comparing a finished surface with independent ground references. Preserve the units and component labels shown in your report—position and attitude are not interchangeable quantities.

DJI’s historical Terra release notes identify IMU Trajectory Error among the LiDAR report additions. They do not establish a universal numeric pass/fail threshold for every L2 or L3 mission. Use version-specific documentation and the project’s requirements; do not invent a green/yellow/red centimetre scale.

Process history can matter even when reconstruction finishes. The current Terra exception guide describes “Poor” trajectory status where affected points have been removed, and “From Photos” where aerotriangulation has been used to improve the trajectory. Investigate which area and output were affected instead of treating either a completed job or a corrected trajectory as automatic acceptance.

RTK FIX is a useful positioning condition, not an output certificate. An incorrect base coordinate, height reference, transformation or surface classification can survive a fixed solution. Check the time history against the affected area, then validate the result. An overall FIX percentage alone can hide a short interruption at exactly the part of the site that matters.

06. Point-cloud thickness is not absolute accuracy

On an approximately flat surface, returns occupy a band rather than an infinitely thin plane. Thickness describes the spread of that band under a stated measurement method. A narrower band may indicate more consistent local measurements, but it does not establish where the band sits in the project’s coordinate system.

Imagine shifting a thin, internally consistent surface upward by 8 cm. Its thickness need not change, yet its elevations are now biased. The same distinction applies to a horizontal offset: clean strip joins and sharp geometry can coexist with incorrect absolute coordinates.

Thin can still be in the wrong place

Thin reconstructed surface
+8 cm bias
Independent reference surface
Designed for this guide. Illustrative geometry, not a Terra screenshot or measured result. Local spread is small; the surface is still offset. Checkpoints are needed to reveal the positional discrepancy.

The symbol σ denotes standard deviation, a measure of dispersion. A specification at 1σ is not a maximum-error guarantee or a surveyed-coordinate accuracy statement. Avoid converting it into a percentage of “all points guaranteed inside” unless the source defines the distribution, interval and relevant population.

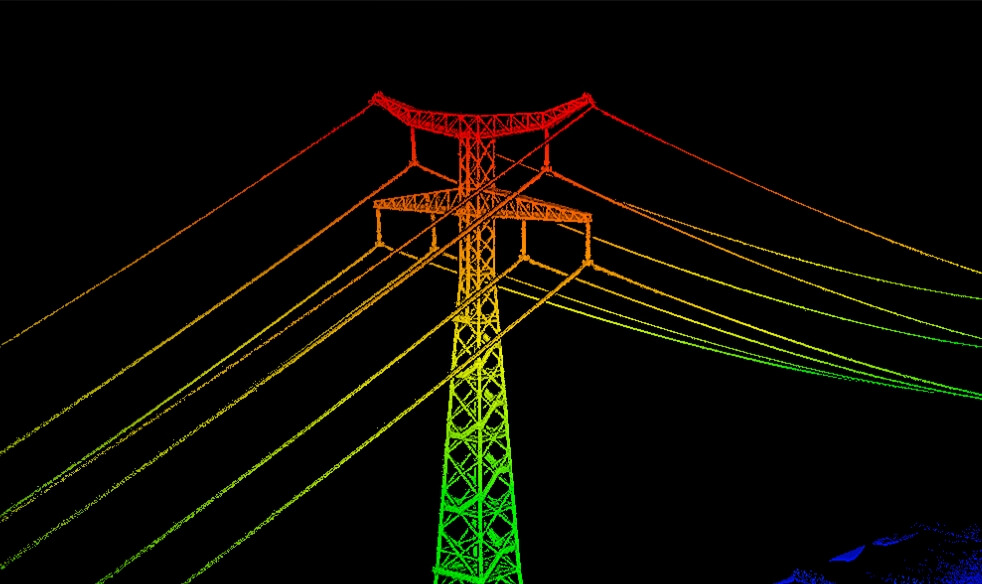

DJI promotional L3 point-cloud illustration of an electricity transmission tower and conductors
DJI’s L3 promotional point-cloud illustration shows recognizable tower and conductor geometry. Visual detail is useful to inspect, but this image supplies no independent accuracy evidence for your project.

07. L3 specifications: reference values, not project acceptance

The DJI Zenmuse L3 LiDAR payload has separately published positional RMSE and thickness figures. Keeping them separate is the point: one metric must not stand in for the other.

On small screens, scroll inside the table to read each complete column.

DJI manufacturer references under different stated test protocols
Metric 120 m 300 m
Vertical RMSE 3 cm 5 cm
Horizontal RMSE 4 cm 7.5 cm
Point-cloud thickness 1.2 cm @ 1σ 2 cm @ 1σ

For positional RMSE, DJI specifies a Matrice 400 aircraft linked to a position-calibrated D-RTK 3 Multifunctional Station: Area Route with IMU calibration, Linear scanning, 15 m/s, −90° gimbal and straight segments shorter than 3,300 m. The test used angular features and exposed, diffuse-reflecting hard-ground checkpoints. Terra’s accuracy optimization was enabled.

The thickness test instead specifies Linear scanning and 80% reflectivity targets, with neither point-cloud optimization nor downsampling enabled. DJI says to multiply its listed thickness by six for its 6σ value. These are different conditions, not a single set of interchangeable results. See the L3 specifications and footnotes.

Your dataset needs its own evidence. Record the actual flight and processing conditions rather than borrowing a product figure for an accuracy statement. Manufacturer test altitudes are not operating permissions or flight recommendations for a Canadian site.

08. Smooth Point Cloud vs Optimize Point Cloud Accuracy

These controls address different problems. Accuracy optimization works on consistency between data collected at different times; smoothing reduces local thickness and discrete noise. They are not simply “low quality” and “high quality” settings, and neither removes the need for independent checks.

DJI’s LiDAR processing guidance suggests accuracy optimization when obvious layer misalignment remains with it off. The same guidance warns against smoothing when real surface elevation changes below 5 cm must be preserved. A cleaner-looking surface can lose small geometry that the deliverable needs.

As a separate settings example, DJI’s L2 specifications give 4 cm vertical and 5 cm horizontal accuracy with optimization, versus 4 cm and 8 cm without it under the same test conditions. Those conditions include a Matrice 350 RTK, 150 m relative altitude, 15 m/s, repetitive scanning, RTK FIX, IMU calibration, −90° pitch, straight segments below 1,500 m and suitable hard-ground checkpoints. This explains a processing dependency, not a guaranteed improvement for every dataset. The Zenmuse L2 store page is the relevant payload purchase path for an L2-based workflow.

Keep a baseline output and change one processing decision at a time when investigating a problem. Compare profiles and relevant features as well as residuals, and document the settings used for the accepted revision. Do not repeatedly smooth or shift data until only a favourable number remains.

09. Bad RMSE can be a reference-system problem

Before blaming the sensor, verify the coordinate import and height reference. Check field assignments, axis order, units, projection, horizontal datum, vertical datum, geoid model and any local-site transformation. Confirm that input references and the delivered output describe the intended system, not merely that two dropdowns look similar.

In Canada, ellipsoidal and orthometric heights are not interchangeable. NRCan’s GPS·H documentation explains conversions using geoid models, including transformations involving CGVD28 and CGVD2013. The correct choice depends on the project’s reference system and, where relevant, its epoch; “Canadian coordinates” is not a complete specification.

A consistent offset across checkpoints is a reason to investigate that chain. It is not permission to subtract the mean and declare success. Establish the cause, make a documented correction and rerun the required checks. Also confirm that a missing or rejected checkpoint was not silently omitted from the statistics you are reading.

10. Use the symptom to choose the next check

Start with the evidence pattern, not a favourite processing switch. These are investigation prompts, not guaranteed diagnoses. Several causes can coexist, and a corrected point cloud still needs the required validation. Keep the baseline so a new setting does not quietly remove useful geometry or conceal a reference problem.

On small screens, scroll inside the table to read each complete column.

Symptom → investigation → evidence to retain
What you see What to inspect next What to keep
Most residuals have the same sign Check height reference, base coordinates, units and transformations before assuming random sensor noise. Signed residual list, reference definitions, correction rationale and rerun results.
One checkpoint is much worse Verify point identity, survey quality, local surface neighbourhood and nearby strip geometry. Location, reference notes and before/after evidence; justify any exclusion.
Strip joins show doubled surfaces Review trajectory, calibration and accuracy-optimization settings; compare profiles using a retained baseline. Affected strip/time, representative cross-sections and processing settings.
Cloud looks sharp but coordinates disagree Separate local thickness/consistency from absolute positioning; inspect independent reference checks. Coordinate comparison, population, axis and uncertainty of the reference survey.
Geometry or coverage is missing Compare raw acquisition, warnings, removed trajectory segments, filtering and classification. Gap map and location-specific limitations; record any required reacquisition.
Checkpoint statistics are absent Confirm points were imported as checks, matched and evaluated in this task; review warnings and counts. Import mapping, point roles, expected/evaluated counts and unresolved omissions.

11. Pass, review or reprocess—using project-defined criteria

Set tolerances and the acceptance method before selecting the most flattering report statistic. The following is an editorial decision framework, not a DJI certification scale or a universal centimetre threshold.

On small screens, scroll inside the table to read each complete column.

Decision Evidence pattern Next action
Pass for the defined use Required coverage and checks meet the agreed method and tolerances; material warnings and outliers are resolved. Record the reviewer, accepted revision, scope and limitations.
Review Local anomalies, uncertain reference transformation or unclear sample selection prevent a defensible conclusion. Investigate the affected area and retain the unresolved issue.
Reject / correct / reacquire Systematic bias, wrong reference, missing critical coverage or failed project criteria. Correct the cause; reprocess or reacquire as needed, then validate again.

Keep the raw data, report, processing settings, coordinate definitions, control/check survey record, residual list, exclusions and reviewed output together. The responsible project professional must decide whether that evidence satisfies the contract and any applicable professional requirements. A generated PDF is an audit record, not the end of the responsibility chain.

12. What to keep with the accepted report

The handoff should let another reviewer identify the accepted data and understand its limits without repeating the entire job. Use the fields below as a record structure; they are not a populated certificate or a replacement for the project’s specified documentation.

Job and revision
Project, area, intended use, acquisition dates, raw-data location, Terra version and exact accepted output filenames or revision identifiers.
Reference definition
Projection, axis order, units, horizontal datum, vertical datum, geoid/epoch where applicable and documented local transformation.
Control and checks
Point IDs and assigned roles, survey method/uncertainty, spatial distribution, expected/evaluated counts and justified exclusions.
Processing record
Payload/calibration, trajectory corrections, optimization, smoothing, filtering, classification and export settings relevant to the delivered revision.
Results and locations
Report, individual residuals, appropriate statistics, representative profiles, strip joins, coverage gaps and a map of unresolved anomalies.
Acceptance basis
Required standard/method/tolerances, deliverable tested, reviewer, decision date, correction history, accepted scope and remaining limitations.

A later terrain edit, reclassification or changed export creates a different deliverable to review. Keep the original report and record what additional checks apply; the old point-cloud result does not automatically transfer to every derivative.

13. Equipment and software paths for this workflow

DJI Terra software shown on a laptop in the dealer listing image

DJI Terra Standard

View at SpeedyDrone →

Dealer software purchase path with current 1 Year and Permanent variants. Confirm the required functions and entitlement for your payload and outputs; this guide does not assume every LiDAR processing step needs a paid licence.

Zenmuse L3 LiDAR payload shown from the front at an angle

Zenmuse L3

View at SpeedyDrone →

The payload behind the separately conditioned RMSE and thickness references in this guide. Select it against required outputs and verify the complete aircraft, reference and processing configuration rather than relying on a single specification.

Zenmuse L2 LiDAR payload shown at an angle

Zenmuse L2

View at SpeedyDrone →

The L2 workflow is relevant to the acquisition-report and processing examples above. Its listed protection variants do not change the need to document mission settings and independently validate the actual deliverable.

Frequently asked questions

What does RMSE mean in DJI Terra?

RMSE summarizes the magnitude of the errors in the selected section. Identify the coordinate component, units and population before comparing it with another number. In DJI’s LiDAR report-reading example, the checkpoint summary concerns altitude differences, while an individual row can include statistics for surrounding reconstructed points. Those values need not describe the same sample. Retain the checkpoint count and individual residuals, then apply the acceptance calculation required for the actual deliverable rather than treating the abbreviation alone as a verdict.

Does 3 cm RMSE mean every point is within 3 cm?

No. RMSE is an aggregate statistic, not the largest error or a guaranteed bound on every point. The illustrative five-point example in this guide has 4.86 cm RMSE and a 10 cm maximum absolute residual. That larger discrepancy remains important. Review the signed pattern, spatial distribution, reference quality and unresolved outliers. Unsampled areas may behave differently, so a favourable summary from a limited checkpoint group does not establish uniform accuracy across the entire site.

What is the difference between control points and checkpoints?

Control points influence the solution; independent checkpoints are reserved to test it. Terra’s LiDAR control/check workflow is elevation-focused and differs from manually marking image points for photogrammetry. Keep the assigned roles and reference-survey record. If a checkpoint is used to adjust or repeatedly tune the result, retain that history and obtain suitable held-out validation instead of describing the tuned point as untouched evidence. A small control residual shows fit to adjustment data, which is a different question from independent project accuracy.

Is point-cloud thickness the same as accuracy?

No. Thickness describes local spread under a stated measurement method, while positional accuracy concerns agreement with a suitable reference system. A thin surface can be displaced vertically or horizontally without becoming visibly thicker. Review independent coordinates as well as profiles, strip consistency and retained geometry. A sharp-looking cloud may still have a datum or positioning error. Conversely, a single good positional statistic does not demonstrate that every small feature or classified surface required by the deliverable has been preserved.

What is Zenmuse L3’s published point-cloud thickness?

DJI lists 1.2 cm at 1σ for 120 m nadir flight altitude and 2 cm at 1σ for 300 m under its stated thickness test. That test uses Linear scanning and 80% reflectivity targets without point-cloud optimization or downsampling. These manufacturer references are separate from L3’s positional RMSE tests. They are not measured results for your dataset or a maximum-error guarantee. Record your own collection, processing and measurement conditions before deciding whether a thickness comparison is meaningful.

Does RTK FIX guarantee survey accuracy?

No. RTK FIX describes a positioning solution, not independent validation of the finished output. A wrong base coordinate, height reference, transformation or classification can coexist with a fixed solution. Inspect the time history and trajectory against the part of the site being reviewed, then compare the actual deliverable with appropriate independent references. A short interruption in a critical area can matter even when the overall percentage looks favourable. Keep positioning evidence with the output checks rather than substituting one for the other.

Should I always enable Smooth Point Cloud?

Choose smoothing according to the geometry needed for the deliverable. DJI’s processing guidance warns against it when genuine surface elevation changes below 5 cm must be preserved. Retain an unsmoothed baseline, inspect representative profiles and compare the features that matter, as well as residuals. A visually cleaner result may remove small changes needed for measurement. Record the accepted settings and repeat the relevant checks after changing them; successful processing alone does not show that the altered surface remains suitable.

Is Optimize Point Cloud Accuracy the same as smoothing?

No. Accuracy optimization addresses consistency between scans collected at different times; smoothing addresses local thickness and discrete noise. Investigate the problem before choosing a control. For doubled surfaces or strip misalignment, review trajectory, calibration and the documented optimization workflow. For local noise, examine what smoothing would preserve or remove. Keep a baseline and change one decision at a time. Manufacturer benchmarks may specify particular settings, but enabling those settings does not make your dataset identical to the manufacturer’s test.

Does a DJI Terra Quality Report certify a survey?

The report records processing and available accuracy checks; professional acceptance depends on the agreed deliverable, method, suitable references and responsible reviewer. Keep the exact output revision, coordinate definitions, residual list, settings and limitations with it. A generated report does not by itself establish contractual compliance, authority to sign off or accuracy of a later edited terrain model. The handoff record in this guide helps organize the evidence, while the project team applies the actual specification and any applicable professional requirements.

Why is Check Point RMSE missing from my report?

First confirm that you are reviewing the correct LiDAR task and report revision. Check whether reference points were imported as checkpoints, retained in that role, matched and actually evaluated. Review import fields, coordinate definitions, point surroundings, warnings and expected versus evaluated counts. A missing section is missing evidence, not a zero-error result. Available fields also depend on version, task and enabled functions. Resolve the omission or document the remaining limitation before making an accuracy statement for the deliverable.

Source and version notes

Primary DJI documentation is linked beside the relevant technical claims. The report screenshot is an official historical V3.9.0 example; its sample values are not acceptance thresholds. DJI’s linked report-reading PDF remains dated 2023-10-10. Current software/specifications and dealer offers were rechecked October 7, 2026. USGS supplies statistical terminology, not an automatically applicable Canadian contract standard; NRCan explains height-reference conversions. Both custom figures use explicitly illustrative data. Browse the Enterprise Drone Solutions resource hub for related workflows, or compare the DJI Terra software options when selecting a licence.
