DJI SDR Transmission 2
Add the view you need.
One transceiver to expand or replace a unit in your SDR Transmission 2 setup.
One transmitter can feed up to eight receivers. DJI recommends no more than five transmitters operating together in the same area. Add receivers as the monitoring team grows, and check the channel conditions on location.
Already have an SDR Transmission 2 system?
Add one receiver when another person needs a monitor, or replace a unit in an existing setup.
This package contains one transceiver, so it needs a matching SDR Transmission 2 unit at the other end of the wireless link.
Choose the unit around your existing rig.
Check which monitor, power source and cables you already own.
The included NP-F adapter is not a battery, and the firmware update cable is not the separately sold DP video cable. If you are starting with no transceivers, the two-unit Combo is the configuration to compare.
See the shot. Share the view.
Monitor compatible video sources at up to DCI 4K/60fps with 10-bit HDR.
This format requires the HDMI or DP connection on the transceiver itself; DP uses the bottom USB-C port. Check the source device, cable and monitor format before building your signal chain.
One unit. Either role.
Use the additional transceiver in the role your existing system needs.
Set it to RX for another monitoring position, or to TX for a compatible camera-side setup. The wireless link still needs a matching SDR Transmission 2 unit at the other end.
Keep an eye on the channel.
Auto Channel 2.0 operates when Channel Mode is set to Auto.
The channel dashboard gives you a visual signal-quality check, helping you evaluate the connection as conditions change.
Connect the screen you use.
Use HDMI or DP for a compatible monitor.
A supported phone or tablet can connect by cable to the receiver for monitoring in the DJI Ronin app; the appropriate mobile-device cable is sold separately. SDI requires the separate Expansion Plate. The transceiver alone outputs through HDMI or DP, one at a time.
Bring your Ronin workflow.
Compatible gimbals include DJI RS 5, RS 4 Pro, RS 4 and RS 3 Pro.
The USB-C to CAN control cable is required for RS 4 Pro, RS 4 and RS 3 Pro; RS 5 uses a USB-C to USB-C cable. Ronin 2 and Master Wheels require the USB-C to 4-pin control cable. Camera control also depends on the camera and its connection to the gimbal. View DJI RS 4 Pro at SpeedyDrone. DJI Focus Pro connection is not supported. Native vertical shooting is not supported with the transceiver mounted to the stabilizer through the Quick-Release Plate.

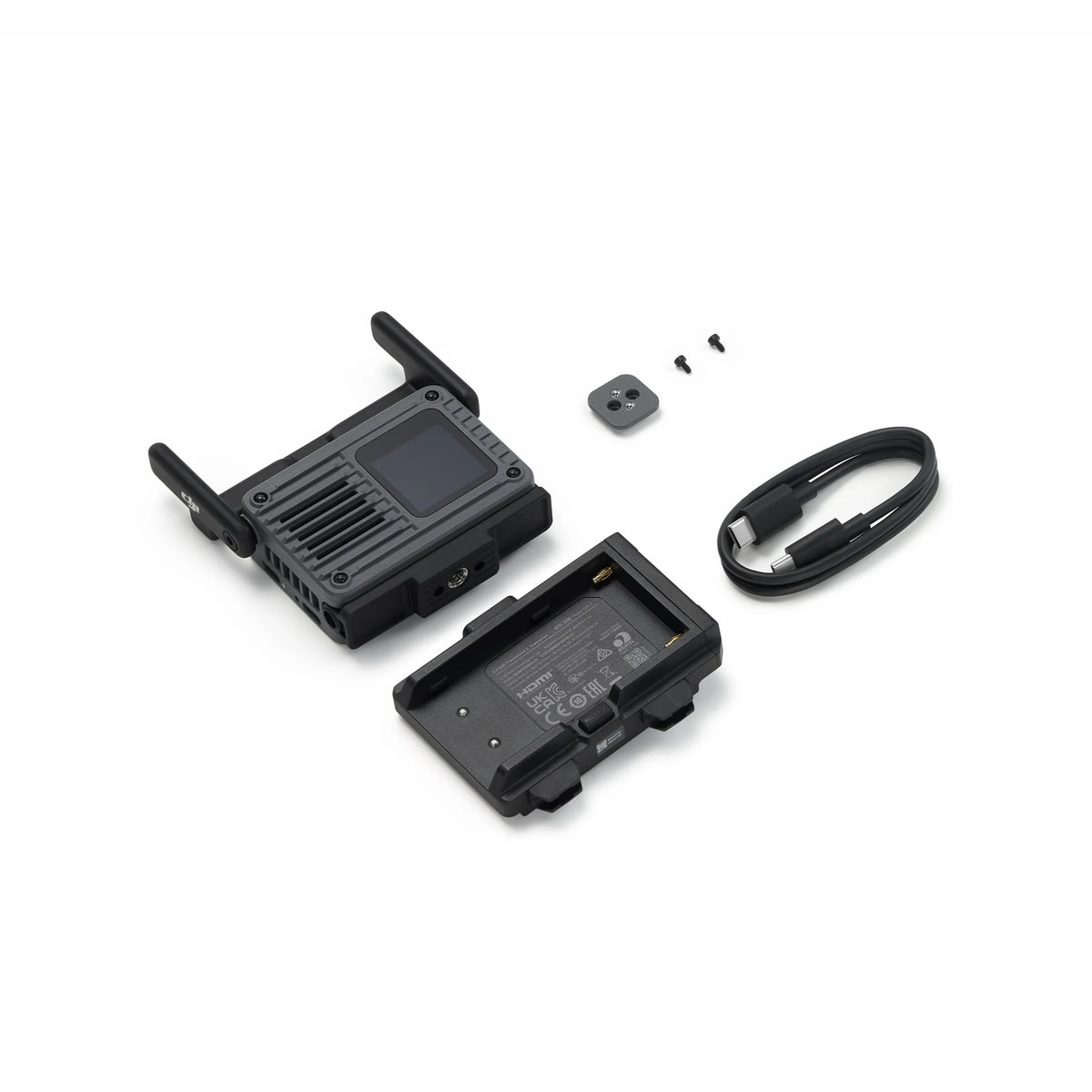

In the box
- 1×DJI SDR Transmission 2 Transceiver
- 1×DJI SDR Transmission 2 Camera Cold Shoe Adapter
- 1×DJI SDR Transmission 2 NP-F Battery Adapter
- 1×Firmware Update Cable (USB-C to USB-C, 50 cm)
Key specifications
| Package configuration | 1 transceiver |
|---|---|
| Maximum supported video | DCI 4K/60fps, 10-bit HDR via main-unit HDMI or DP |
| Transceiver ports | 1 HDMI, 2 USB-C; SDI needs separate Expansion Plate |
| Unit weight | Approx. 136 g including antennas |
| USB-C PD power | PD adapter rated at 65 W or above; sold separately |
Frequently asked questions
Before you build your setup.
Can I use this as an additional receiver?
Yes. Set this transceiver to RX and use it with an SDR Transmission 2 transmitter. One transmitter supports up to eight receivers; each additional viewing position still needs its own compatible display and connections.
Is this package enough for a new wireless monitoring link?
No. It includes one transceiver. You need an SDR Transmission 2 unit at both ends of the link. The Combo supplies two transceivers for a camera-side and monitor-side setup.
Can it replace a first-generation SDR receiver?
No. SDR Transmission 2 does not cross-connect with the original DJI SDR Transmission or other DJI video transmission systems. Check that your existing transmitter is SDR Transmission 2.
How do I power the additional unit?
Use a compatible NP-F battery, a supported gimbal power connection or USB-C PD power. For PD operation, DJI requires an adapter rated at 65 W or above. No operating battery or PD adapter is included.
Can I use a tablet instead of buying another monitor?
A compatible phone or tablet can connect by cable to the receiver for monitoring through the DJI Ronin app. Check the device compatibility and obtain the appropriate USB-C or Lightning cable separately.
What if my existing monitor uses SDI?
The transceiver does not have a built-in SDI port. An SDR Transmission 2 Expansion Plate is needed for SDI; the Expansion Accessory Kit is an option when you also need the cage and its included accessories.
Can SpeedyDrone help me expand my current setup?
Yes. Tell our Toronto team which SDR Transmission 2 units, display and power source you already have. We can help identify the additional parts to check and confirm Canadian availability and pickup or shipping options.
Is SpeedyDrone Canada an authorized DJI dealer?
Yes. SpeedyDrone Canada is a DJI authorized dealer in Canada. Our team can help you choose the right configuration and confirm current availability.
