DJI SDR Transmission 2 Combo
DJI Authorized Dealer
Genuine DJI products · Toronto pickup · Canada-wide shipping
- Free shipping on eligible orders of $149 CAD or more before tax to Canadian provinces; territories and remote postal codes are excluded
- In-stock weekday orders confirmed and paid before 10:00 a.m. ET typically dispatch the same business day
- Toronto showroom pickup available on select items
DJI SDR Transmission 2 Combo
Start with both ends of the link.
Two switchable transceivers for your camera and monitoring position.
One transmitter can feed up to eight receivers. DJI recommends no more than five transmitters operating together in the same area. Add receivers as the monitoring team grows, and check the channel conditions on location.
Build your first camera-to-monitor link.
Place one transceiver at the camera and set it to TX.
Set the second unit to RX at the monitoring position. The Combo includes two cold shoe adapters, two NP-F battery adapters and two 50 cm firmware update cables, alongside the two transceivers.
Prepare the rest of your shooting kit.
Bring a compatible camera and display, a suitable power source for each unit, and the video cables your ports require.
Operating batteries, monitors and the separately available DP video cable are not included. Choose the Expansion Accessory Kit if your planned setup needs SDI and the included mounting cage.
See the shot. Share the view.
Monitor compatible video sources at up to DCI 4K/60fps with 10-bit HDR.
This format requires the HDMI or DP connection on the transceiver itself; DP uses the bottom USB-C port. Check the source device, cable and monitor format before building your signal chain.
Give each unit its role.
Start with one transceiver in TX mode and the other in RX mode.
Both units support either role, so you can reassign them when your camera and monitoring arrangement changes.
Keep an eye on the channel.
Auto Channel 2.0 operates when Channel Mode is set to Auto.
The channel dashboard gives you a visual signal-quality check, helping you evaluate the connection as conditions change.
Connect the screen you use.
Use HDMI or DP for a compatible monitor.
A supported phone or tablet can connect by cable to the receiver for monitoring in the DJI Ronin app; the appropriate mobile-device cable is sold separately. SDI requires the separate Expansion Plate. The transceiver alone outputs through HDMI or DP, one at a time.
Bring your Ronin workflow.
Compatible gimbals include DJI RS 5, RS 4 Pro, RS 4 and RS 3 Pro.
The USB-C to CAN control cable is required for RS 4 Pro, RS 4 and RS 3 Pro; RS 5 uses a USB-C to USB-C cable. Ronin 2 and Master Wheels require the USB-C to 4-pin control cable. Camera control also depends on the camera and its connection to the gimbal. View DJI RS 4 Pro at SpeedyDrone. DJI Focus Pro connection is not supported. Native vertical shooting is not supported with the transceiver mounted to the stabilizer through the Quick-Release Plate.

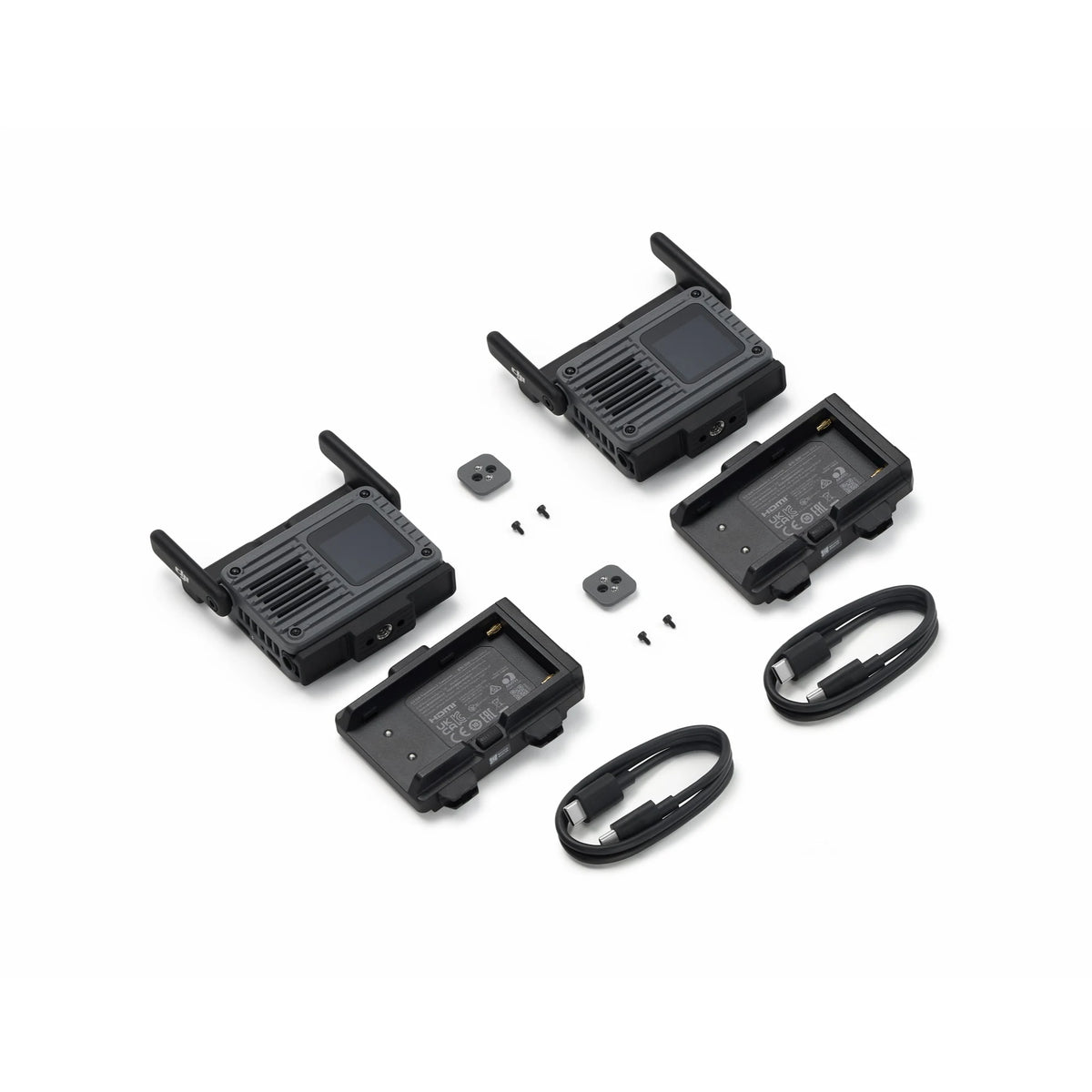

In the box
- 2×DJI SDR Transmission 2 Transceiver
- 2×DJI SDR Transmission 2 Camera Cold Shoe Adapter
- 2×DJI SDR Transmission 2 NP-F Battery Adapter
- 2×Firmware Update Cable (USB-C to USB-C, 50 cm)
Key specifications
| Package configuration | 2 TX/RX-switchable transceivers |
|---|---|
| Maximum supported video | DCI 4K/60fps, 10-bit HDR via main-unit HDMI or DP |
| Receiver expansion | Up to 8 receivers per transmitter; extra units sold separately |
| Video input | One input at a time |
| Main-unit ports | 1 HDMI and 2 USB-C per transceiver |
| USB-C PD power | PD adapter rated at 65 W or above; sold separately |
Frequently asked questions
Before you build your setup.
What does the Combo add over the single-unit package?
It supplies two transceivers rather than one, plus two of each listed cold shoe adapter, NP-F battery adapter and firmware update cable. It suits a new transmitter-and-receiver setup; a single unit suits expansion or replacement.
Are batteries and video cables ready to use out of the box?
No operating batteries or PD adapters are included. Plan power for both units using compatible NP-F batteries, supported gimbal power or USB-C PD adapters rated at 65 W or above. The included cables are firmware update cables; choose any required video or mobile-device cables separately.
Does this Combo include eight receivers?
No. There are two transceivers in the box. One transmitter can support up to eight receivers as a system capability, but extra transceivers and displays must be purchased separately.
Are the two units permanently assigned to TX and RX?
No. Each can take either role. For the initial camera-to-monitor link, configure one as the transmitter and the other as the receiver.
Do I need the Expansion Accessory Kit for HDMI monitoring?
The transceiver has HDMI and DP connections on the main unit. SDI requires the separate Expansion Plate. Decide from the actual ports on your camera and monitor; do not assume every expansion output supports the main unit’s DCI 4K/60fps HDR format.
Can I use my original SDR Transmission units with this Combo?
No. The wireless connection is specific to SDR Transmission 2. Keep first-generation SDR equipment separate when planning your transmitter and receiver counts.
Can SpeedyDrone check my first monitoring setup?
Yes. Send our Toronto team your camera, monitor and gimbal models, together with your preferred video connection. We can help you review the required accessories and confirm current availability for a Canadian order.
Is SpeedyDrone Canada an authorized DJI dealer?
Yes. SpeedyDrone Canada is a DJI authorized dealer in Canada. Our team can help you choose the right configuration and confirm current availability.
