DJI SDR Transmission 2 Expansion Accessory Kit
More connections. A secure rig.
Add SDI connectivity and a protective mounting cage to your DJI SDR Transmission 2 setup. This accessory kit is for crews adapting a compatible transceiver to a more involved camera or monitoring rig.
Choose the connections your rig needs.
Choose the Expansion Plate when your camera or monitor needs SDI.
It provides SDI, HDMI and USB-C connections. The transceiver main unit already has HDMI and DP, but no built-in SDI port.
Build a more secure mount.
The included Transceiver Cage adds mounting points and HDMI/USB-C cable clamps for the transceiver and Expansion Plate.
The kit also includes a cold shoe adapter, D-TAP to USB-C power cable and a 2 mm ball-end hex key.
Plan your monitor outputs.
On the receiver side, the Expansion Plate can output SDI and HDMI together.
You can also use one main-unit output, HDMI or DP, for up to three simultaneous feeds. The transceiver still accepts only one video input at a time in transmitter mode.
Supply the transceiver and connected equipment.
Use this kit with DJI SDR Transmission 2.
A transceiver, camera, monitor and suitable power source are separate purchases. For DCI 4K/60fps HDR, DJI specifies the HDMI or DP port on the transceiver main unit; do not assume the same format applies to every expansion port.

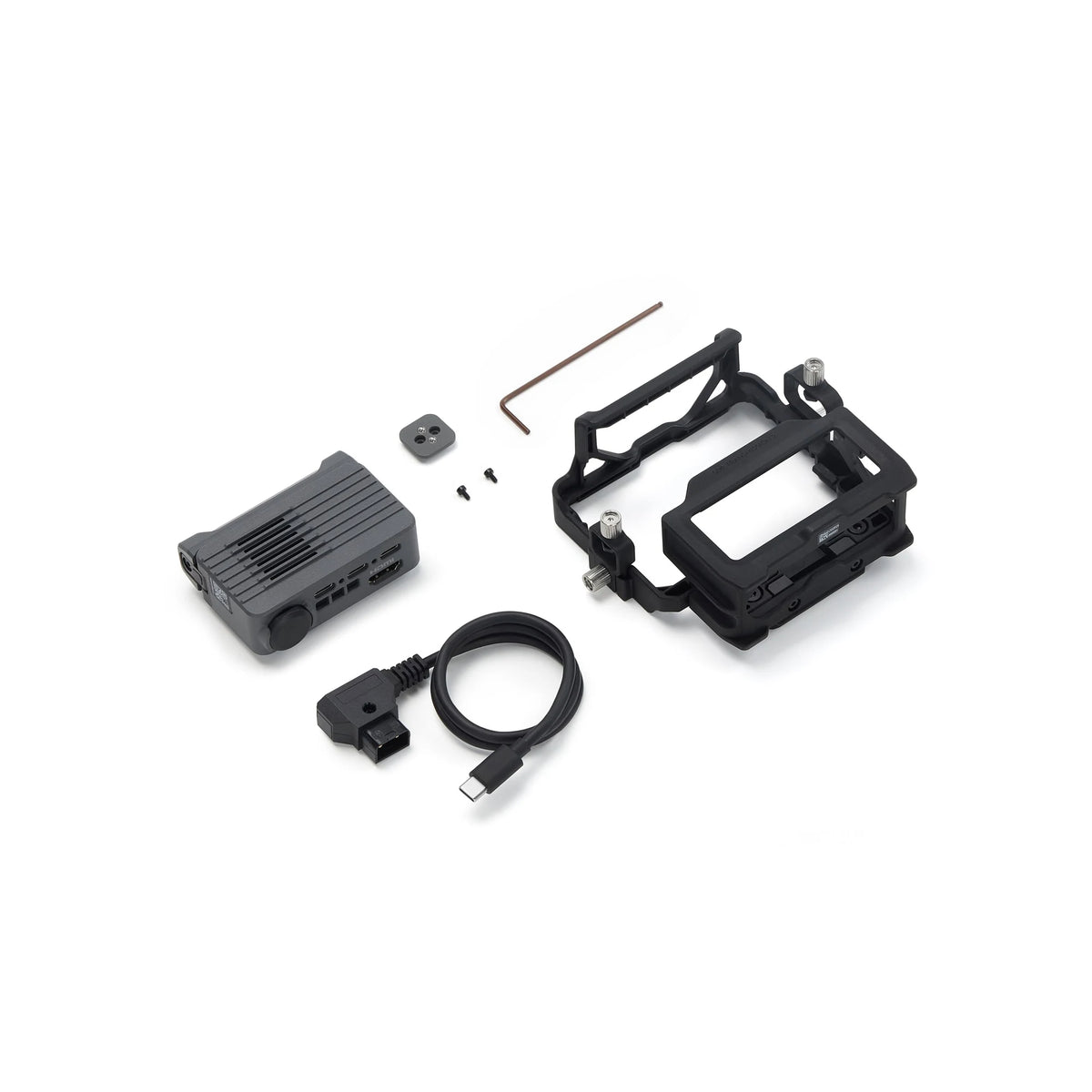

In the box
- 1×DJI SDR Transmission 2 Expansion Plate (SDI/HDMI/USB-C)
- 1×DJI SDR Transmission 2 Camera Cold Shoe Adapter
- 1×D-TAP to USB-C Power Cable (50 cm)
- 1×Ball-End Hex Key (2 mm)
- 1×DJI SDR Transmission 2 Transceiver Cage
Key specifications
| System | DJI SDR Transmission 2 |
|---|---|
| Expansion Plate connections | SDI, HDMI, USB-C |
| Included power cable | D-TAP to USB-C, 50 cm |
| Included tool | Ball-end hex key, 2 mm |
Frequently asked questions
Before you build your setup.
Does the kit include a transceiver?
No. This is an expansion accessory kit. A DJI SDR Transmission 2 transceiver is required separately.
Is the cage included?
Yes. The kit includes the Transceiver Cage and a 2 mm ball-end hex key, along with the other items listed in the box contents.
Can I use this with the first-generation SDR system?
This kit is specified for DJI SDR Transmission 2. Compatibility with the first-generation system is not established.
Can the receiver drive multiple monitors?
With the Expansion Plate, SDI and HDMI can output together alongside one main-unit HDMI or DP output. Check the supported video format of every connected device.
Is SpeedyDrone Canada an authorized DJI dealer?
Yes. SpeedyDrone Canada is a DJI authorized dealer in Canada. Our team can help you choose the right configuration and confirm current availability.
