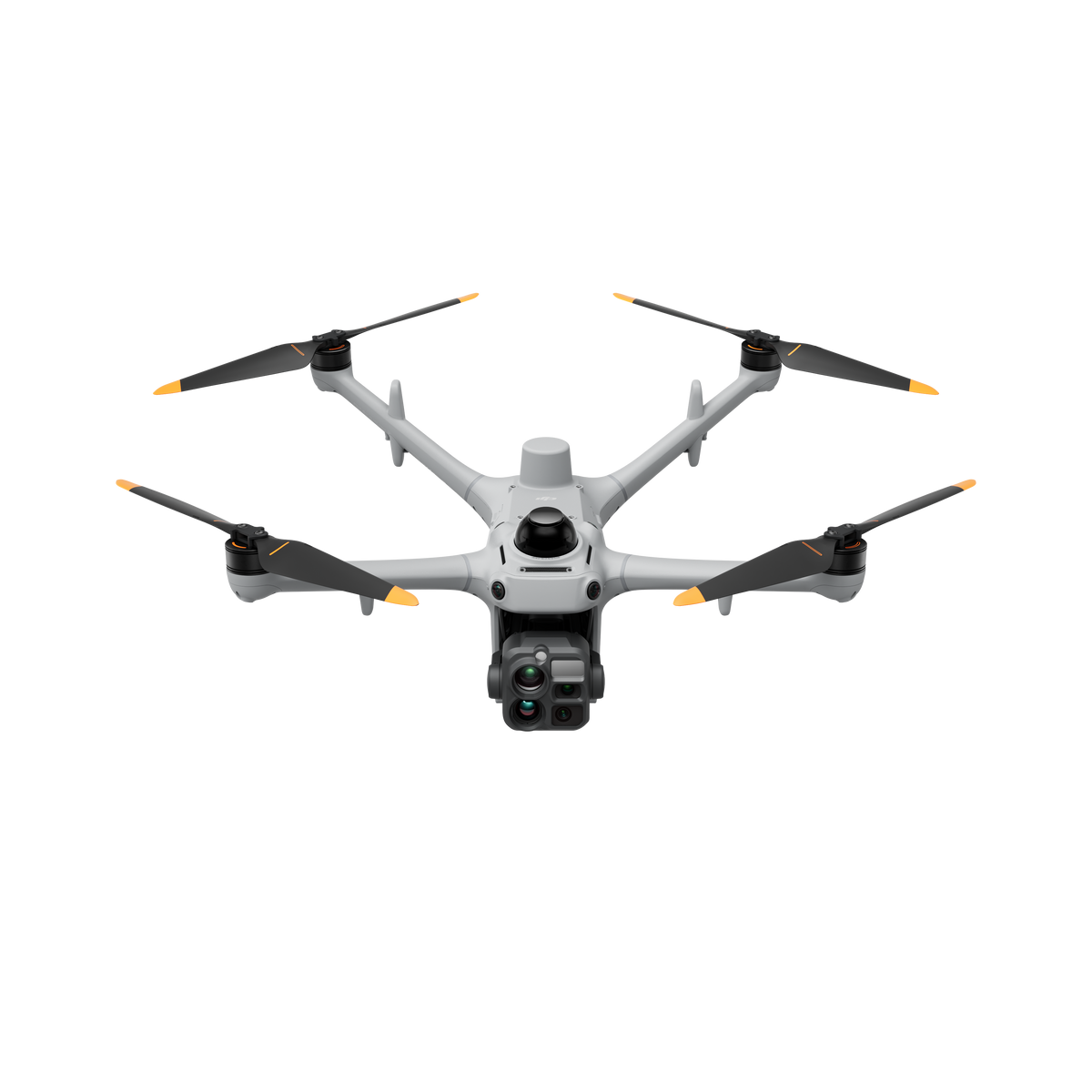

DJI Matrice 5TD
Imaging and sensing for remote missions
DJI Matrice 5TD combines visible-light imaging, thermal imaging, laser ranging, and multiple obstacle-sensing systems in an enterprise aircraft designed for DJI Dock 4 workflows. Both North American SP Plus combos include the DJI O4 Ground Station. Choose the configuration with or without the pre-installed DJI AP1 Parachute.
- Native thermal-camera resolution
- 1280 × 1024
- Maximum laboratory flight time
- 59 minutes
- Ground station in both combos
- O4 included

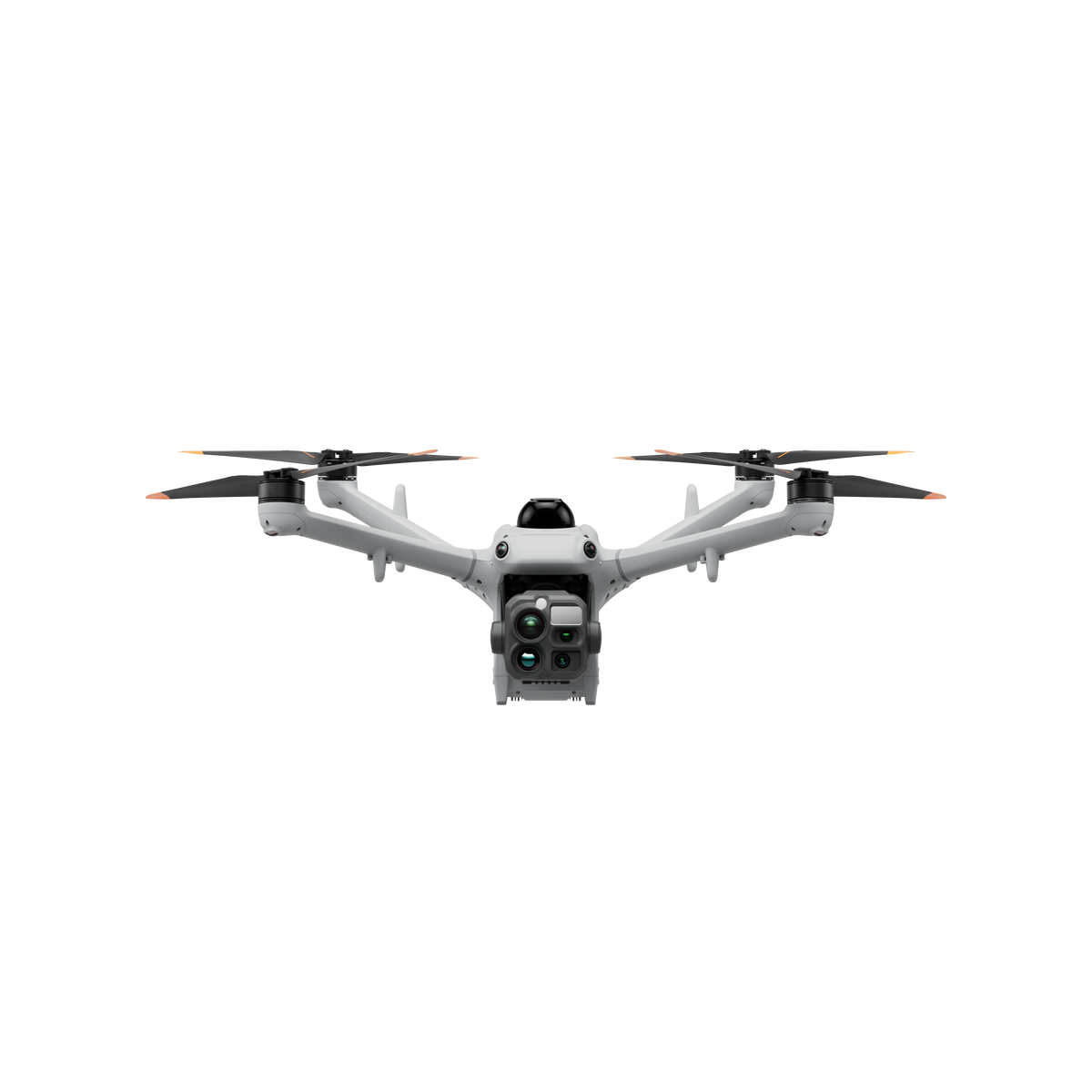

Visible and thermal imaging in one aircraft
The 11× telephoto camera has a 252 mm equivalent focal length. The infrared camera offers 1280 × 1024 resolution, with 2560 × 2048 available in UHR mode. Visible-light and infrared fusion modes help relate thermal findings to scene detail. A laser rangefinder supports distance measurements up to 3 km under the specified test conditions.
Flight performance and sensing
Maximum flight time is 59 minutes, measured without payload in a windless laboratory environment at 20 m above sea level, flying at a constant 15 m/s from full charge to 0%. Operational endurance will vary. The maximum speed of 21 m/s applies only to FlyTo tasks; other modes are limited to 15 m/s.
The aircraft combines a six-directional binocular colour vision system, rotating LiDAR, a downward infrared ranging sensor, and forward, upward, and downward mmWave radars. Sensing performance depends on lighting, surface characteristics, weather, and regional feature availability. The aircraft is rated IP55 with a specified operating temperature range of -40°C to 50°C.
Payloads and remote workflows
Three E-Port interfaces and up to 450 g of effective payload capacity support optional equipment such as the AL2D SpotLight, AS2D Speaker, and AP1 Parachute. Accessories affect flight time and sensing performance. When the spotlight is on, visual obstacle sensing is disabled and only mmWave radar and LiDAR remain active. Onboard AI supports detection of 17 object types; additional cloud functions depend on the selected FlightHub 2 deployment and configuration.
O4 Ground Station included
The included ground station provides the communication and RTK base-station functions required for Dock 4 deployment. It supports multi-station roaming and Ethernet connectivity. Cellular networking requires the DJI Cellular Dongle 2 and compatible local service, where supported.
Choose your combo
O4 Ground Station
SKU MAT5TD-O4-CB; DJI part number CB.202608035106; aircraft with microSD card pre-installed; O4 Ground Station included
O4 Ground Station + AP1 Parachute
SKU MAT5TD-O4-AP1-CB; DJI part number CB.202608035100; aircraft with AP1 Parachute and microSD card pre-installed; O4 Ground Station included
A handheld remote controller is not included in either combo. Dock 4 is a separate product. Confirm flight-battery requirements and quantities when ordering. Accessories shown in product imagery are included only when specified for the selected configuration.
SpeedyDrone configuration guidance
Choose the aircraft configuration around the mission
Matrice 5TD is built for Dock-operated workflows. DJI's FAQ states that it does not support manual flight using a remote controller. Confirm that this operating model fits your project before choosing either North American combo; both include O4, while DJI Dock 4 is supplied separately. Include your chosen combo SKU, MAT5TD-O4-CB or MAT5TD-O4-AP1-CB, in the quote request.
Start with the required imagery
The native 1280 × 1024 thermal camera and 11× telephoto camera support different views of the same scene. Define the target size, working distance and required visible/thermal output, then assess representative images before committing to an inspection workflow.
Choose AP1 as part of the configuration
Select the AP1 combo when your project calls for the pre-installed parachute. For later installation, review the AP1 and accessory-mount configuration together. Include activation, inspection and replacement after deployment in the equipment plan.
Plan around the loaded aircraft
Include all mounts and accessories in the payload and endurance calculation. The 450 g payload figure is not an additional allowance beyond the 3050 g maximum takeoff weight. Choose the spotlight/speaker configuration for the work required, then validate the final setup.
Payload choice changes the flight-time reference
| Aircraft without payload | 59 min |
|---|---|
| Aircraft with AP1 parachute | 55.3 min |
| AP1, speaker and spotlight; speaker and light enabled | 41.06 min |
DJI's accessory/endurance comparison, page 74, lists maximum flight time at 15 m/s. These figures compare configurations; they do not establish your mission duration. The headline 59-minute specification uses a no-payload, windless laboratory test from full charge to 0%. See the official test conditions.
Operating model: DJI FAQ, Aircraft. Payload and AP1 requirements: user manual, Accessories. Recommendations above are SpeedyDrone planning guidance; the listed package contents remain the basis for each combo.
Prepare the aircraft and the deployment together
Use the following checks to scope commissioning and the final equipment list. The included ground station provides part of the system; the location, batteries, connectivity and software still need a project-specific plan.
| Dock and site integration | Confirm the separately supplied Dock 4 and the O4 installation location. Use the Dock 4 site-planning guidance for power, network and ground-station placement, then complete the site survey before installation. |
|---|---|
| Battery rotation and return reserve | Confirm flight-battery quantities explicitly. Validate the route with its actual payload, weather and return reserve rather than scheduling from the 59-minute maximum. DJI notes reduced aircraft performance below -20°C. |
| Payload and sensing checks | Commission the final payload arrangement. AP1 affects sensing of small obstacles behind and above the aircraft; the spotlight's operating state also changes sensing capability. Review these limits before testing the route near structures or cables. |
| Two cellular requirements | The aircraft has built-in dual 4G modules, with regional availability conditions. Cellular networking for the O4 Ground Station requires a separate DJI Cellular Dongle 2. Confirm support, carrier coverage and data plans for both roles at the Canadian site. |
| Software and lifecycle | Confirm the required FlightHub 2 deployment, account configuration and commissioned workflow. Record the selected payloads, firmware and maintenance schedule. AP1 is single-use after deployment and requires inspection at least every six months. |
Aircraft/accessory basis: user manual, pages 74–88. Cold-site limitation and site preparation: installation manual. Regional radio/cellular conditions: DJI FAQ and specifications. DJI requires authorized technicians for system installation and configuration.
In the box
Included with both configurations
- DJI Matrice 5TD aircraft with microSD card pre-installed
- CW Propeller pair ×1
- CCW Propeller pair ×1
- Aircraft Tool Kit: Screws ×6, Propeller Clamps ×3, Washers ×3
- DJI O4 Ground Station ×1
- USB-C to USB-C Cable ×1
- Ethernet Connectors ×2
- Expansion Bolts ×4
- Installation Card ×1
- Ground-station screws and tools / Tool Kit ×1
Additional contents of the AP1 Parachute configuration
- AP1 Parachute pre-installed on the aircraft
- Parachute Screws (M2.5 × 5) ×4
- Connection Cable Screws (M1.6 × 5) ×4
DJI Care Enterprise Plus
Eligible new DJI Dock 4 and Matrice 5TD devices receive one year of DJI Care Enterprise Plus with first activation and binding. Service starts at activation. Demonstration devices are excluded from the complimentary plan. Benefits, coverage limits, and renewal eligibility depend on the device and region.
Aircraft specifications
Aircraft - General
| Product Name | DJI Matrice 5TD |
|---|---|
| Weight | 2600 g This value includes the weight of the battery, propellers, and a microSD card, but does not include third-party payloads. The actual weight may vary due to differences in batch materials and external factors. |
| Max Takeoff Weight | 3050 g |
| Dimensions | 393×477×230 mm (L×W×H, without propellers) |
| Wheelbase | Diagonal Wheelbase: 549 mm |
| Max Ascent Speed | 6 m/s |
| Max Descent Speed | 6 m/s |
| Max Horizontal Speed (at sea level, no wind) | 21 m/s Currently, only FlyTo Tasks (Fly to a Target Point) support flight speeds of up to 21 m/s. In other modes, the maximum flight speed is 15 m/s. |
| Max Wind Speed Resistance | 12 m/s |
| Max Takeoff Altitude | 6500 m Aircraft without payload. |
| Max Takeoff Altitude at Full Load | 4500 m |
| Max Flight Time | 59 minutes Measured under the following conditions: in a windless laboratory environment at 20 meters above sea level, with the aircraft flying forward without payload at a constant speed of 15 m/s from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version. |
| Max Hovering Time | 55 minutes Measured with the aircraft hovering in a windless environment at 20 meters above sea level and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version. |
| Max Operating Radius | 10 km Measured in an environment of approximately 25° C (77° F) with a safe battery level of 15%, windless environment, round-trip flight speed of approximately 15 m/s, and hovering operation without payload of 25 minutes. Results may vary depending on the environment, actual use, and firmware version. |
| Max Flight Distance | 53 km Measured with the aircraft flying at a constant speed of 15 m/s in a windless environment at 20 meters above sea level and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version. |
| Max Pitch Angle | 25° Currently supported in Normal Mode only. |
| Max Angular Velocity | 75°/s Currently supported in Normal Mode only. |
| Global Navigation Satellite System | GPS + Galileo + BeiDou + QZSS + GLONASS |
| Hovering Accuracy Range (windless or breezy) | Vertical: ±0.1 m (with vision positioning) ±0.04 m (with RTK positioning) Horizontal: ±0.3 m (with vision positioning) ±0.02 m (with RTK positioning) |
| Operating Temperature | -40° to 50° C (-40° to 122° F) |
| Ingress Protection Rating | IP55 |
| Motor Model | 3409.6 |
| Propeller Model | 1564F foldable low-noise anti-ice propellers |
| RTK Module | Integrated on the aircraft |
| Beacon | Integrated on the aircraft |
| Warning Light | A customizable multicolor warning light, integrated into the bottom of the aircraft |
| Accessory Mounting Points | Two on the sides and one on the top Requires the Matrice 5TD Accessory Mount. |
Aircraft - Sensing
| Sensing Type | Omnidirectional binocular color vision system; horizontal rotating LiDAR; downward 3D infrared ranging sensor; and forward, upward, and downward mmWave radars |
|---|---|
| Forward | Measurement Range: 0.5 m to 25 m Detection Range: 0.5 m to 200 m Effective Sensing Speed: Flight Speed ≤ 15 m/s FOV: Horizontal 95°, Vertical 90° |
| Backward | Measurement Range: 0.5 m to 25 m Effective Sensing Speed: Flight Speed ≤ 15 m/s FOV: Horizontal 95°, Vertical 90° |
| Lateral | Measurement Range: 0.5 m to 25 m Effective Sensing Speed: Flight Speed ≤ 15 m/s FOV: Horizontal 90°, Vertical 90° |
| Upward | Measurement Range: 0.5 m to 20 m Effective Sensing Speed: Flight Speed ≤ 10 m/s FOV: Front and Back 95°, Left and Right 90° |
| Downward | Measurement Range: 0.5 m to 20 m Effective Sensing Speed: Flight Speed ≤ 8 m/s FOV: Front and Back 90°, Left and Right 95° |
| Operating Environment | Forward, Backward, Left, Right, and Upward: Surfaces with discernible patterns and adequate lighting (lux > 0.1) Downward: Diffuse reflective surface with discernible patterns, diffuse reflectivity > 20% (e.g. walls, trees, people), and adequate lighting (lux > 0.1) |
| Rotating LiDAR | Standard Measurement Range: 110 m @ 100,000 lux with 10% reflectivity target Measurement Range for Power Line: 32 m @ 30° @ 35,000 lux for 21.6 mm steel-core aluminum stranded wire with a relative body tilt angle of 30° to the left and right 19 m @ 30° @ 35,000 lux for 11 mm black rubber cable (with surface soiling) with a relative body tilt angle of 30° to the left and right Field of View (FOV): 360° (horizontal), 59° (vertical) Point-Frequency: 250,000-460,000 points/second Laser Wavelength: 940 nm Safety Classification: Class 1 (IEC 60825-1:2014) |
| Downward 3D Infrared Sensor | Measurement Range: 0.3-8 m (reflectivity > 10%) FOV: Front and Rear 60°, Left and Right 60° |
| Millimeter-Wave Radar | FOV: Vertical 90°, Horizontal 90° Front Millimeter-Wave Radar: 40 m measurement range for a 12 mm black rubber cable directly ahead Upper and Lower Millimeter-Wave Radars: 20 m measurement range for a 12 mm black rubber cable directly ahead The mmWave radar function may be unavailable or restricted in some countries or regions. Refer to local laws and regulations for more information. |
Aircraft - Video Transmission
| Video Transmission System | DJI O4 Enterprise Enhanced Video Transmission System |
|---|---|
| Live View Quality | 1080p/30fps (with DJI Dock 4) |
| Video Transmission Transmitter Power (EIRP) | DJI O4 Enterprise Enhanced Video Transmission System: 902-928 MHz: < 30 dBm (IC), < 16 dBm (MIC) 1.430-1.444 GHz: < 35 dBm (SRRC) 2.400-2.4835 GHz: < 33 dBm (IC), < 20 dBm (CE/SRRC/MIC) 5.150-5.250 GHz: < 21 dBm (IC) 5.170-5.250 GHz: < 23 dBm (CE) 5.725-5.850 GHz: < 33 dBm (IC), < 14 dBm (CE), < 30 dBm (SRRC) High-speed Wi-Fi connection (802.11a/b/g/n/ac/ax): 2.4000-2.4835 GHz: < 23 dBm (IC), < 20 dBm (CE/SRRC/MIC) 5.7250-5.8500 GHz: < 23 dBm (IC/SRRC), < 14 dBm (CE) The supported operating frequency bands and their corresponding availability vary by country/region. For details, please refer to local laws and regulations. |
| Max Transmission Distance (unobstructed, free of interference) | IC: 40 km SRRC: 25 km CE/MIC: 12 km Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in DJI FlightHub 2 during your flight. |
| Max Transmission Distance (unobstructed, with interference) | Strong Interference (downtown areas): 2.5-5 km Medium Interference (suburban counties): 5-15 km Low Interference (remote suburbs/coastal areas): 15-32 km Data is tested under IC standard in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance. |
| Max Transmission Distance (obstructed, with interference) | Low interference with building obstruction: approx. 0-1 km Low interference with vegetation obstruction: approx. 1-5 km Data is tested under IC standard in obstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance. |
| Max Download Speed | 20MB/s (with DJI O4 Enterprise Enhanced Video Transmission System) 80MB/s (via high-speed Wi-Fi connection) Measured in a near-field, interference-free lab in countries/regions that support 2.4 GHz/5.8 GHz dual-band. Download speeds may vary; refer to actual experience. The Wi-Fi high-speed channel download starts automatically after the drone lands at the dock and requires the included SD card. 80 MB/s is the maximum transfer rate for large files like video; the transfer rate may decrease when transferring small files such as photos. |
| Lowest Latency | The latency from the aircraft to the FlightHub 2 cloud platform is 160 milliseconds. Data is for reference only. Actual latency depends on network conditions and computer specs. |
| Antenna | 8 antennas 2.4G/5.2G/5.8G: 2T4R sub2G: 2T2R Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information. |
| Others | Built-in dual 4G modules Data usage: ≤ 2.25 GB/30 minutes (dual-SIM dual-active backup transmission) 4G is not supported in some countries or regions. Please contact your local dealer for details. |
Aircraft - Storage
| Supported Memory Cards | U3/Class10/V30 or above is supported. A list of recommended microSD cards can be found below. |
|---|---|
| Recommended microSD Cards | Lexar SILVER PLUS 64GB U3 A2 V30 microSDXC Lexar SILVER PLUS 128GB U3 A2 V30 microSDXC Lexar SILVER PLUS 256GB U3 A2 V30 microSDXC Lexar SILVER PLUS 512GB U3 A2 V30 microSDXC |
Aircraft - Battery
| Capacity | 12138 mAh |
|---|---|
| Voltage | 21.42 V |
| Max Charging Voltage | 25.8 V |
| Cell Type | Li-ion 6S |
| Chemical System | LiNiMnCoO2 |
| Energy | 260 Wh |
| Weight | 925 g |
| Cycle Count | 400 Storage at high temperatures will shorten the battery's lifespan. If the cumulative storage duration at temperatures above 35° C (95° F) does not exceed 100 days within a 12-month period, the battery can support up to 400 cycles. |
| Charging Temperature | 10° to 55° C (50° to 131° F) |
| Discharge Rate | 3C |
| Max Charging Power | 1.8C |
| Low-Temperature Charging | Supports low-temperature self-heating charging |
Aircraft - Gimbal
| Stabilization | 3-axis mechanical gimbal (tilt, roll, pan) |
|---|---|
| Mechanical Range | Tilt: -140° to +113° Roll: -52° to +52° Pan: -75° to +75° Soft limits: tilt -130° to +90°, roll -47° to +47°, pan -70° to +70°. |
| Controllable Range | Tilt: -90° to +90° Pan: Not controllable |
| Angular Vibration Range | ±0.005° |
| Max Control Speed (tilt) | 100°/s |
Aircraft - Camera
| Image Sensor | Wide-Angle Camera: 1/0.98-inch CMOS, Effective Pixels: 50 MP Medium Tele Camera: 1/1.28-inch CMOS, Effective Pixels: 50 MP Tele Camera: 1/1.5-inch CMOS, Effective Pixels: 50 MP |
|---|---|
| Lens | Wide-Angle Camera FOV: 85.7° Format Equivalent: 23.5 mm Aperture: f/1.8 Focus: 0.6 m to ∞ Medium Tele Camera FOV: 35° Format Equivalent: 70 mm Aperture: f/2.88 Focus: 3 m to ∞ Tele Camera FOV: 9.7° Format Equivalent: 252 mm Aperture: f/2.8 Focus: 5 m to ∞ |
| Lens Defogging | Wide-angle, medium tele, and tele cameras all support lens defogging. |
| ISO Range | Normal Mode: ISO 100 to ISO 25600 Night Scene Mode: Wide-Angle Camera: ISO 100 to ISO 1638400 Medium Tele Camera: ISO 100 to ISO 1638400 Tele Camera: ISO 100 to ISO 1638400 |
| Shutter Speed | Wide-Angle Camera: 2-1/8000 s Medium Tele Camera: 2-1/8000 s Tele Camera: 2-1/8000 s |
| Max Image Size | Wide-Angle Camera: 8192×6144 Medium Tele Camera: 8192×6144 Tele Camera: 8192×6144 |
| Minimum Photo Interval | 0.5 s |
| Still Photography Modes | Wide-Angle Camera: Single: 12 MP / 50 MP Timed: 12 MP / 50 MP JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s Smart Capture: 12 MP Panorama: Approx. 110 MP (stitched image) Medium Tele Camera: Single: 12 MP / 50 MP Timed: 12 MP / 50 MP JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s Smart Capture: 12 MP Tele Camera: Single: 12 MP / 50 MP Timed: 12 MP / 50 MP JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s Smart Capture: 12 MP |
| Video Codec and Resolution | Video Codec: H.265 Encoding Strategy: CBR, VBR Resolution: 4K: 3840×2160@30fps FHD: 1920×1080@30fps |
| Video Bitrate | H.265: 40 Mbps |
| Supported File System | exFAT |
| Photo Format | JPEG |
| Video Format | MP4, TS |
| Digital Zoom | Tele Camera: 16× (176× hybrid zoom) |
Aircraft - NIR Auxiliary Light
| Infrared Illumination | FOV: 5.2° to 6.6° |
|---|
Aircraft - Laser Module
| Laser Rangefinding | Normal Incidence Range: 3000 m (1 Hz, @25% reflectivity target*, 8000 m visibility) Oblique Incidence Range: 1200 m (1 Hz, 1:10 Oblique Distance) Blind Zone: 1 m Ranging Accuracy: (@ 20%-90% reflectivity, 1-10 Hz) Systematic Error: Within 12 m: < 0.1 m 12 m to 100 m: < 0.3 m 100 m to 3000 m: < 1 m Random Error: < 0.1 m (1σ) Safety Classification: Class 1 (IEC 60825-1:2014) * Performance degradation may occur in rainy or foggy conditions. |
|---|
Aircraft - Infrared Thermal Camera (DJI Matrice 5TD)
| Thermal Imager | Uncooled VOx Microbolometer DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or a laser beam. Otherwise, the camera sensor may be burned, leading to permanent damage. |
|---|---|
| Resolution | 1280×1024 |
| Pixel Pitch | 8 μm |
| Frame Rate | 30 Hz |
| Lens | DFOV: 45° Format Equivalent: 53 mm Aperture: f/0.85 Focus: 10 m to ∞ |
| Sensitivity | ≤ 50 mK@f/1.0, at an ambient temperature of 25° C (77° F) |
| Temperature Measurement Method | Spot Measurement, Area Measurement |
| Temperature Measurement Range | High Gain Mode: -40° to 150° C (-40° to 302° F) Low Gain Mode: 0° to 550° C (32° to 1022° F) |
| Visible-Thermal Fusion | Supported |
| Palette | White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fusion/Rainbow 1/Rainbow 2 |
| Photo Format | JPEG (8-bit) R-JPEG (16-bit) DLT-664 |
| Video Resolution | UHR Infrared Image Mode: 2560×2048@30fps Normal Mode: 1280×1024@30fps |
| Video Bitrate | 12 Mbps (H.265, 1280×1024@30fps) 24 Mbps (H.265, 2560×2048@30fps) |
| Video Format | MP4 |
| Still Photography Modes | Single Normal Mode: 1280×1024 UHR Infrared Image Mode: 2560×2048 Timed Normal Mode: 1280×1024, 0.7/1/2/3/5/7/10/15/20/30/60 s UHR Infrared Image Mode: 2560×2048, 0.7/1/2/3/5/7/10/15/20/30/60 s |
| Digital Zoom | 32× |
| Infrared Wavelength | 8-14 μm |
| Infrared Temperature Measurement Accuracy | High Gain: ±2° C or ±2%, whichever is greater Low Gain: ±5° C or ±3%, whichever is greater |
| Temperature Alert | Supported |
| Sun Burn Protection | Supported |
O4 Ground Station specifications
O4 Ground Station - General
| Dimensions | 170×170×352 mm |
|---|---|
| Weight | 2.68 kg |
| Operating Temperature | Direct connection to DJI Dock power supply: -40° to 55° C (-40° to 131° F) The 55° C (131° F) upper limit accounts for solar radiation. At -40° C (-40° F), the device requires a windless environment; auto-restart after shutdown is not supported in windy conditions. After storage or operation in extreme temperatures, allow the internal backup battery to return to between 0° and 45° C (32° and 113° F) before charging. |
| PoE Auto Wake-Up | When connected to the DJI Dock 4 PoE port, the device automatically wakes up when plugged in or when power is restored. |
| Cold-Weather Heating Startup | Supported |
| Ingress Protection Rating | IP67 Please follow the requirements stated in the IP67 protection rating instructions. Measured in a controlled environment. The IP rating is not permanently effective and may decrease due to product wear and tear. |
O4 Ground Station - GNSS Receiver
| GNSS Frequency | GPS: L1C/A, L2C, L5 BDS: B1I, B2I, B3I, B1C, B2a, B2b GALILEO: E1, E5a, E5b, E6 GLONASS: L1, L2 QZSS: L1C/A, L2C, L5 L-Band |
|---|---|
| System Accuracy | Horizontal: 1.0 cm (RMS) + 1 ppm Vertical: 3.0 cm (RMS) + 1 ppm RTK calibration is required. Measurement accuracy depends on various factors. This value is obtained under normal conditions with an unobstructed view, good satellite distribution, low ionospheric activity, and no electromagnetic interference or multipath effects. |
O4 Ground Station - Video Transmission
| Video Transmission | DJI O4 Enterprise Enhanced Video Transmission System |
|---|---|
| Operating Frequency and Transmitter Power (EIRP) | 902 MHz to 928 MHz: < 30 dBm (IC), < 16 dBm (MIC) 2.400 GHz to 2.4835 GHz: < 33 dBm (IC), < 20 dBm (CE/SRRC/MIC) 5.150 GHz to 5.250 GHz: < 21 dBm (IC) 5.170 GHz to 5.250 GHz: < 23 dBm (CE) 5.725 GHz to 5.850 GHz: < 33 dBm (IC), < 14 dBm (CE), < 30 dBm (SRRC) Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information. |
| Antenna | OcuSync 4 Pro external directional antenna × 4 OcuSync 4 Pro internal directional antenna × 8 2.4G/5.2G/5.8G: 2T4R sub2G: 2T2R 4G Antenna × 2 Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information. |
| Network Access | Ethernet Access: Adaptive Ethernet port; Gigabit network is recommended, with both uplink and downlink bandwidth > 20 Mbps, preferably > 40 Mbps (when no other peripherals are connected), and network latency ≤ 100 ms for a better user experience* 4G Access: Requires the DJI Cellular Dongle 2** * If these requirements are not met, the device may go offline or experience video stuttering. |
O4 Ground Station - Electrical Properties
| Power Interface | Ethernet Port (PoE) WAN: PoE-in LAN: PoE-in |
|---|---|
| Ethernet Cable Requirements | Cat 6 or above outdoor-rated, waterproof twisted-pair cable; max length 80 m; outer diameter 5.5 to 6.5 mm To reduce the risk of waterproofing failure and other reliability issues, use the Ethernet cable included with the DJI Dock for cable runs of less than 5 m from the Dock. |
| Power Consumption* | With DJI Dock 4: Max Power Consumption (Including Heating): 65 W Typical Power Consumption (Without Heating): 17.1 W Low-Power Mode: 7 W** * Measured in a controlled test environment and should be used for reference only. Actual power draw may be higher when accounting for losses in the power supply. |
| Backup Battery | Li-ion Capacity: 3250 mAh Energy: 23.4 Wh |
| Backup Battery Operating Time (at room temperature) | Battery preservation mode is enabled by default when powered via PoE. In the event of a sudden power loss, estimated runtime is 45 minutes. Battery preservation mode: when powered via PoE, the system keeps battery voltage between 7.0 V and 7.4 V. If the battery voltage at insertion exceeds 7.5 V, the system will discharge it to the safe threshold before entering preservation mode; the battery will not charge to full capacity. |
| Backup Battery Charging | Supports 9V or 12V PD charging. DJI 65W Portable Charger is recommended before deployment. When fully charged, estimated runtime is approx. 2 hours. Charge time (65W PD): approx. 2.5 hours Charging with a 5V charger is only supported when the device is powered off. |
| Ethernet Port Surge Protection | WAN/LAN Ports: Ethernet interface supports up to 10 kA (total discharge current) surge protection, meeting EN/IEC 61643-21 Category C. Surge protection capability depends on the capacity and reliability of grounding. To minimize the risk of surges, please make sure that grounding is done properly during installation. |
O4 Ground Station - Supported Software
| Supported Software | DJI Enterprise App (for on-site setup, testing, remote operations, live viewing, and one-tap drone dispatch) |
|---|---|
| Cloud Platform | FlightHub 2 FlightHub 2 On-Premises Version FlightHub 2 FlightHub Sync Third-party cloud platform developed based on DJI Cloud API |
| External Device Support | Supports cameras using ONVIF and GB/T 28181 protocols Supports up to 4 simultaneous 1080p H.264 video streams The camera and the WAN port of the DJI O4 Ground Station must be connected to the same upstream switch. For details, see the DJI O4 Ground Station - IP Camera Configuration Guide. |
| Open Ecosystem | ESDK 2.0 |
Performance figures are DJI laboratory measurements. Actual results depend on the environment, payload, configuration, software, and firmware. Follow the product manual and accessory instructions.
Explore DJI Enterprise accessories for supporting equipment.
Product identification
MAT5TD-O4-CB
| DJI part number | CB.202608035106 |
|---|---|
| Configuration | DJI Matrice 5TD Combo (Overseas Edition With O4 Ground Station (NA)) SP Plus |
MAT5TD-O4-AP1-CB
| DJI part number | CB.202608035100 |
|---|---|
| Configuration | DJI Matrice 5TD Combo (Overseas Edition With O4 Ground Station and AP1 Parachute (NA)) SP Plus |
Contact SpeedyDrone Canada for pricing, availability, and help selecting a complete configuration.
SpeedyDrone Canada · Toronto
Choose your Matrice 5TD combo with SpeedyDrone Canada
SpeedyDrone Canada is a DJI and technology retailer based in Toronto, Ontario. Our team helps Canadian customers compare products, discuss purchase requirements and arrange eligible showroom pickup.
Toronto, ON M5S 3C4647-629-8799 ·
sales@speedydrone.ca
Configuration and purchasing guidance
Ask our team to compare MAT5TD-O4-CB and MAT5TD-O4-AP1-CB around your AP1 requirement, planned payloads and existing Dock 4 equipment. Confirm the battery quantity, mounts and software scope in the quote. State the selected combo SKU in your enquiry so the requested configuration is explicit.
Toronto pickup and Canadian delivery
The Toronto showroom offers product guidance and pickup for eligible in-stock orders. Contact the team first about the selected Matrice 5TD combo; an online listing does not confirm a display unit or immediate pickup. For Canadian delivery, provide your postal code and required timeline for a confirmed shipping quotation. Check our Toronto showroom details and shipping information.
Order follow-up and service enquiries
SpeedyDrone can coordinate repair intake and forwarding to a repair partner. Repair work is performed by the partner; the specific equipment, acceptance, quotation and timing must be confirmed in writing before delivery to the store. See the repair-intake policy. Include any site installation, commissioning or training needs in your enquiry and request a confirmed service scope.
Frequently asked questions
What is the difference between the two combos?
Both include the O4 Ground Station. The AP1 configuration also has the parachute pre-installed and includes the specified parachute and connection-cable screws.
Is a handheld remote controller included?
A handheld remote controller is not included in either listed combo.
Does the 59-minute figure describe normal mission endurance?
It is a maximum laboratory measurement without payload, in a windless environment, flying at 15 m/s from full charge to 0%. Actual operational flight time varies.
Can I fly Matrice 5TD manually using a remote controller?
No. DJI explicitly states that Matrice 5TD does not support manual flight using a remote controller. Confirm the Dock-operated workflow before ordering. See the official Aircraft FAQ.
Is this combo a complete Dock 4 installation?
No. Both variants include the O4 Ground Station, but Dock 4 is a separate listing. Confirm flight batteries, installation, network access and software scope in the quotation. See DJI Dock 4 and the official system topology.
Can the AP1 parachute be reused after deployment?
No. DJI requires replacement of the deployed parachute system. Its manual also calls for regular inspection at least every six months. Include these lifecycle requirements when choosing the AP1 combo. See the AP1 post-deployment and inspection instructions.
Can I assume 4G and every sensing feature are available in Canada?
Confirm the exact deployment first. DJI makes aircraft 4G availability and supported radio bands region-dependent, and warns that mmWave radar can be restricted or unavailable in some regions. Verify Canadian support, the carrier and local coverage before relying on these functions. See DJI regional availability notes and aircraft sensing and transmission specifications.
Can I discuss the Matrice 5TD combos with SpeedyDrone in Toronto?
Yes. Contact the team at the 991B Bay Street showroom in Toronto to discuss your requirements. Specify MAT5TD-O4-CB or MAT5TD-O4-AP1-CB, and confirm stock, display availability and eligible pickup before visiting. See our Toronto showroom guide.
Does SpeedyDrone serve Matrice 5TD buyers elsewhere in Canada?
Yes. Canadian buyers can request combo-selection and purchasing guidance remotely. Include the selected SKU, payloads and destination postal code so availability and shipping can be confirmed. The shipping policy provides the general delivery terms.
What after-purchase support can I request for Matrice 5TD?
Contact SpeedyDrone for order follow-up, product questions and service enquiries. Repair intake needs a written arrangement, with repair work performed by a partner. Confirm any commissioning, operator training or ongoing support scope separately. See our repair-intake policy before bringing or shipping equipment.
Official DJI documentation
- Dock 4 / Matrice 5TD FAQ — aircraft operating model, AP1 and regional feature conditions.
- Aircraft and O4 Ground Station specifications — imaging, flight tests, sensing and transmission limits.
- Dock 4 / Matrice 5TD User Manual v1.0 (PDF) — aircraft operation, accessory/endurance comparison and AP1 lifecycle.
- Installation and Setup Manual v1.0 (PDF) — site assessment, power, network and system commissioning.
- FlightHub 2 user guide — platform configuration and operating workflows.
- Official downloads and documentation — current manuals and supporting software.
Documentation reviewed October 14, 2026. Check current DJI documentation, firmware and regional notices when finalizing the deployment. Package inclusions follow the selected North American combo; system images and optional-payload illustrations do not add items to the package.
